Feature:
1. The whole abrasive belt is sealed and will not hurt people because of the broken belt.
2. Manual/electric lifting of the Workbench is optional
3. The lifting of the Workbench adopts rack structure, which is wear-resistant and noise-free.
4. Easy and labor-saving operation of precision guide rail
5. The driving wheel adopts toothed rubber wheel to increase the friction coefficient to prevent the abrasive belt from slipping and deviating.
6. When the abrasive belt is stretched, you can adjust the weight hammer to tighten the abrasive belt
2.2kw Triangle Metal Plane Hairline Finishing Machine For Sheet
Manually stainless steel sheet long belt brushing machine is suitable for metal products or surface hairline treatment of metal planes in various industries. It is an excellent surface grinding and polishing equipment. Such as copper plate, aluminum plate, stainless steel plate, chassis, cabinet, radiator metal plate, etc.
Advantages: Metal surface grinding, brushing, pattern sweeping treatment, various metal sheets, metal boxes and other surface brushed treatments, after the workpiece is processed, the surface is clean and smooth, the surface texture is clear, which greatly improves the aesthetics and increases product selling point.

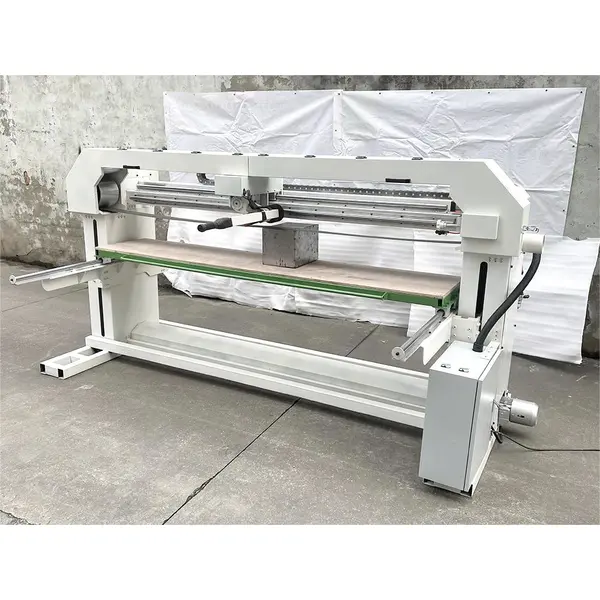

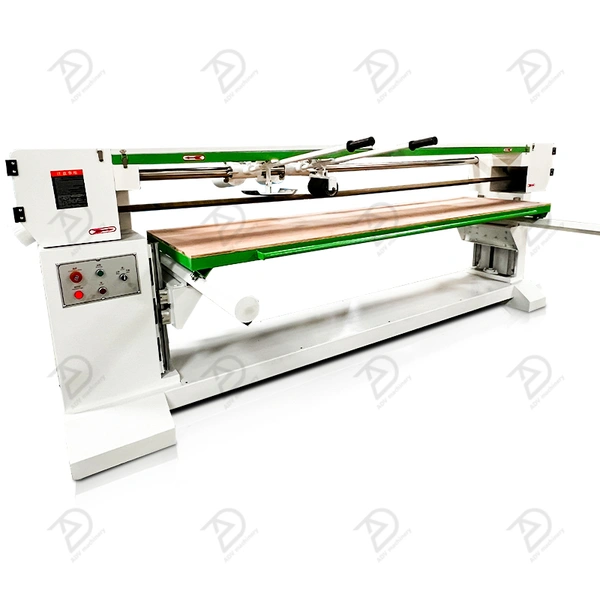

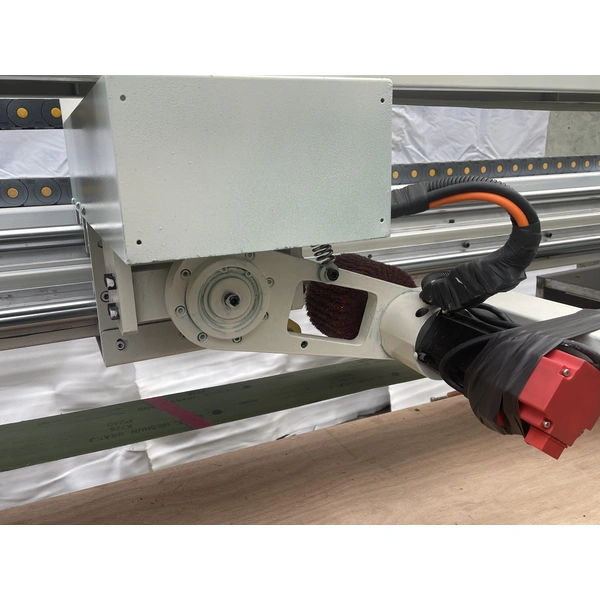

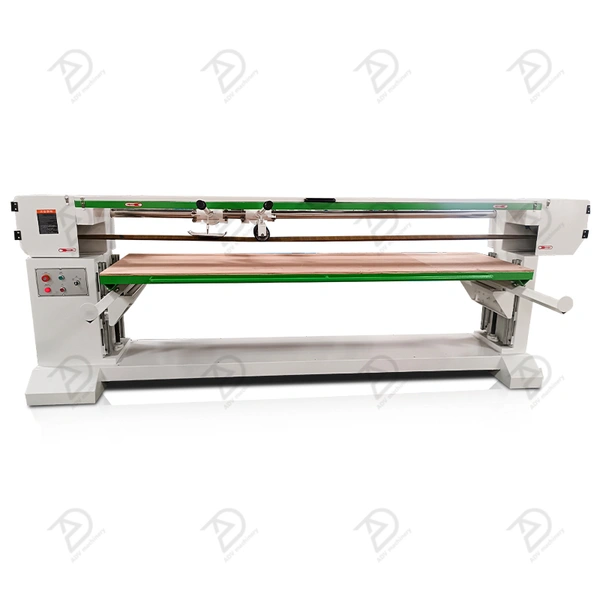

Machine photos
Product Paramenters
Product name | Multifunctional sheet metal, stainless steel box brushed machine |
Belt length | 4800mm | 5950mm | 6850mm |
Belt width | 75-180mm | 75-180mm | 75-180mm |
Working table | 1450*800 mm | 2050*1200 mm | 2500*1200 mm |
Lifting height | 600mm | 320 mm | 320 mm |
Spindle speed | 1700 rpm | 1700 rpm | 1700 rpm |
Belt motor power | 3 kw | 3 kw | 3 kw |
Machine size | 2400*620*2000mm | 3000*620*1700mm | 3400*620*1700mm |
Machine weight | 320 kg | 350 kg | 380 kg |
