Machine Description:

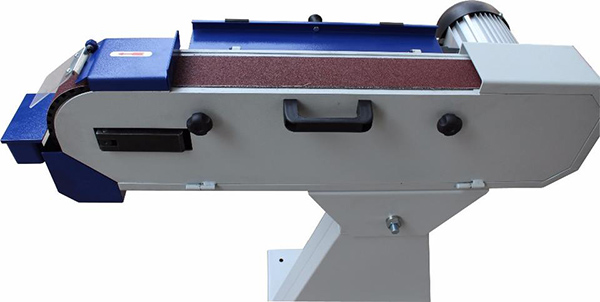

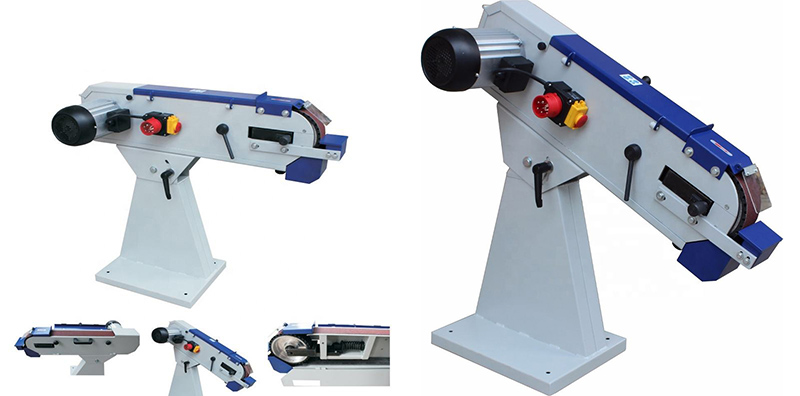

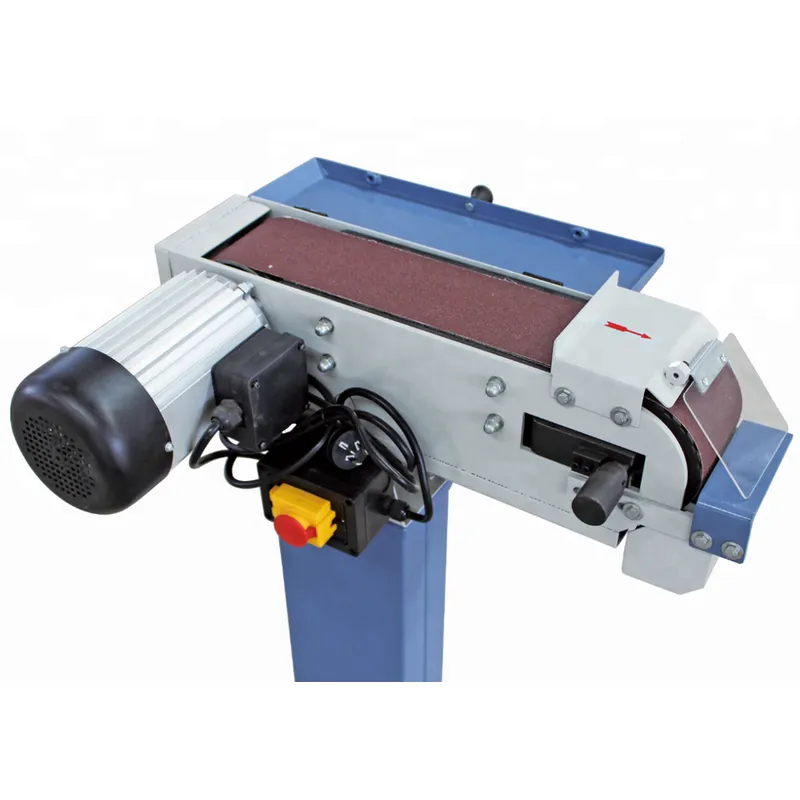

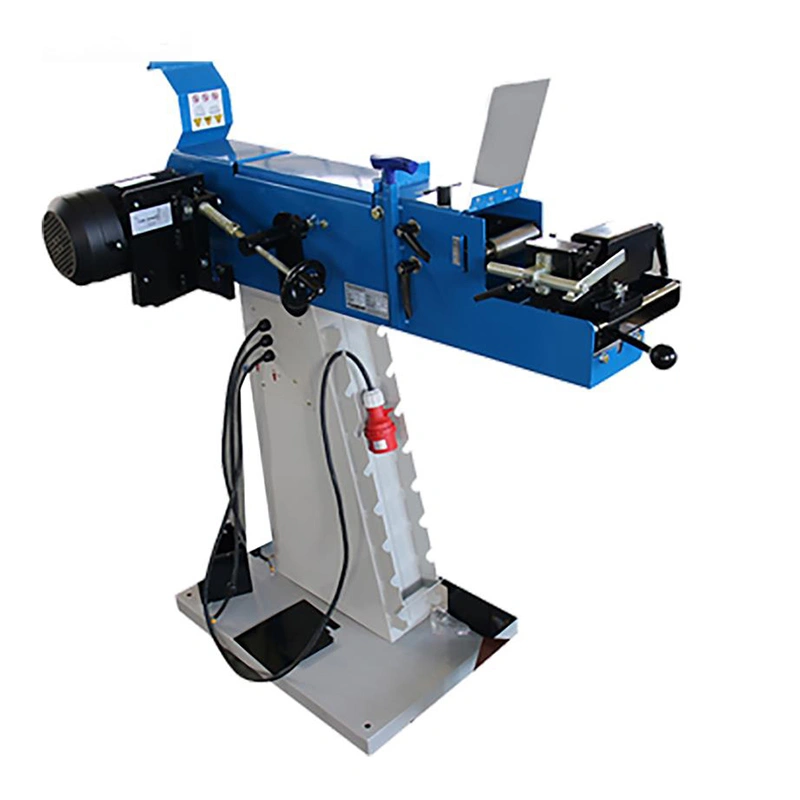

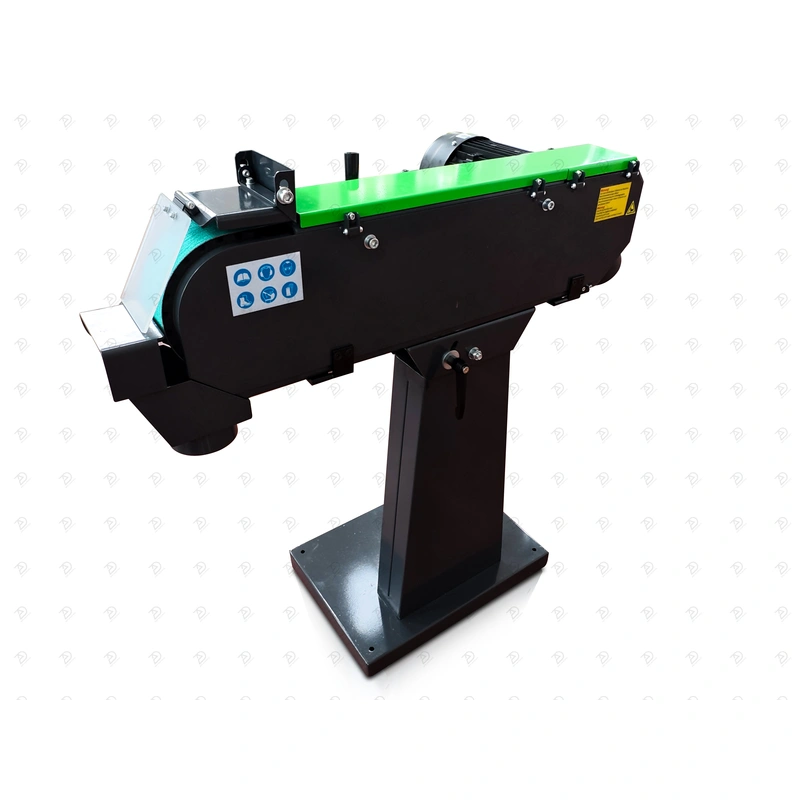

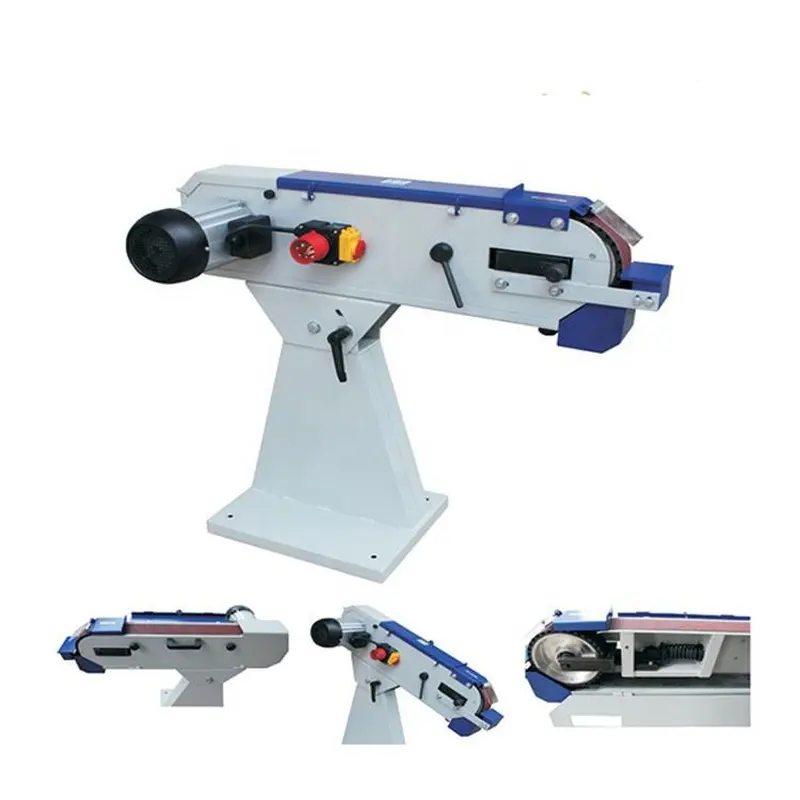

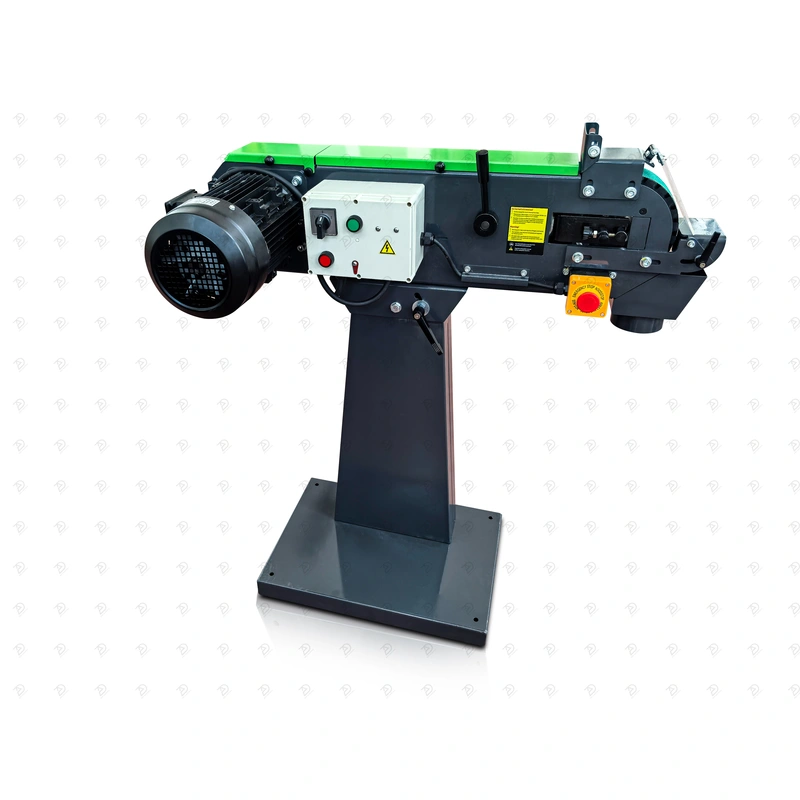

ADV MSM75/100/150 Belt Sander Belt Grinder, Surface Grinding Machine For Metal
Abrasive belt grinder recommended for: Smoothing over burrs on metal, chamfering edges for welding, and finishing castings, among other uses
Machine Parameters:
Machine Parts:

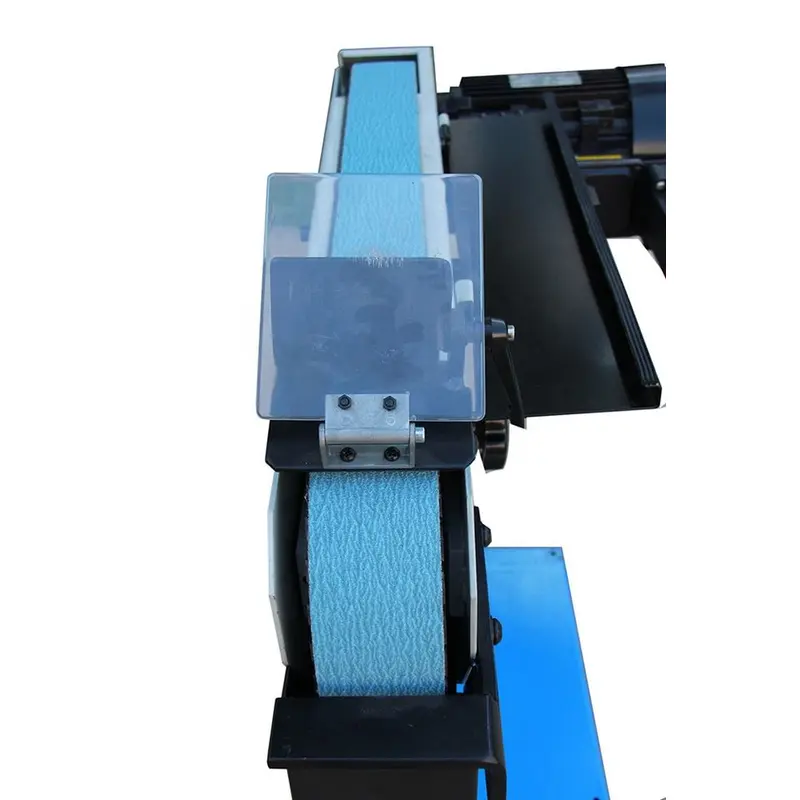

Edge grinding
Turns a standard 75*2000mm abrasive belt at a speed of 30m/sec
Solid billet aluminum drive wheel with simple

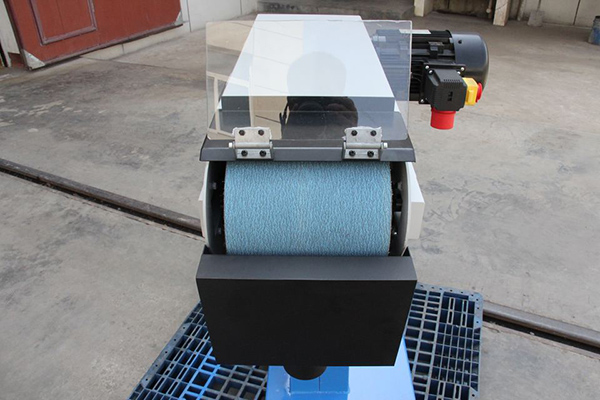

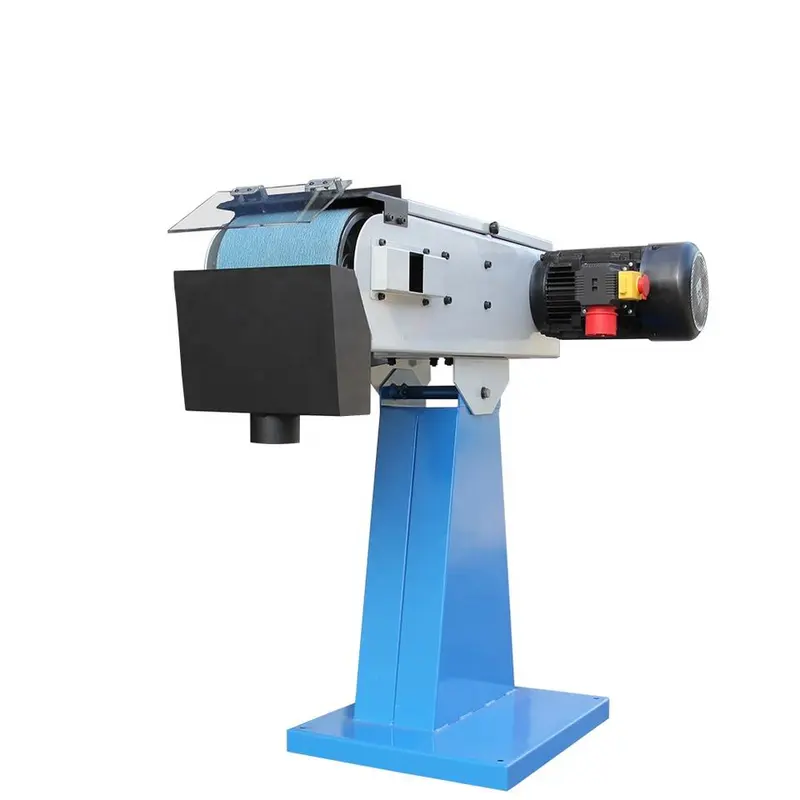

Flat grinding
Top guard opens up to a large flat grinding surface, ideal for castings.

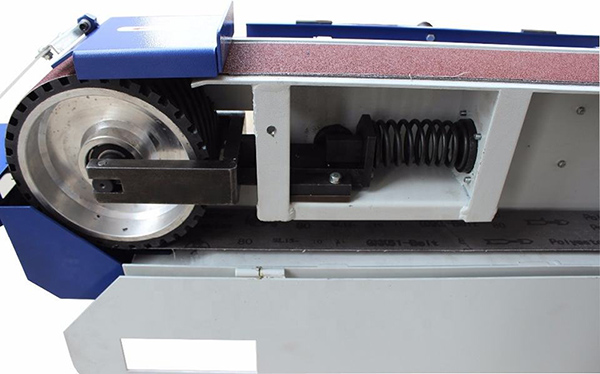

Belt tensioning device
Tracking and tensioning system to extend belt and machine lifespan.

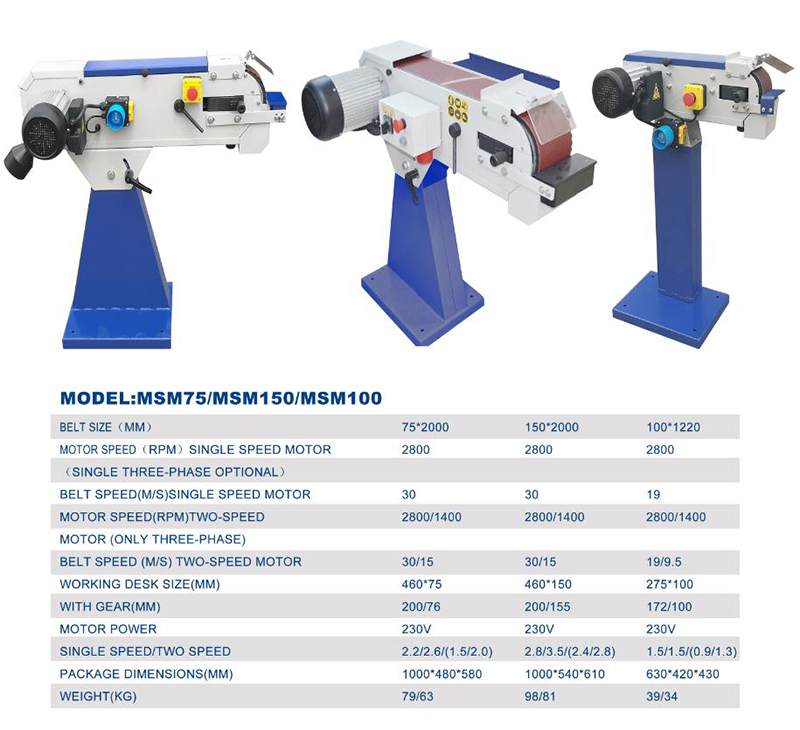

ADV® MSM75 Series
| Parameter | MSM75-200 | MSM75-240 |
|---|
| Belt size (mm) | 75X2000 | 75X2000 |
| Motor speed (rpm) for single speed motor (single phase or three phase) | 2800 | 2800 |
| Belt speed (m/s) for single speed motor | 30 | 36 |
| Motor speed (rpm) for double speed motor (three phase) | 2800/1400 | 2800/1400 |
| Belt speed (m/s) for double speed motor | 30/15 | 36/18 |
| Top work table size (mm) | 500X75 | 500X75 |
| Main Wheel size φ/W (mm) | 200/75 | 240×75 |
| Motor power KW | 2.5/3.3 | 2.5/3.3 |
| Package size (mm) | 1150X520X540 | 1150X520X540 |
| N.W/G.W (KG) | 77/100 | 82/105 |
| Quantity for one 20' container/ 40' container | 88/184 | 88/184 |
ADV® MSM150 Series
| Parameter | MSM150-200 | MSM150-240 |
|---|
| Belt size (mm) | 150X2000 | 150X2000 |
| Motor speed (rpm) for single speed motor (single phase or three phase) | 2800 | 2800 |
| Belt speed (m/s) for single speed motor | 30 | 36 |
| Motor speed (rpm) for double speed motor (three phase) | 2800/1400 | 2800/1400 |
| Belt speed (m/s) for double speed motor | 30/15 | 36/18 |
| Top work table size (mm) | 500X150 | 500X150 |
| Main Wheel size φ/W (mm) | 200/150 | 240×150 |
| Motor power KW | 2.5/3.3 | 2.5/3.3 |
| Package size (mm) | 1150X590X540 | 1150X590X540 |
| N.W/G.W (KG) | 90/114 | 98/122 |
| Quantity for one 20' container/ 40' container | 72/160 | 72/160 |
ADV® MSM100 Series
| Parameter | MSM100-140-1220 | MSM100-140-1500 |
|---|
| Belt size (mm) | 100X1220 | 100X1500 |
| Motor speed (rpm) for single speed motor (single phase or three phase) | 2800 | 2800 |
| Belt speed (m/s) for single speed motor | 20 | 20 |
| Motor speed (rpm) for double speed motor (three phase) | 2800/1400 | 2800/1400 |
| Belt speed (m/s) for double speed motor | 20/10 | 20/10 |
| Top work table size (mm) | 290X100 | 430X100 |
| Main Wheel size φ/W (mm) | 140×100 | 140×100 |
| Motor power KW | 1/1.5 | 1/1.5 |
| Package size (mm) | 750X490X540 | 845X490X540 |
| N.W/G.W (KG) | 45/60 | 52/68 |
| Quantity for one 20' container/ 40' container | 144/288 | 120/220 |
All technical parameters are subject to the information provided by our professional sales staff. If you are interested in the machine, please contact us immediately. Thank you.
