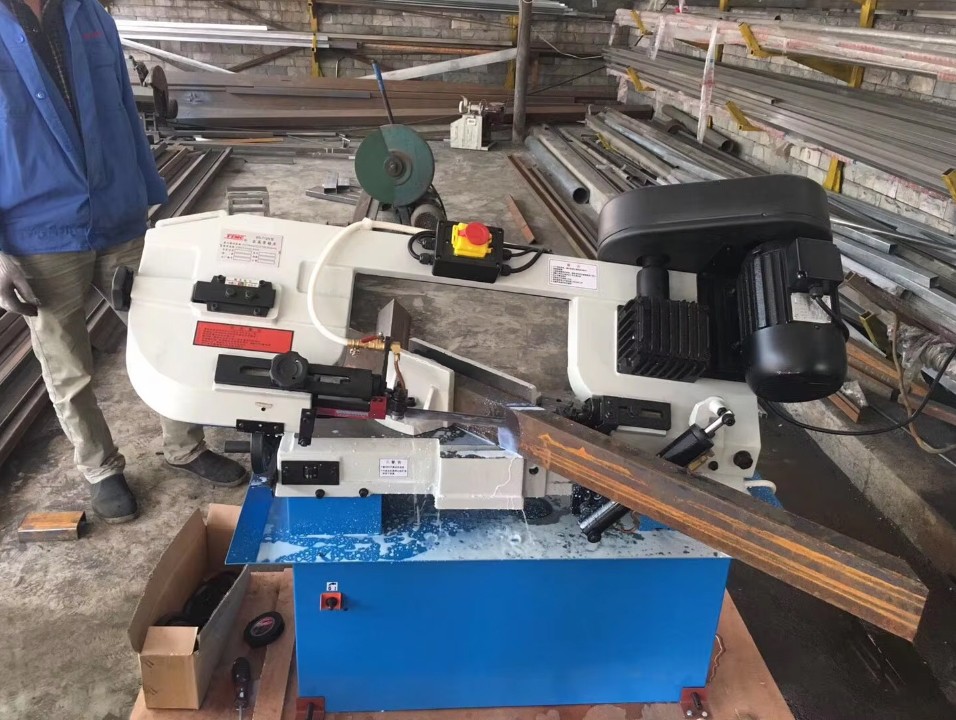

Horizontal angle cut 45 degree metal cutting band saw machine bandsaw equipment for sale-ADV 712N

1.  Maximum capability 7"
2.  The belt gear of it has four cutting speeds
3.  The quick clamps can be rotated from 0° to 45°
4. Can be used both vertically and horizontally
5.  High-capacity due to controlled by motor
6.  The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
7.  Has a sizing device (the machine will automatically stop after sawing materials)
8.  With power break protection device, machine will power off automatically when the rear protective cover is opened
9.  With cooling system, can prolong the service life of saw blade and improve the precision of work piece
10.  Equipped with a block feeder (with fixed sawing length)

inquiry
tag:

Description

ADV 712N / 712R Horizontal Band Saw Machines

Machine Parameters
No
Item
Specification

1
Model
ADV 712N

2
Capacity
Circular @90°
178mm(7”)

3
Rectangular @90°
178*305mm (7”x12”)

4
Circular @45°
127mm(5”)

5
Rectangular @45°
120x125mm (4.75”x4.88”)

6
Blade speed
22,34,49,64MPM

7
Blade size
19x0.9x2362mm

8
Packing size
1250*510*1140 mm
9
Machine weight
140 kg

For more solutions,please contact us.

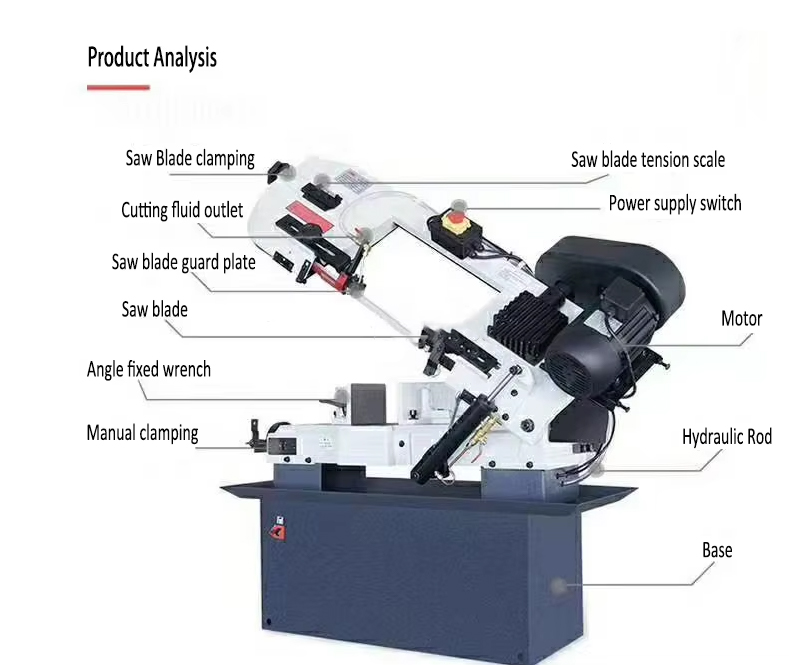

Machine Parts

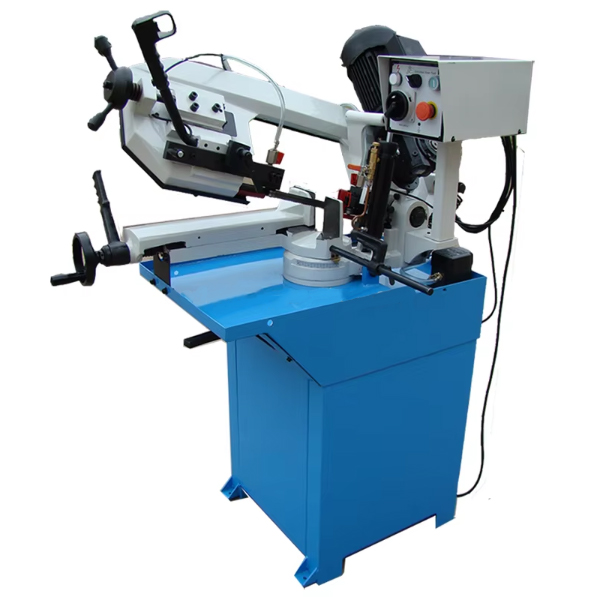

ADV 170G
We adjusted machines well before we deliver. When customers receive them, you can work with them directly.

Maximum capability: 170mm(6.7”)
ADV 280G:
Machine Application
Round bar, channel, round tube, square tube, flat steel, I-beam, etc.

We Support FREE Testing Samples for Customers

About machine style, we have different machine style, if you have any other requirements, we also support, customize your own solutions
send inquiry to us
