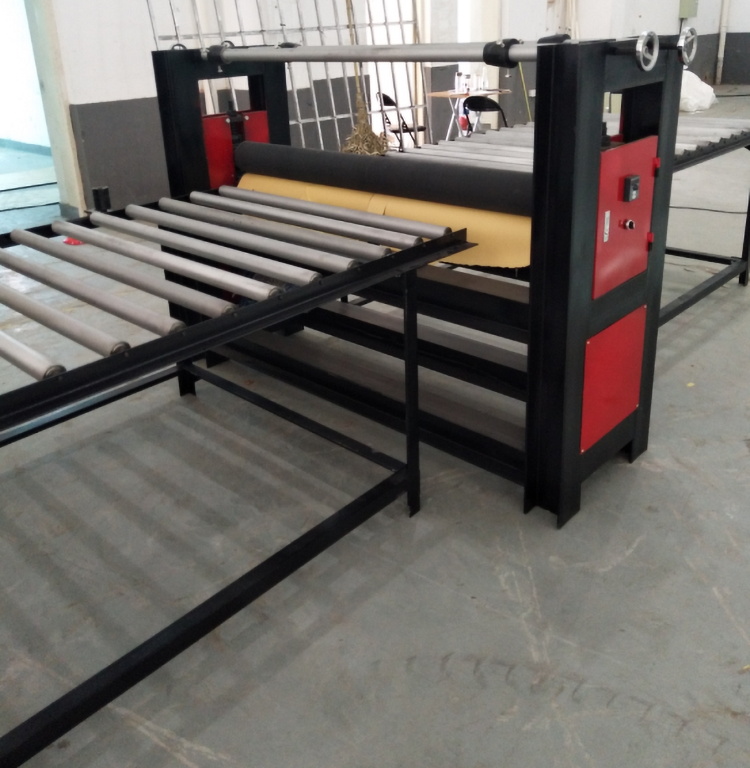

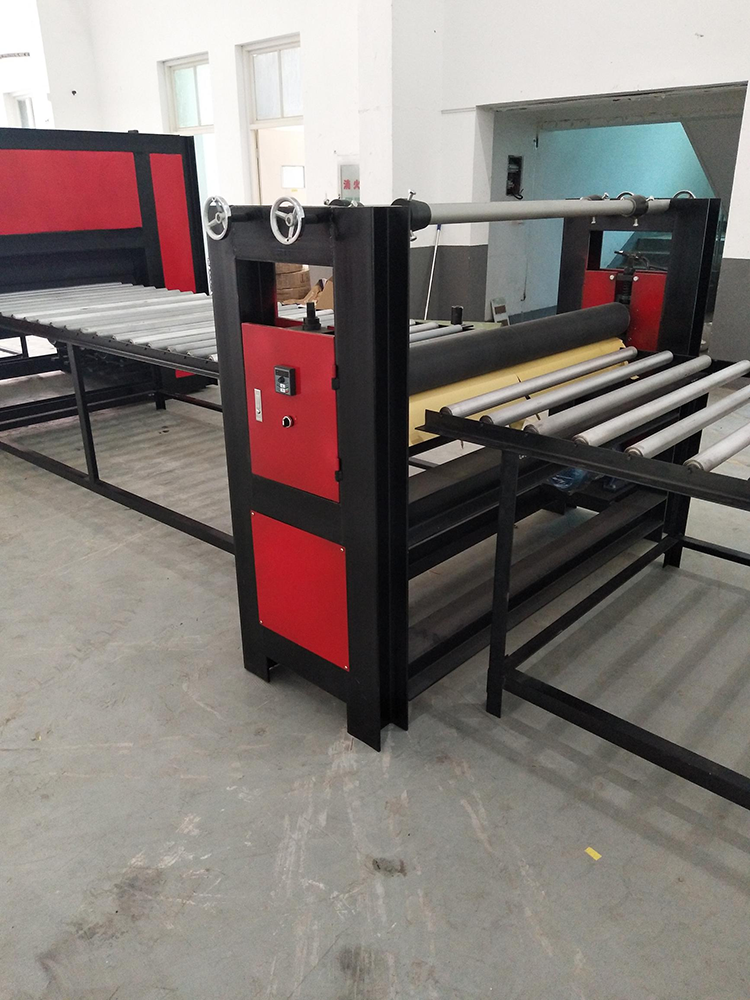

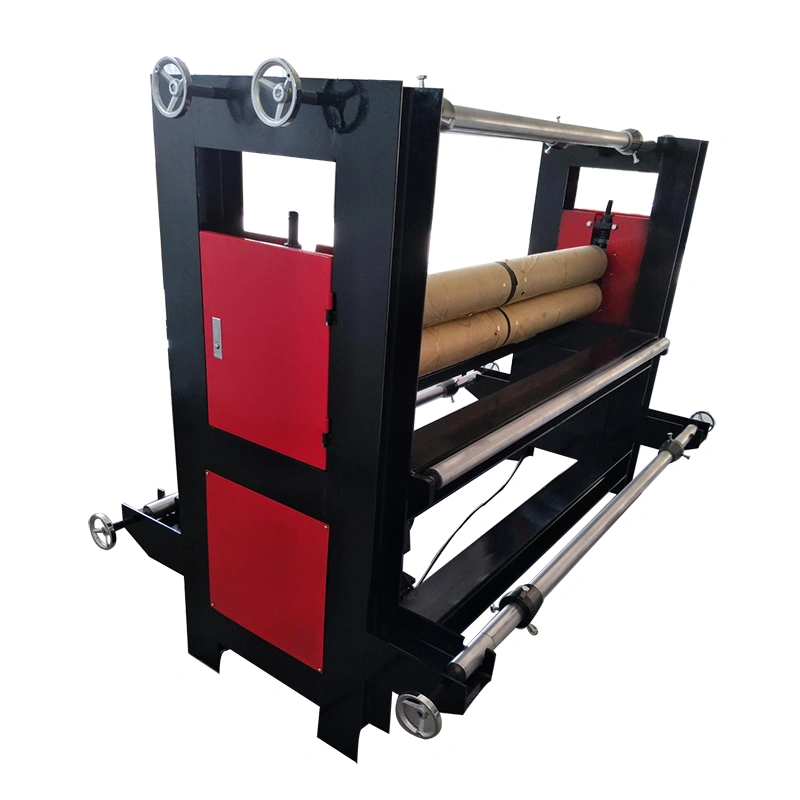

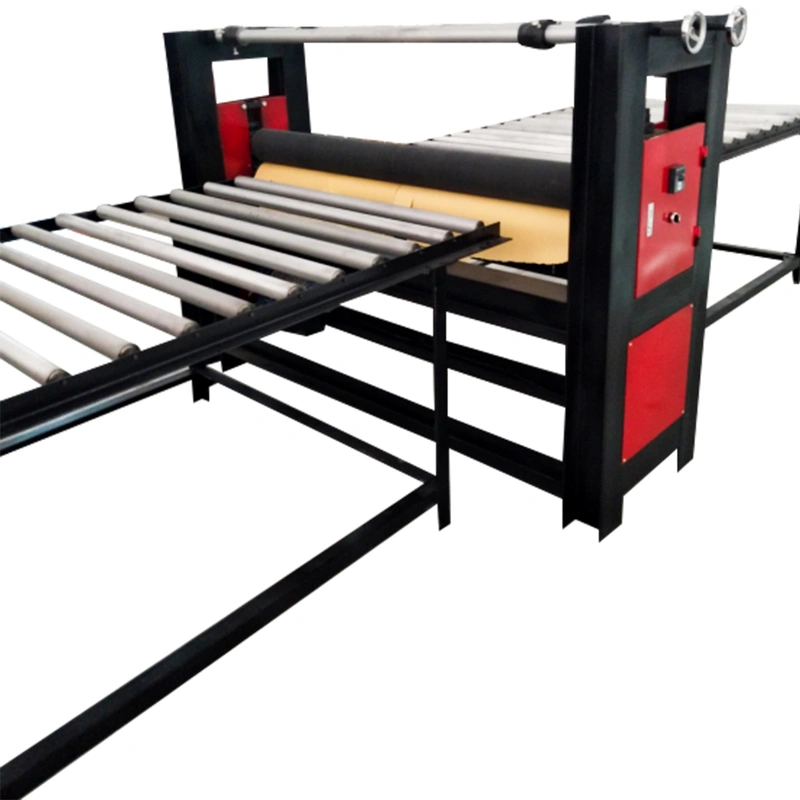

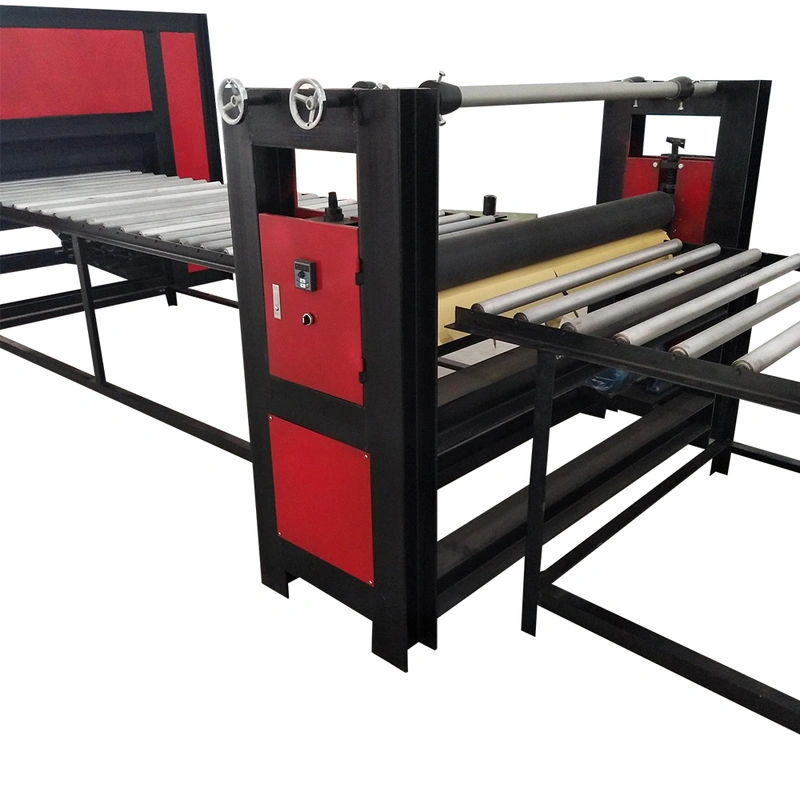

Multifunctional semi-automatic laminating machine for sheet metal
Machine parameters:
Product name | Multifunctional sheet semi-automatic laminating machine |
Voltage/power | 380V 1.5KW |
Packaging material | plastic, metal, Glass,wood |
Packaging Type | Film |
Running speed | 0-25 m/min |
Processing board width | 800-3500 mm |
Processing board thickness | 0.5-3.0 mm |
unpowered material rack length*2 | 2500*2mm |
Upper and lower rubber roller diamete | 135 mm |
Number of rubber roller | 2 |
Product description:
Equipment description：
1.Used to coat flat metal plates (aluminum, copper, stainless steel, etc.), glass, MDF plates, wood board and other materials.The laminating machines are designed to cover with a plastic film on a finished surface in order to protect it from dust, scratches and damages that can occur during handling and forming operations.2.The main steel structure (125×125H steel), coated with epoxy zinc-rich anti-corrosion.
3.One set of rubber rollers: length 1310mm/1610mm, diameter 135mm, covered with nitrile rubber. Motor: 1.5KW.
Our Advantages:
Equipment advantages：
1. After the machine is loaded, the distance between the two materials is automatically adjusted;
2. Cutting device, adjustable speed, easy blade replacement;
3. The equipment is suitable for single-sided and double-layer filming of the sheet, and it is automatically cut;
4. Precise induction, cutting accuracy of ±1mm.
5.intelligent control system,interactive man-machine interface
6. Reverse function before and after laminating
7. Low noise operation, high sensitivity
8. All parts of the machinery adopt the products of famous and excellent manufacturers
9. Can work in cold and low temperature conditions
