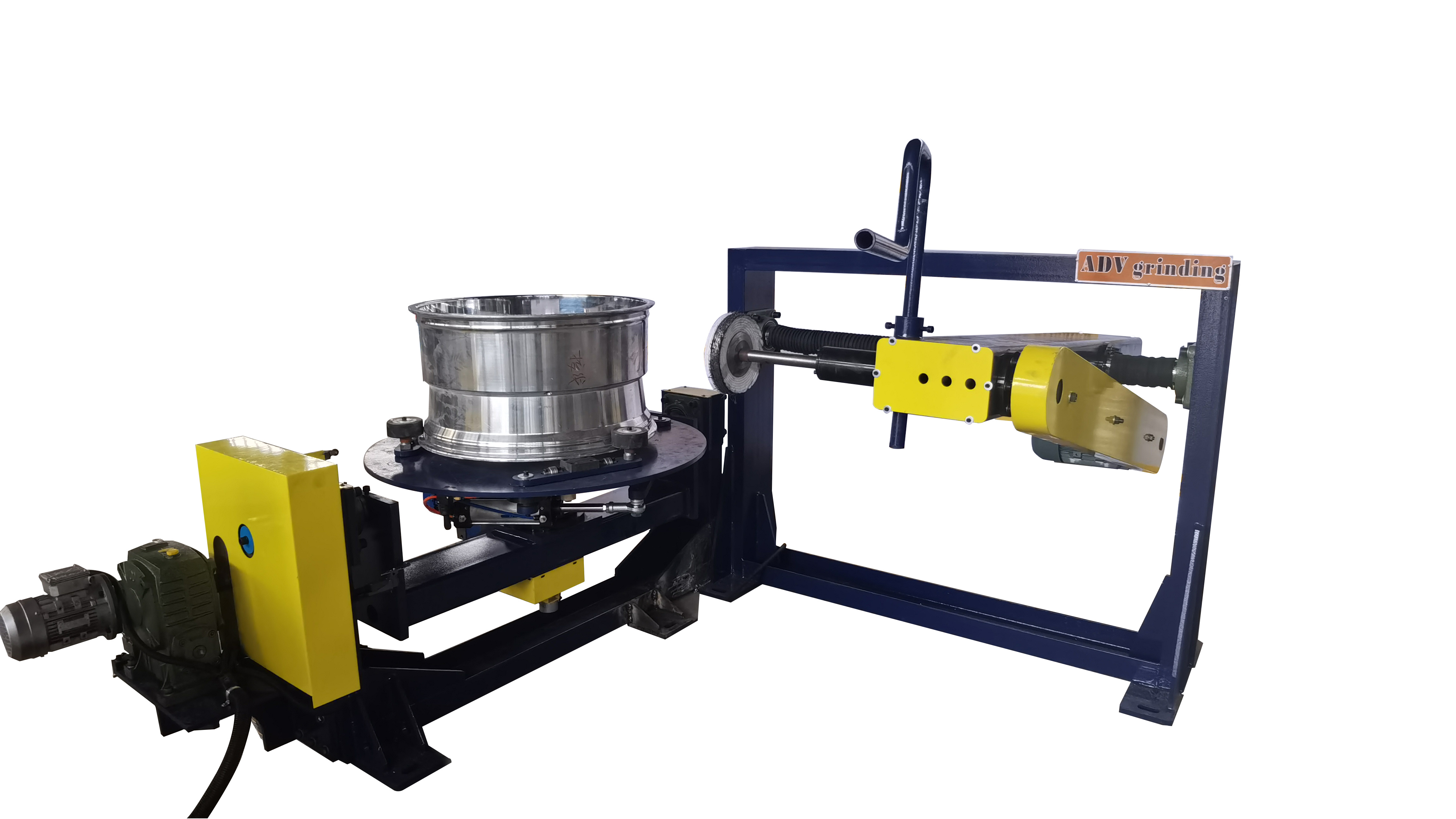

The ADV-408 Alloy Wheel Polishing Machine

2024-01-05 10:59:21

  adv-408 (2).jpg



Introduction:

The ADV-408, featuring a potent 4kW polishing grinding head, is a testament to the mastery of gloss enhancement. Designed exclusively for aluminum alloy wheel rims, this machine introduces a new standard of brilliance, setting it apart in the realm of automotive aesthetics.



Gloss Enhancement Prowess:

1. *Turntable Brilliance:* The heart of the ADV-408 lies in its turntable, offering variable rotation speeds precisely controlled by the speed controller driver. Ranging from a gentle 1 RPM to a robust 30 RPM, this dynamic feature ensures a superior polishing process.



2. *Bidirectional Polishing Power:* The 4kW polishing grinding head takes center stage, allowing for both forward and reverse rotations. This bidirectional capability is the secret behind achieving a level of gloss that surpasses conventional polishing methods.



3. *Compact Robustness:* Structurally, the machine is a marvel, combining hosts, a standard polishing head, an electric control system, a pneumatic system, and a rotating table. With dimensions of 2200*1800*1600 mm and a weight of 700 kg, the ADV-408 strikes a harmonious balance between portability and robustness.



Technical Ingenuity:

Delving into technical specifications, the machine's capabilities are highlighted with key details:

- Buffing Wheel Motor Power: 4kW

- Rim Diameter Range: 12"-32"

- Buffing Wheel Size: 300*50*32 mm

- Rotating Table Motor Power: 0.75 kW

- Turning Over Motor Power: 0.75 kW

- Gas Source: 0.6 m³/h; 0.4 ~ 0.6Mpa; Pipe: 8*5mm



Application Excellence:

Crafted for aluminum truck and car wheel rims, the ADV-408 finds resonance across various industries:

- *Truck Dealers:* Elevate vehicle resale value and cultivate customer loyalty.

- *Fleets:* Enhance fleet safety, instill pride, and reduce wheel-end maintenance costs.

- *Commercial Tire Shops:* Expand service offerings and revenue streams.

- *Retail Shops:* Complement chrome shop sales while optimizing labor costs.



Innovative Operation Dynamics:

The manually controlled grinding head oscillates strategically, augmenting workpiece surface gloss through rotations and turns on the turntable. Power transfer via V-belt propels the polishing wheel to rotate at high speed, achieving a polished finish through continuous adjustments in the workpiece angle. In essence, the ADV-408 stands as the master of gloss, defining a new era in wheel aesthetics with its innovative design and operational dynamics.
