Selecting the appropriate surface finish for nickel alloy and stainless steel tubing is critical for performance, corrosion resistance, and cost-effectiveness in various industrial applications. This comprehensive guide examines the different surface finishes available, their characteristics, applications, and how to choose the right option for your specific needs.
1. Drawn Finish
The drawn finish is the most common surface treatment for stainless steel and nickel alloy tubing. This finish results from the tubing passing through the final die in the manufacturing process. When produced with high-quality dies in good condition, drawn finish tubing exhibits a bright, smooth surface with typical surface roughness values significantly better than 16 Ra (roughness average).
While generally excellent, drawn finishes may occasionally show minor imperfections such as subtle swirl marks from straightening operations. These are typically aesthetic concerns rather than functional defects. However, using worn or poor-quality dies can result in more significant imperfections like die scratches or marks that may compromise performance in critical applications.
2. Centerless Ground Finish
Centerless grinding produces a matte-appearing finish with measurably improved surface smoothness, often achieving surface roughness values below 8 Ra. This process involves removing a small amount of material from the tubing's outer diameter using a grinding wheel, resulting in tighter tolerances and improved surface characteristics.
This finish is typically specified when customers require enhanced surface quality or when application demands necessitate tighter tolerances than achievable with standard drawing processes. The centerless grinding process adds to manufacturing time and cost but delivers superior surface characteristics for demanding applications.

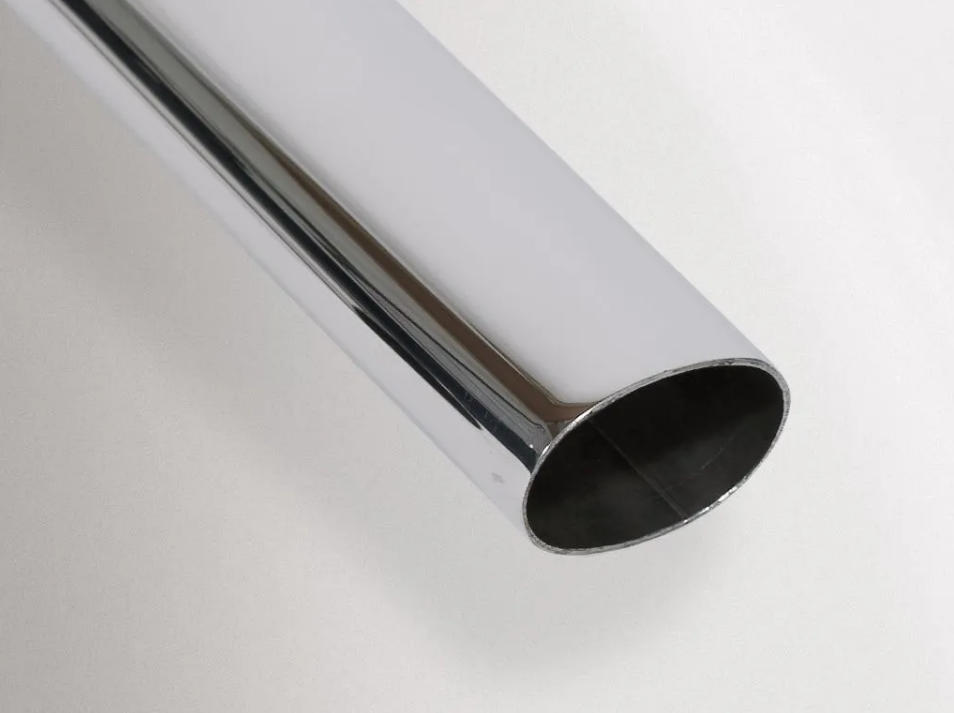

3. Polished Finish
Polished finish tubing represents the premium option among standard surface treatments. Achieved by running tubing through custom-designed polishing machinery, this process yields an exceptionally bright, highly blended, smooth surface. The polishing process is slower than grinding or drawing, contributing to its higher cost.
Polished finishes are essential for applications requiring superior corrosion resistance, ease of cleaning, or where aesthetic appearance is important. The highly refined surface minimizes areas where contaminants might accumulate and provides an excellent base for further finishing processes if required.
Surface Finish Comparison Table
| Finish Type | Surface Roughness (Ra) | Appearance | Relative Cost | Typical Applications |
|---|
| Drawn Finish | <16 μin (0.4 μm) | Bright, smooth | Lowest | General purpose, structural applications |
| Centerless Ground | <8 μin (0.2 μm) | Matte, uniform | Medium | Hydraulic systems, precision instrumentation |
| Polished Finish | <4 μin (0.1 μm) | Very bright, highly reflective | Highest | Food processing, pharmaceutical, semiconductor |
Additional Finishing Options
Beyond these three primary finishes, specialized processes are available for stainless steel tubular fabricated parts:
Electropolishing: An electrochemical process that removes surface material, resulting in a microscopically smooth surface with enhanced corrosion resistance and deburring.
Passivation: A chemical treatment that removes free iron from the surface while promoting the formation of a protective oxide layer.
Bead Blasting: Creates a uniform matte surface finish using fine glass beads propelled at high velocity.
Applications and Industry Considerations
Industry-Specific Requirements
Medical and Pharmaceutical: These industries typically require polished or electropolished finishes to meet strict hygienic standards and facilitate cleaning and sterilization.
Food and Beverage: Similar to medical applications, food processing requires smooth, non-porous surfaces that resist bacterial growth and are easy to clean.
Semiconductor: Ultra-clean surfaces with specific roughness values are critical to prevent contamination in sensitive manufacturing environments.
Hydraulic Systems: Centerless ground finishes provide the precise tolerances and surface characteristics needed for reliable seal performance in hydraulic applications.
Selecting the Right Surface Finish
Choosing the appropriate tubing surface finish requires careful consideration of several factors:
Application Requirements: Consider corrosion resistance, cleanliness, wear characteristics, and pressure requirements.
Compatibility: Ensure the finish is compatible with the media flowing through the tubing and any external environmental factors.
Regulatory Compliance: Certain industries have specific standards for surface finishes that must be met.
Cost Considerations: Balance performance requirements with budget constraints, as more specialized finishes increase costs.
Specification Guidelines
When ordering tubing, clearly specify your surface finish requirements including:
Desired finish type (drawn, ground, polished)
Maximum acceptable surface roughness (Ra value)
Any applicable industry standards or specifications
Special requirements for critical applications
Providing detailed specifications ensures you receive tubing that meets your exact requirements and avoids unnecessary costs for finishes that exceed your application needs.
Key Takeaways
Tubing surface finish significantly affects performance, corrosion resistance, and cost
The three primary finishes are drawn (<16 Ra), centerless ground (<8 Ra), and polished (<4 Ra)
Specialized applications may require additional processes like electropolishing
Always specify finish requirements when requesting quotations to ensure compliance with application needs
Consider both technical requirements and cost when selecting a surface finish
