Revolutionary Deburring Technology

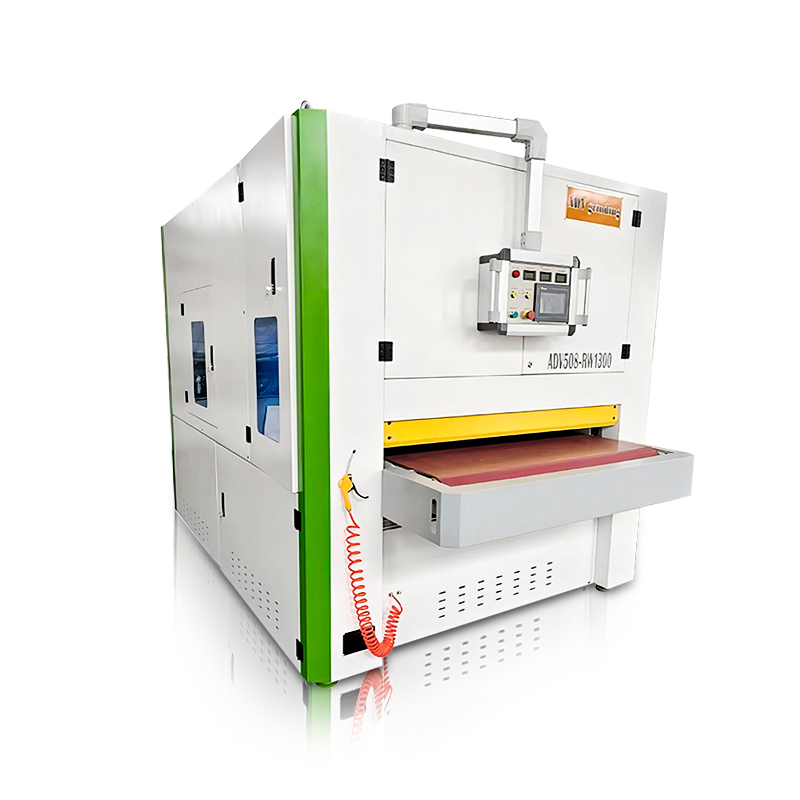

The 508RW Sheetmetal Deburring Machine represents cutting-edge technology in industrial metal finishing. This advanced system eliminates burrs, rounds edges, and delivers exceptional surface finishes on punched and laser-cut sheet metal parts. Engineered for high-volume production environments, it transforms raw cut components into precision-finished products with smooth, hairline surfaces ready for assembly or final use.

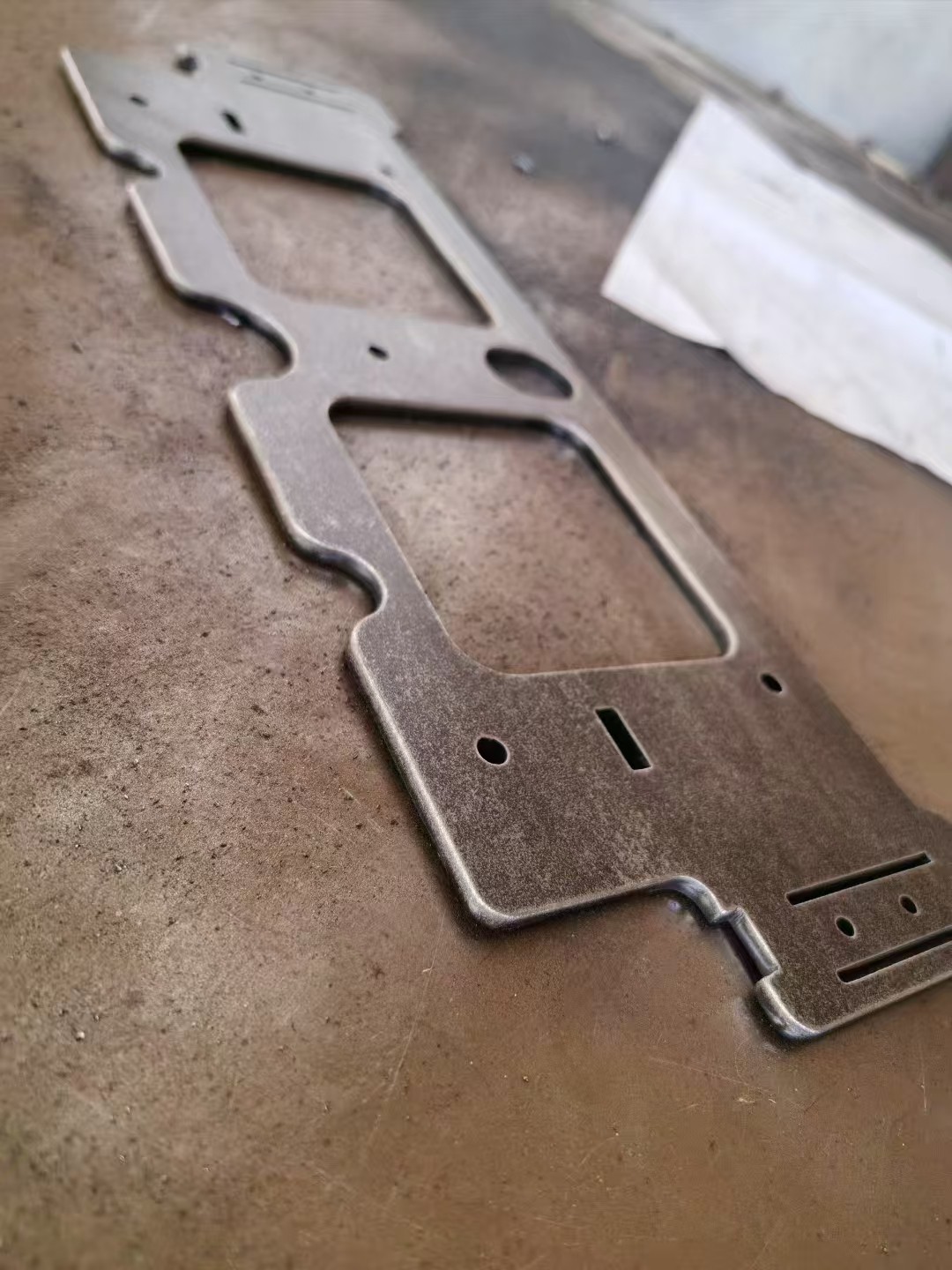

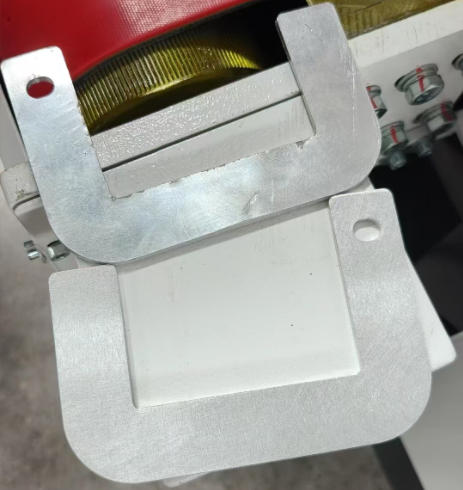

After Deburr and Edge Rounding:

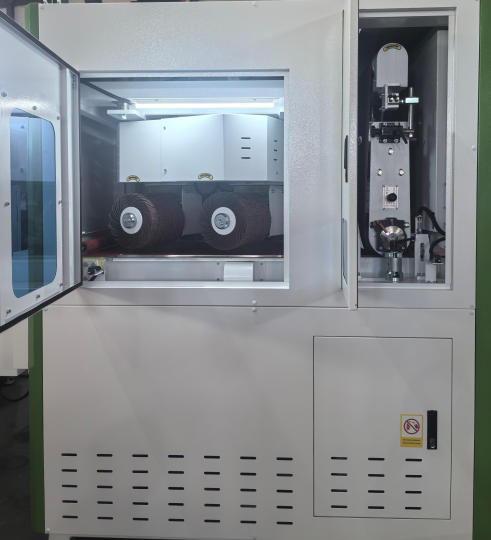

Multibrush Finishing Excellence
Core Features & Benefits:
Unique Multibrush System: Delivers stable grinding performance with precision belt control
Non-Directional Finish: Creates uniform surface quality without directional patterns
Automatic Adjustable Stations: Adapts to different material thicknesses (0.5-80mm) without manual intervention
Intuitive HMI Touchscreen: Multilingual interface with programmable settings for consistent quality reproduction
Seamless ERP Integration: Compatible with enterprise resource planning and automated handling systems
Automatic Brush Calibration: Maintains optimal performance with minimal operator intervention
Specialized Foil Handling: Ideal for processing foil-covered sheet metal components
The 508RW employs a two-stage finishing approach:
Initial Grinding Stage: A dedicated grinding unit removes heavy slag, oxidized skin, large flanging, and surface burrs, creating a flat, burr-free foundation
Multibrush Finishing: Six precision circular brushes apply a directionless finish while rounding edges to a consistent 2+ mm radius, enhancing both appearance and structural integrity
This combination ensures components meet the highest quality standards for both functional performance and aesthetic appeal.
Technical Specifications
| Parameter | Specification |
|---|
| Maximum Workpiece Width | 1300 mm |
| Working Width | 800 mm |
| Maximum Workpiece Height | 110 mm |
| Material Thickness Range | 0.5 - 80 mm |
| Minimum Workpiece Dimensions | 80 × 80 mm |
| Conveyor Belt Speed | 0.3 - 10 m/min |
| Product Fixation System | Vacuum or Magnetic |
| Power Requirements | 400 V | 50 Hz | 50 A | 25 kW |
| Machine Dimensions (L×W×H) | 3425 × 2205 × 2320 mm |
| Weight | 5,150 kg |
Smart Manufacturing Integration
The 508RW is engineered for Industry 4.0 compatibility with its fully programmable HMI touchscreen that stores and reproduces specific finishing programs. Operators can quickly switch between configurations for different materials and finish requirements, ensuring consistent quality while minimizing setup time and operational errors. The machine's ERP integration capabilities allow for seamless incorporation into automated production lines, making it a future-ready investment for smart factories.
Industrial Applications
This deburring machine excels in processing:
Laser-cut and punched sheet metal components
Foil-covered sheet metal parts
Automotive components
Electronics enclosures
Aerospace structural parts
Industrial machinery components
With its combination of precision, automation, and consistent high-quality output, the 508RW Deburring Machine establishes new standards in industrial metal finishing technology.
If you want to know more about deburring machines, please contact us
