ADV 508-RW series
Sheet metal deburring machine for deburring and edge rounding
Deburring
Edge rounding
Oxide removal
Finishing
Parameter:
| Model | ADV 508-RW450 | ADV 508-RW630 | ADV 508-RW800 | ADV 508-RW1100 | ADV 508-RW1300 | ADV 508-RW1500 |
| Effective processing width (mm) | 30-450
| 30-630 | 30-800 | 30-1100 | 30-1300 | 30-1500 |
| Processing thickness (mm) | 0.5-100 | 0.5-100 | 0.5-100 | 0.5-100 | 0.5-100 | 0.5-100 |
| Minimum workpiece size | Magnetic suction 30*30 mm, Vacuum suction 50*50 mm |
| Abrasive belt linear speed (m/s) | 3-15
| 3-15 | 3-15 | 3-15 | 3-15 | 3-15 |
| Abrasive belt size (mm) | 1600*450 | 1900*650 | 2000*820 | 2200*1120 | 2200*1320 | 2200*1520 |
| Conveying speed (m/s) | 0.5-7 | 0.5-7 | 0.5-7 | 0.5-7 | 0.5-7 | 0.5-7 |
| Rotating brush speed | 1440 rpm | 1440 rpm | 1440 rpm | 1440 rpm | 1440 rpm | 1440 rpm |
| Rotating brush revolution speed | 0-36 rpm | 0-36 rpm | 0-36 rpm | 0-36 rpm | 0-36 rpm | 0-36 rpm |
| Number of rotating brush | 4 | 4 | 4 | 6 | 8 | 8 |
| Abrasive belt motor power | 7.5 kw | 15 kw
| 15 kw | 18.5 kw | 22 kw | 22 kw |
| Rotating brush motor power | 1.5 kw*2 | 2.2 kw*2 | 2.2 kw*2 | 2.2 kw*3 | 4 kw*4 | 4 kw*4 |
| Conveying motor power | 1.1 kw | 1.5 kw | 2.2 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| Vacuum adsorption motor (with variable frequency) | 11 kw
| 15 kw | 15 kw | 15 kw | 18.5 kw | 18.5 kw |
Rotating brush size (mm)
| 250*300*40 | 250*300*40 | 300*300*40 | 300*300*40 | 300*300*40 | 300*300*40 |

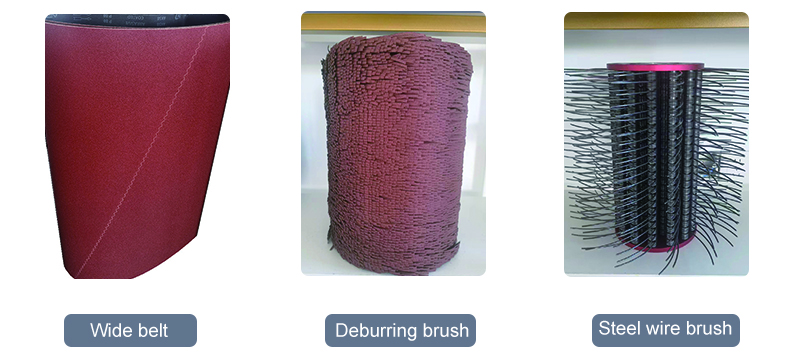

Available abrasives:
Wide belt: deburring large areas at one time for metal parts surface
Deburring brush: remove minor burrs and perfect edge rounding, non-directional random lines will form on the surface of the sheet metal
Steel wire brush: remove the laser oxide layer on the cutting surface
Function of ADV 508-RW deburring machine
Remove silhouette edge hard burrs
Remove cutting slag
Edge rounding of outside and inside profile more uniform
Strong adsorptive force, satisfy smaller parts
Automatic compensation for abrasive material
Abrasive replacement remind
Metal removal oxide layer and surface brushed

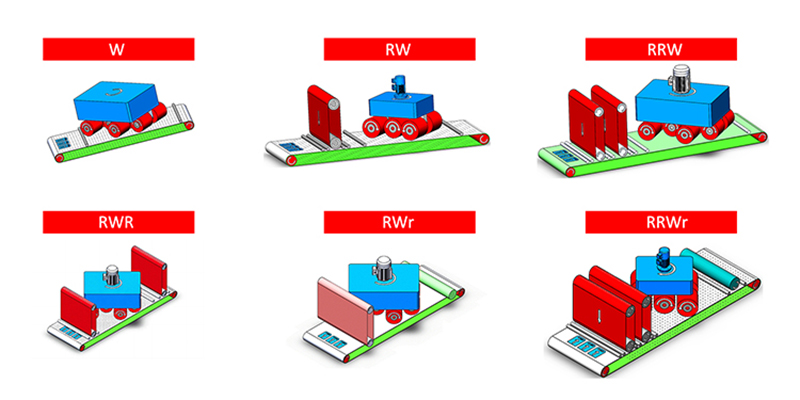

Available model:
ADV Grinding deburring machine can be configured in different combinations according to your final surface requirements for the product.
To learn more about our 508 Series Deburring Machines, please contact us online today!
