Tips: Automatic Greenhouse Pipe Bender CNC 9 Roller Tube Bending Machine
Main specification
1. CNC touch screen control, variable frequency motor feeding, servo motor roll bending, with a variety of different bending angles.
2. English subtitles display, man-machine dialogue operation, you can choose any manual, semi-automatic mode of operation, and start and emergency stop functions
3. The machine has the advantages of convenient operation, stable performance, high efficiency, and high safety factor, and is the ideal equipment for the production of Vegetable greenhouse

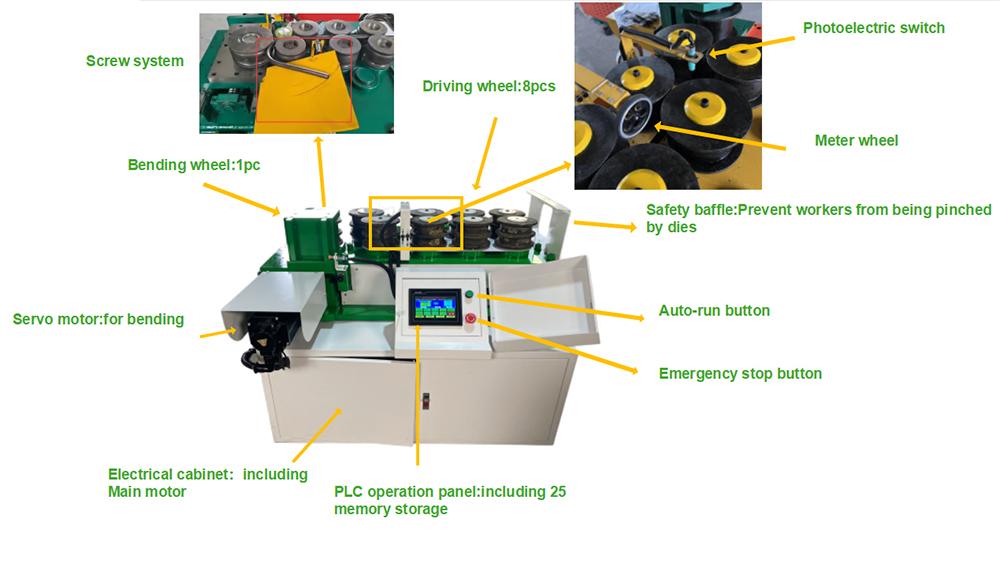

4. This machine has a frequency conversion motor as the power source. Reducer output force, gear drive. Roll bending speed can be adjusted by frequency conversion motor speed. There is a big servo motor used for adjusting the diameter of the circle, and the machine has 8 driving wheels and 1 bending wheel
Machine parameters: (eg: ADV-TB89)
Model: ADV TB89
Maximum bending pipe size: 89mm
Tube thickness: ≤3mm
Minimum bending radius: R115mm
Bending speed: 15-60m/min
Main motor: 5.5kW
Servo motor: 3.8kW
Machine frame thickness: 50mm
Shaft diameter: 70mm
Bendable tube type: Round pipe, square pipe, oval pipe, shaped pipe

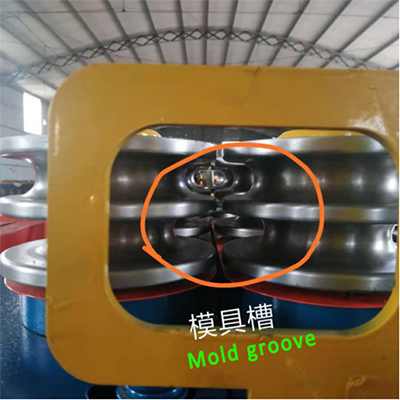

One set of molds can process multiple grooves, and a pipe of one size needs to be bent in the corresponding mold groove. If the sum of the pipe sizes is less than 89mm, one set of molds can be used (pay attention to identify the bending direction of the pipe)
Mold wheel type:

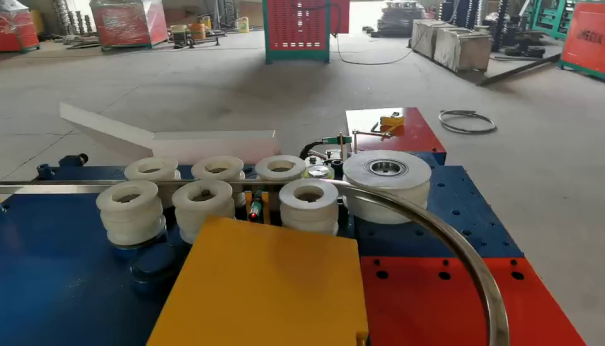

All dies can be replaced with nylon wheels, mainly suitable for metals with good ductility such as aluminum and copper. etc.
Other Models:
The standard machine is divided into three models: ADV TB40 is suitable for pipes within 40mm; ADV TB89 is suitable for pipes within 89mm; ADV TB114 is suitable for pipes within 114mm. It can be customized according to the bending radius range (diameter/width, thickness, length) of the customer's pipe.
