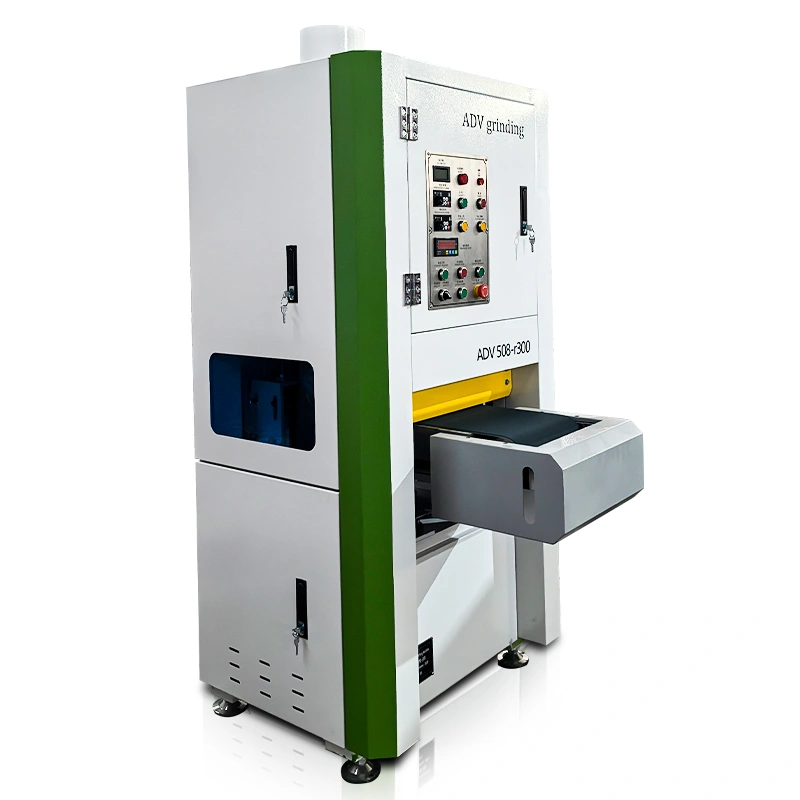

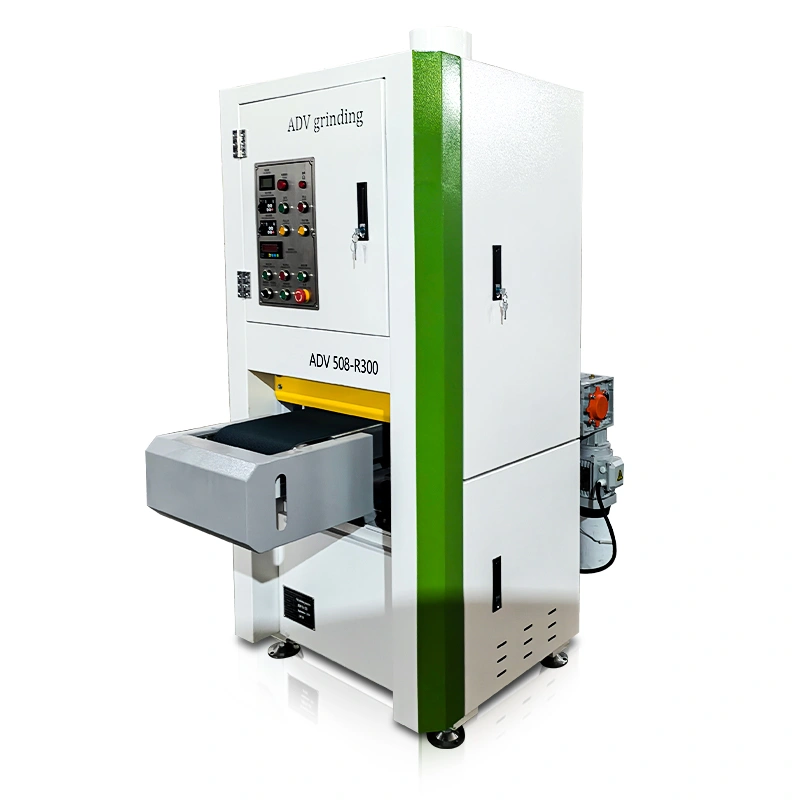

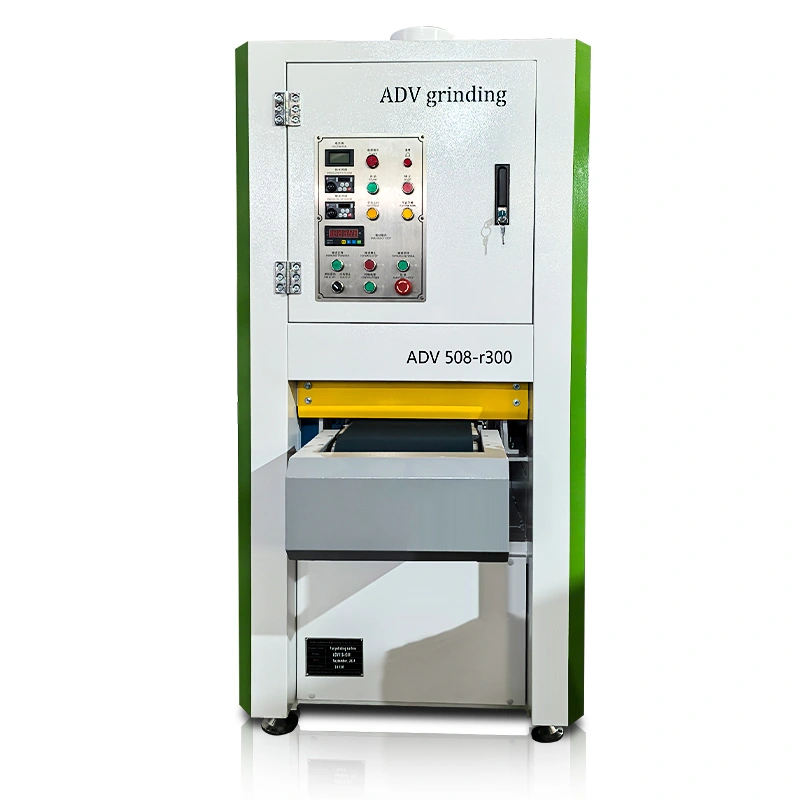

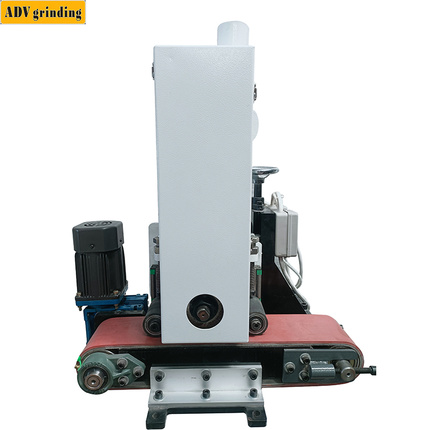

Flat sheet finishing machine | Abrasive belt and brush grinding unit
1. Improve production efficiency: The equipment can polish multiple metal parts of the same thickness at the same time, and we also have different width models for you to choose from. Under the premise of ensuring the highest quality, control your costs. This model is a 300mm wide economical model
2. Ensure product quality: The metal surface polishing machine achieves fine polishing of the workpiece surface by accurately controlling the gap and pressure between the grinding unit and the workpiece, ensuring stable and consistent product surface quality.

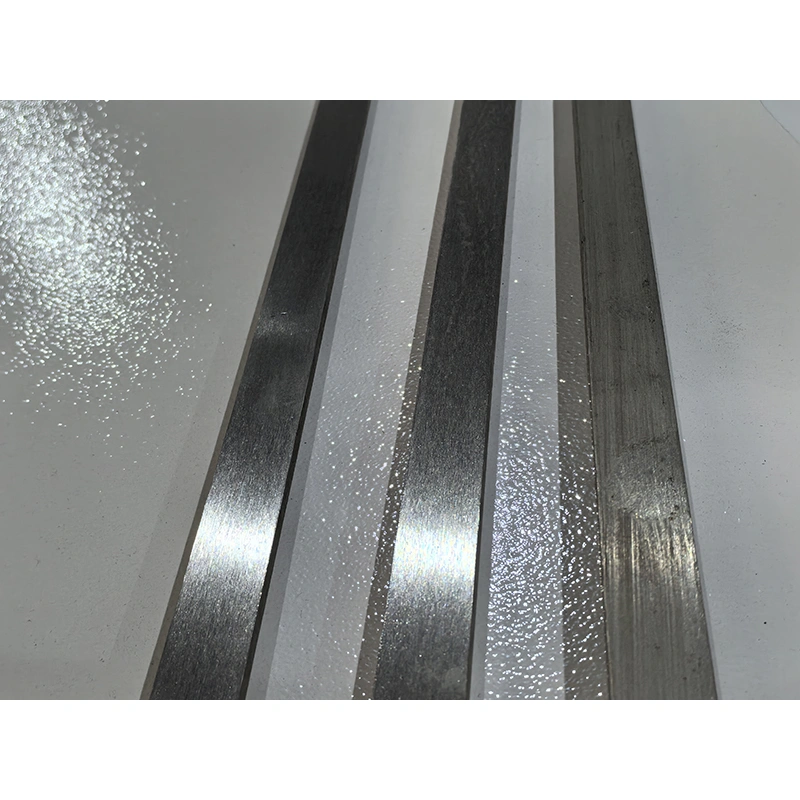

3. Strong adaptability: The flat sheet polishing machine is suitable for polishing workpieces of different materials and shapes (plates, flat steel, square tubes, etc.). You only need to replace the abrasive belts and brush abrasives to meet the polishing needs of different workpieces.

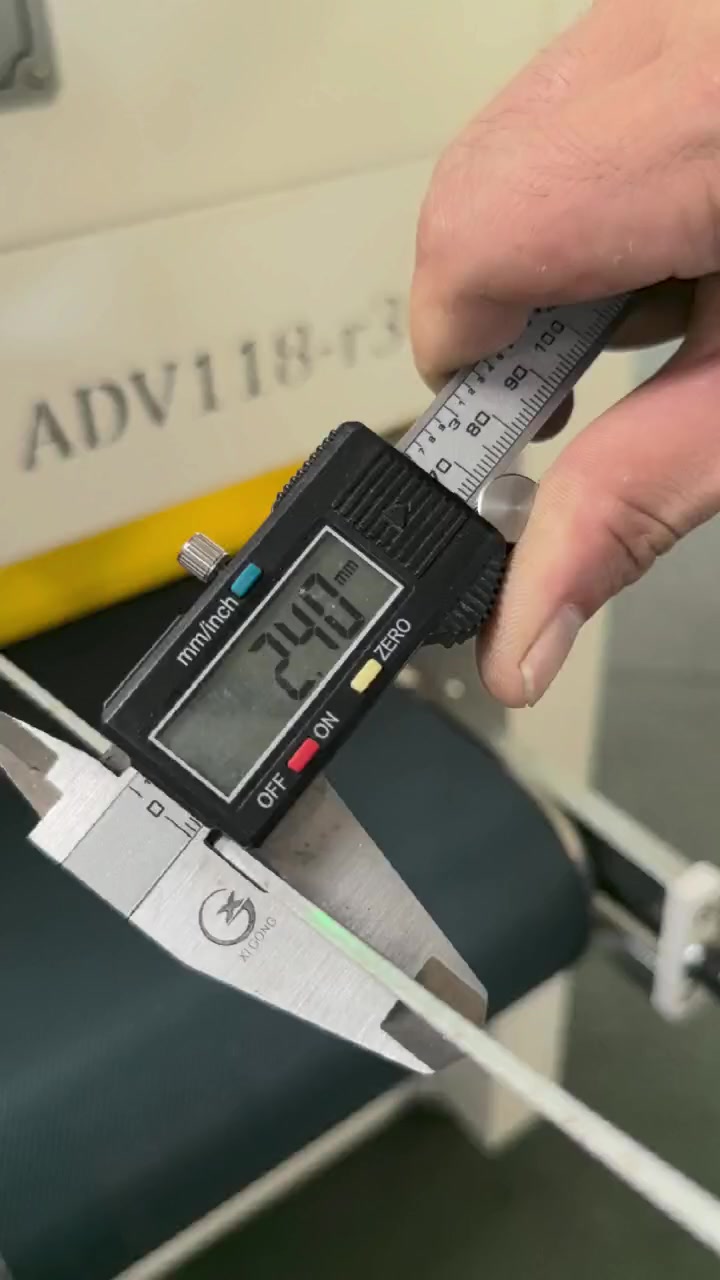

4. Easy to operate: The flat sheet polishing machine is easy to operate. You only need to measure the thickness of the workpiece to achieve batch polishing operations. It is easy to master and operate.
5. Energy saving and environmental protection: The flat sheet polishing machine can be connected to an industrial wet dust collector, which is beneficial to environmental protection
General equipment parameters:
Effective processing width: 300mm
Processing thickness: 0.5-120mm
Minimum processing size: ≥30*140mm
Feeding speed: 0.5-6m/min (VFD speed regulation)
Feeding motor: 1.1 kW
Lifting motor: 0.5 kW

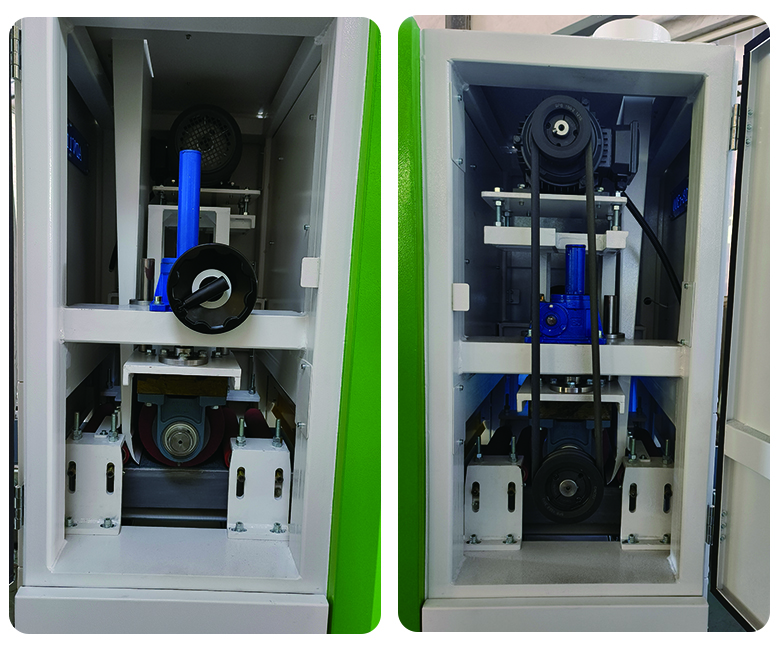

Abrasive belt grinding unit
Model: ADV 508-R300
Main motor power: 7.5 kW
Sanding belt speed: 8-15m/min (VFD speed regulation)
Abrasive belt dimension: 320*1650mm
Eccentric rubber wheel: 190mm diameter

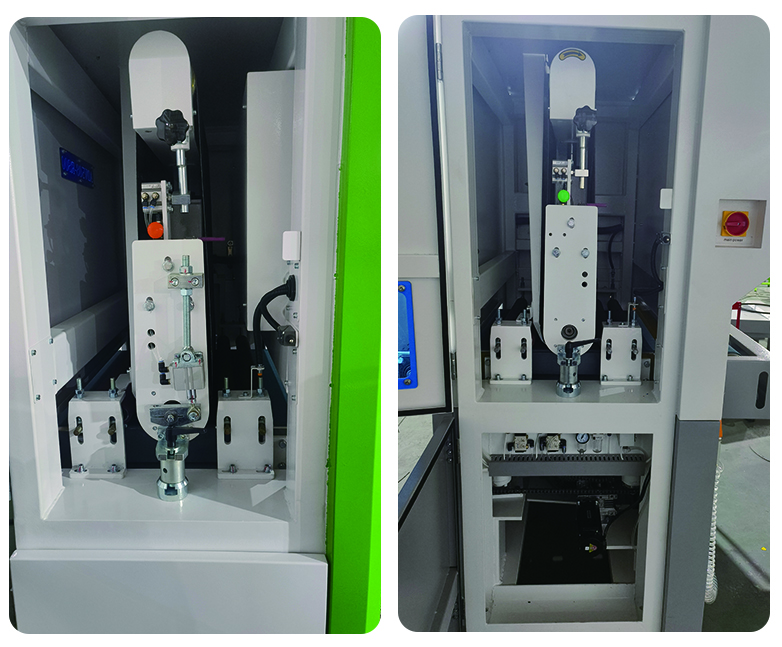

Brush grinding unit
Model: ADV 508-r300
Main motor power: 4.4 kW
brush speed: 3-16m/min (VFD speed regulation)
Non-woven brush dimension: 300*200*76.2 mm
