Storage Tank Dish End Dish Head Polishing Machine for Stainless steel

Tank head polishing machine

The machine is designed for dish end manhole external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 300mm-3000mm or customized. The dish head elliptical polishing machine is widely used in medical area，chemical，environmental purification，food，cookware, beverage and water filter，etc.

inquiry

tag:

Description

Automatic stainless steel dish head and tank head polishing machine


Dish head polishing head:

1.The dish head polishing head can polish and grind both the head and the tank body.
2.Adaptive constant floating structure, can be adapted to the workpiece ovality ≤50mm.
There are three floating cylinders at the grinding head end (2 polishing floating cylinders and one belt tensioning
cylinder)Details Images

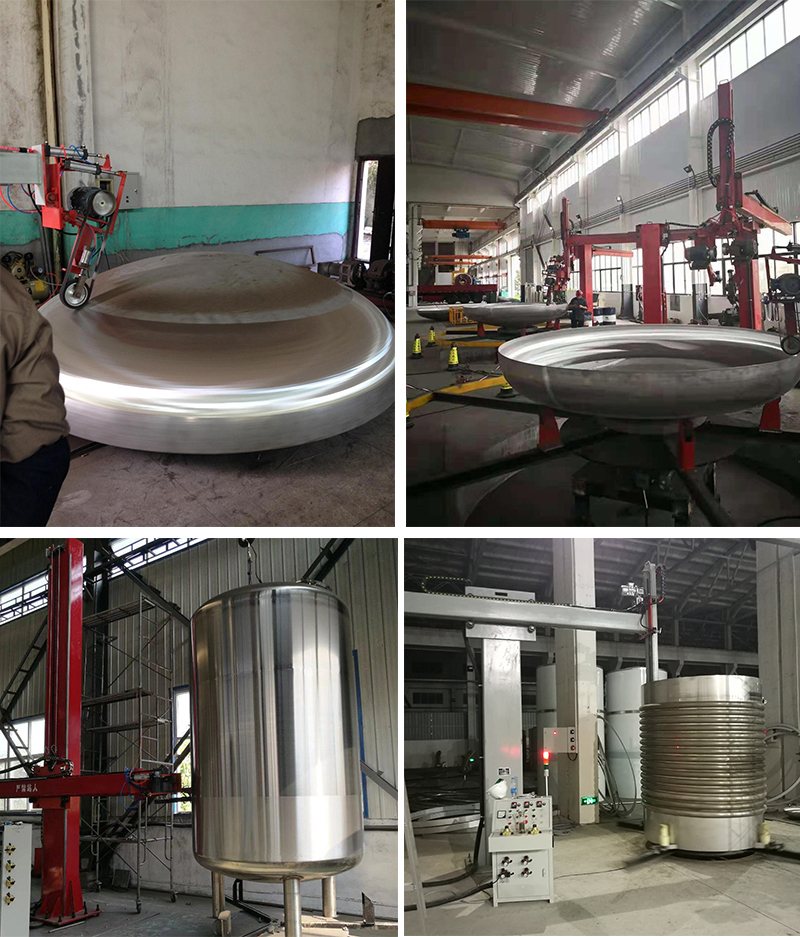

Machine working:
Finish effect:(hairline or mirror finish)

Applications:

The machine is mainly used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields:
1. Food, chemical stainless steel tank body
2. medical disinfection cabinet, filter
3. all kinds of cars with cylinder head and head
4. a variety of large-scale transmission pipe end of the tube, outside the weld
5. nuclear reactor and similar high-pressure heavy-duty container, the outer surface of grinding and polishing
6.nuclear reactor and similar high-pressure heavy-duty container, the outer longitudinal, ring weld grinding and welding root cleaning
