Grinding with abrasive belts, high efficiency, low noise, and less dust.
Since the surface roughness is reduced after the abrasive belt is used, it can be reused. In grinding with a slightly higher level of abrasive belt, the cost is correspondingly reduced.

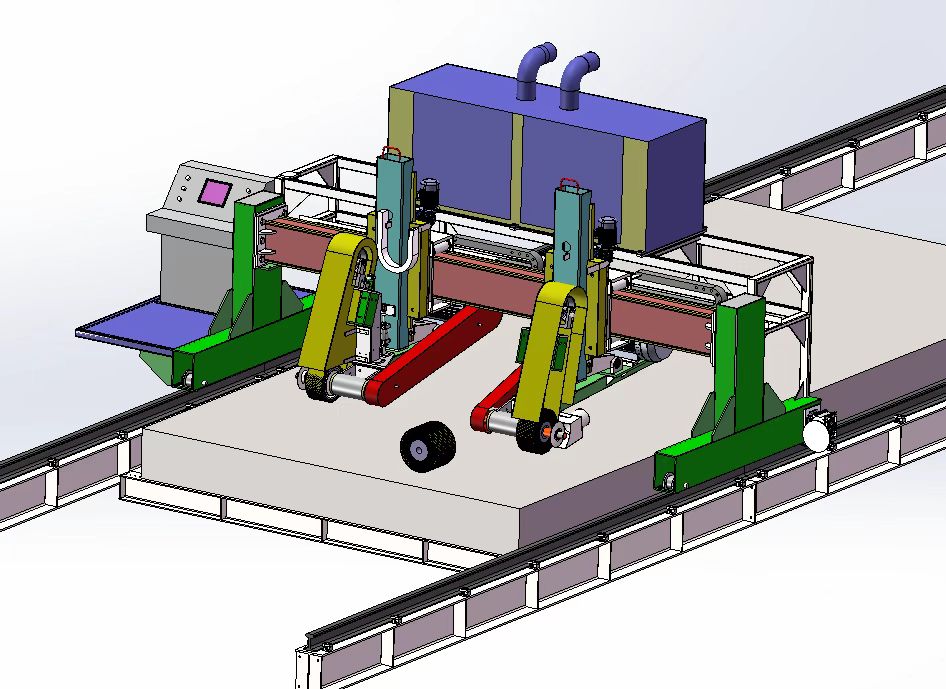

The machine tool consists of grinding head strain, cross beam, grinding head’s transverse feed mechanism, grinding head’s longitudinal feed mechanism, roller train, trajectory, machining tool bed, pneumatic system and electrical control system.
Due to the adoption of a grinding way that the grinding head moves and workpiece stays still, the workpiece length is virtually unlimited, and it’s just necessary to make a corresponding change in the machining tool bed and guideway.
The grinding heads are two constant-pressure floating belt grinding heads, used to grind the workpiece coarsely and finely.
Main technical parameters of the equipment :
No. | Project | Achievable indicators |
1 | Effective polishing width (mm) | ≤2000 |
2 | Effective polishing length (mm) | ≤20000 |
3 | Steel plate thickness (mm) | 5-100 (the purchaser confirms the size) |
4 | Surface roughness (μm) | ≤0.2 (achieved step by step) |
5 | Production efficiency (Ⅳ/h) | 60-120 (two grinding heads, one pass) |
6 | Abrasive belt specifications (LxW mm) | 2700x150 |
7 | Grinding wheel specifications (diameter x thickness) | 350x200 |
8 | Noise (db) | <85 (when using abrasive belt) |
9 | Machine appearance (LxWxH m) | 22x4x1.8 |
Working environment requirements :
1 | Operating temperature | 0-50℃ |
2 | Relative humidity | <90% no condensation |
3 | Ambient environment | Ventilation, no big impact |
4 | Power supply voltage | 380v±10%; 220v±10% |
5 | Power supply frequency | 50Hz |
6 | Input power | <40KW (without vacuum cleaner) |
7 | Air source: | 0.4～0.8Mpa |
8 | Air consumption | <1.2 m3/h |

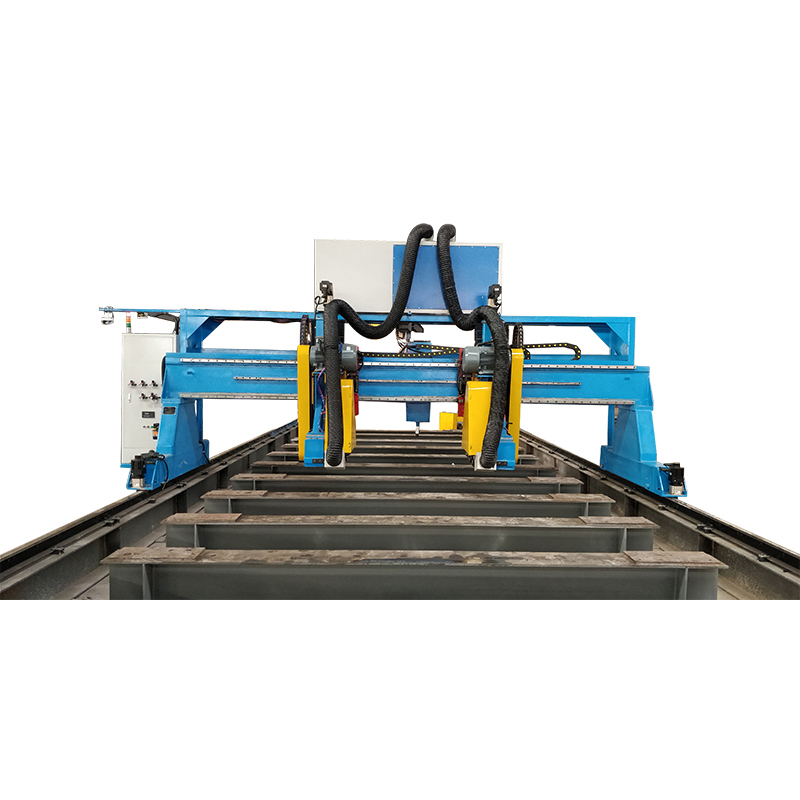

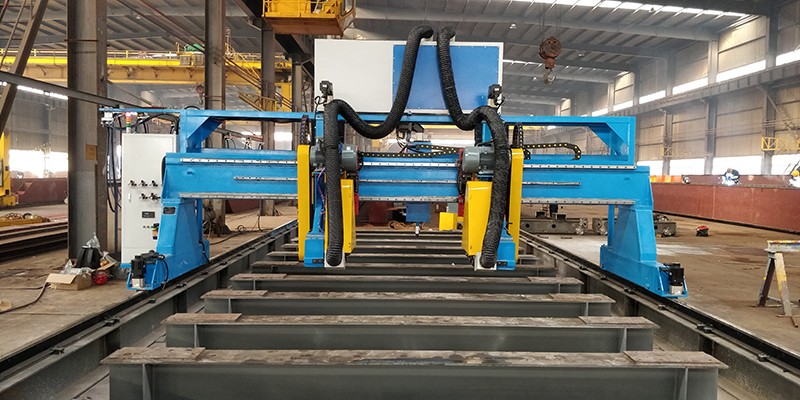

Machine photo :
