ADV LBS Large size long belt metal plate grinding machine
This equipment is mainly designed for large-size flat metal plate surface grinding, polishing and weld processing. According to the processing purpose, different grit abrasive belts can be used for grinding and polishing. It has the characteristics of high production efficiency, less auxiliary time, simple operation and environmental friendliness.
When manufacturing large equipment, it is often necessary to clean, grind and polish the surface of a large-area metal plate. Due to the large area of the workpiece to be processed, conventional grinding equipment cannot meet its processing requirements and has low work efficiency.

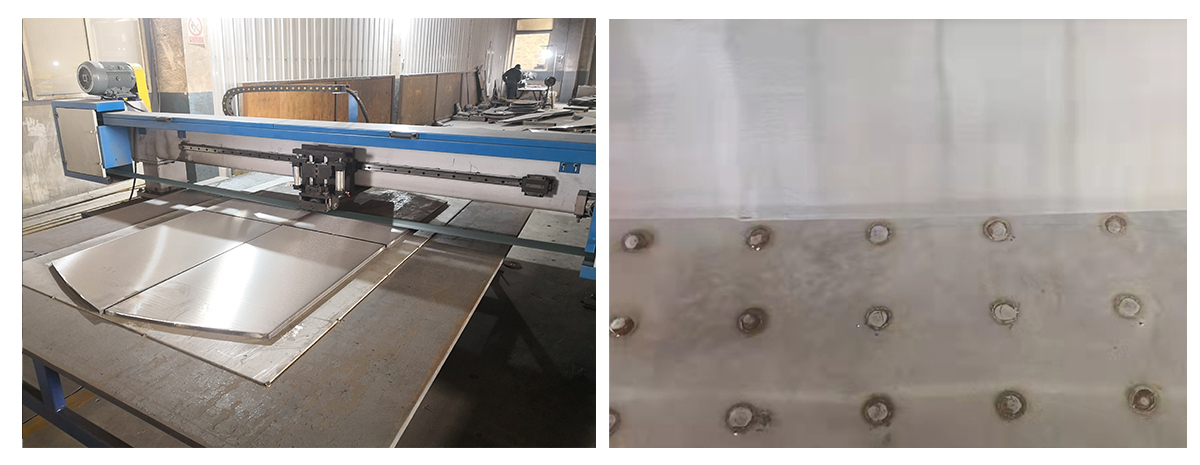

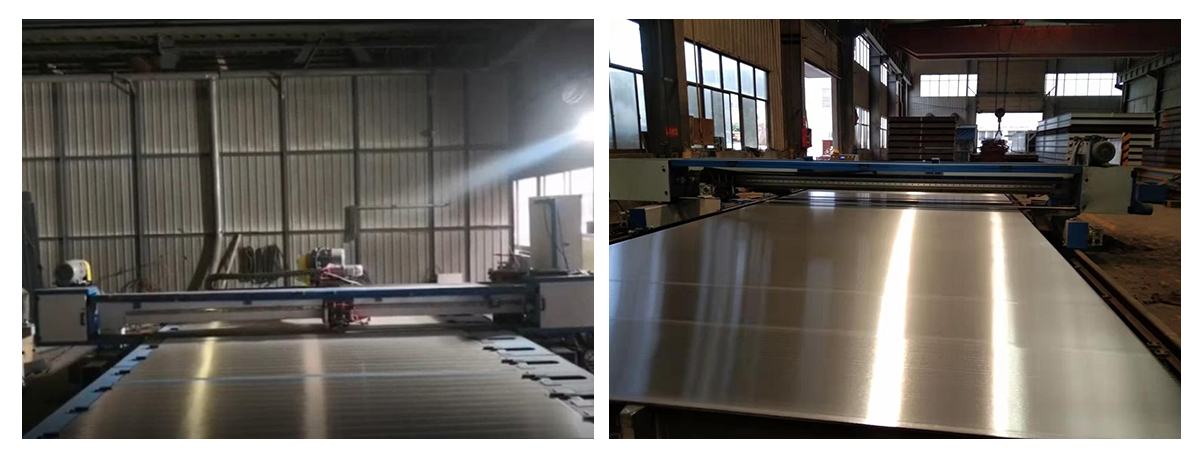

The long belt grinding machine is a CNC device that realizes automatic grinding of the outer surface of metal plates, including a base with tracks on both sides, a walking gantry is provided on the track, and a grinding head driven by a drag chain to move laterally on the crossbeam of the gantry, as well as a dust collection device. The workpiece remains stationary, and the grinding head drives the sanding belt to rotate at high speed, and the press wheel pressed on the sanding belt moves laterally to grind the workpiece. The surface roughness Ra value of the workpiece is reduced through the friction between the polishing abrasive and the workpiece surface.
Main technical parameters
Effective polishing length up to max.15m
Effective polishing widths of 3m, 4.5m, 6m, and 9m
Workpiece thickness 10-150mm
Surface roughness up to 3.2μm
Input power less than 52kW
Options/Advantages
According to the requirements of workpiece grinding and polishing, we equipped 2 sets of 150mm wide sanding belts, which can effectively improve the grinding efficiency
To prevent edge collapse, it is equipped with a press plate, which can be used interchangeably with the press wheel, which can effectively solve the edge collapse phenomenon on both sides of the grinding plate
The grinding head lifting mechanism can adapt to plates of different thicknesses
The visual system and display screen can facilitate the operator to clearly observe the quality and abnormal conditions of the product during grinding
The optional dust collection equipment can effectively collect the dust remaining on the surface of the plate during polishing
