ADV 508-R (Wide belt)

  • The ADV 508-R is our classic metal sander for grinding, deburring, No.4, and hairline finishing of final sheet metal and other flat parts.

  • Wet dust collectors or water filtration systems are available at request


Description

ADV 508-R series

Industrial wide belt metal sander


1. For deburring, sanding, and finishing of flat metal sheets (aluminum, copper, stainless steel, etc.).

2. For removing longitudinal burrs from laser-cut, stamping, and water jet-cut workpieces.

3. Standard available widths are 450mm, 630mm, 800mm, 1000mm, 1300mm, 1600mm or customized.

4. The metal sander can be used for wet or dry processes.



Parameter:


Single sanding belt

Available Width: 450mm, 630mm, 800mm, 1000mm, 1300mm, 1600mm

Available thickness: 0.5-100mm

Minimum processing size: 10*100mm

Conveying speed: 1-5m/min

Workbench height: 800-850mm

Process: Wet and dry

Sanding size (mm): 450*1650, 650*1900, 820*1900, 1020*2200, 1320*2200, 1620*2200

Application: deburring, grinding, snow grain, straight grain finishing



Features of ADV 508-R Metal Sander


1. The frame is quenched

2. The whole frame is polished and sprayed and dried to ensure that the paint surface is uniform and scratch-free;

3. The contact roller is made of Korean nitrile rubber roller, which has good oil resistance and corrosion resistance;

4. The pneumatically controlled eccentric contact roller can be raised and lowered independently. When the equipment fails, the contact roller automatically rises to protect the plate from damage;

5. The linear speed of the contact roller is: 3-16m/s variable frequency speed regulation;

6. Feed speed 1-5m/min;

7. Automatic thickness measurement;

8. Sand belt correction device;

9. Conveyor belt correction device;

10. Sand belt break protection;

11. Cleaning brush roller, used to remove metal plate residues during the operation of the conveyor belt.

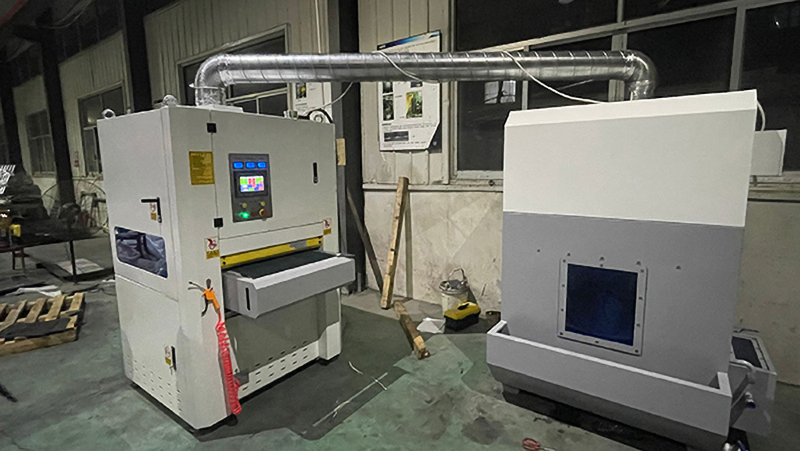

Wide belt metal sander with wet dust collector:


照片 (4).jpg
