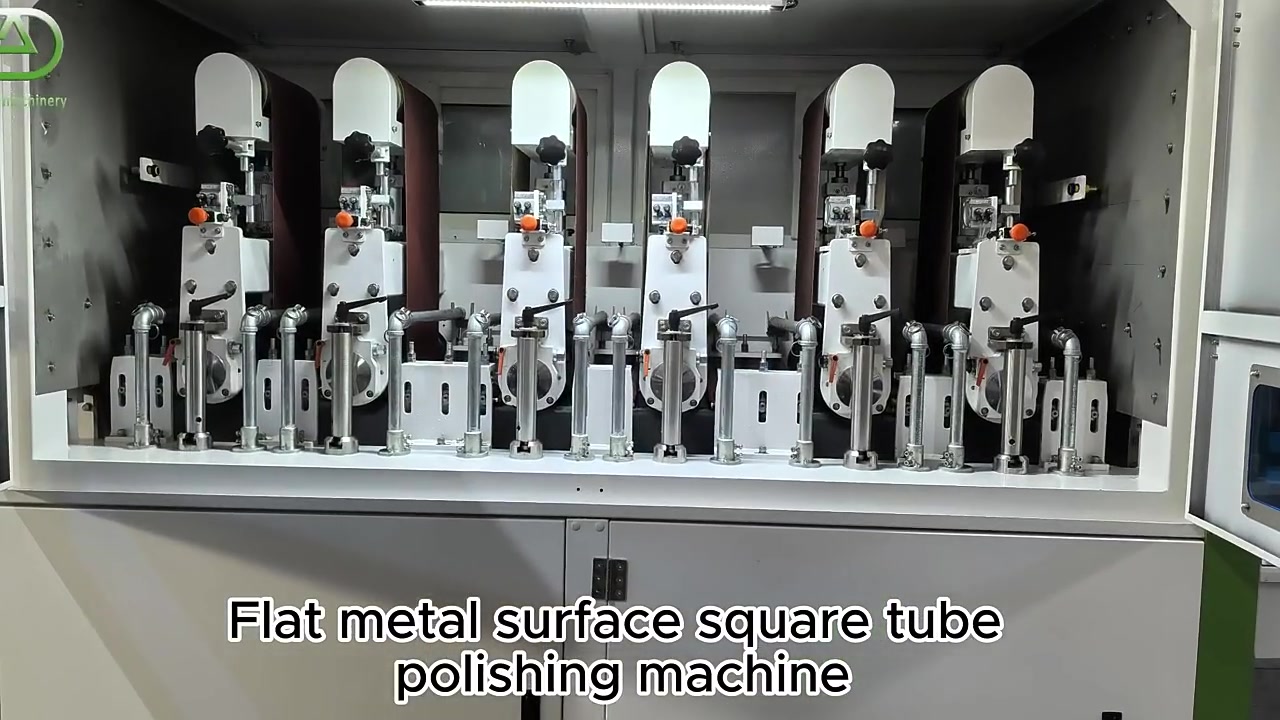

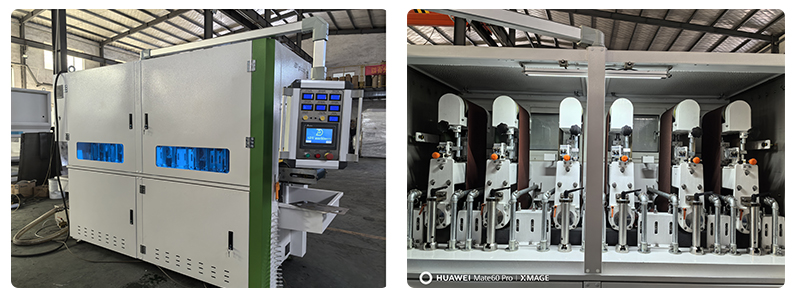

Flat surface finishing machine | 6 belt grinding units
1. Improve production efficiency: Flat metal products are polished using high-speed rotating sanding belts and grinding fluid. This process involves physically grinding or chemically treating the metal workpieces. The result is a bright, smooth surface on the metal.
2. Ensure product quality: The surface polishing machine can achieve fine polishing of the workpiece surface by accurately controlling the gap and pressure between the sanding belt and the workpiece, ensuring stable and consistent product surface quality.
3. Strong adaptability: The surface polishing machine is suitable for polishing workpieces of different materials and shapes (sheet metal, flat bar, square pipes, etc.). It only needs to replace the corresponding sanding belt and grinding units speed to meet the polishing needs of different workpieces.
4. Easy to operate: The surface polishing machine is easy to operate. It only needs to measure the thickness of the workpiece to realize batch polishing operation, which is easy to master and operate.
5. Energy saving and environmental protection: The surface polishing machine adopts advanced water circulation energy-saving technology, with low energy consumption, and less noise and dust pollution generated during the polishing process, which is beneficial to environmental protection.
General equipment parameters:
Model: ADV 508-6R300
Effective processing width: 300mm
Processing thickness: 0.5-120mm
Minimum processing size: ≥30*140mm
Feeding speed: 0.5-6m/min (VFD speed regulation)
Feeding motor: 1.5 kW
Coolant water pump: 0.55 kW
Lifting motor: 0.75 kW
Total power: 47.8 kW
Belt grinding head configuration
Sanding belt main motor: 7.5 kW*6
Sanding belt speed: 8-15m/min (VFD speed regulation)
Number of sanding belts: 6
Abrasive belt dimension: 320*1650mm
Eccentric rubber wheel: 190mm diameter
Features of ADV 508-6R300 flat surface finishing machine
1. The frame is quenched
2. The whole frame is polished sprayed and dried to ensure that the paint surface is uniform and scratch-free;
3. The contact roller is made of Korean nitrile rubber roller, which has good oil resistance and corrosion resistance;
4. The pneumatically controlled eccentric contact roller can be raised and lowered independently. When the equipment fails, the contact roller automatically rises to protect the plate from damage;
5. The linear speed of the contact roller is 3-16m/s variable frequency speed regulation;
6. Feed speed 0.5-6m/min;
7. Automatic thickness measurement;
8. Sand belt correction device;
9. Conveyor belt correction device;
10. Sand belt break protection;
Wet grinding of square profiles and flat bars
