Different surface finishing requires different polishing processes and abrasive products. Depending on the surface finishing and workpiece size range our machines have different configurations to match the needs of every customers.
This sheet metal finishing machine is available with 1 to 4 heads in combination with wide belt, polishing pad, roller brush heads.
ADV 508-RPr metal finishing machine with abrasive belt, polishing pad, roller brush
Used to remove longitudinal burrs from laser cutting, stamping and waterjet cutting workpieces.
The equipment can complete large burr rough grinding and surface SB hairline finish at one time. It is used for large surface sanding treatment to remove scratches and make the surface uniform, which can remove the oxide layer on the surface of the workpiece powerfully.
The standard available width is 630mm,1000mm, 1300mm, 1600mm or customized.
Dry operation dust extraction system / wet water filter system available on request
Oxide Layer Removal
Oxide skin occurs on metal and stainless steel when laser cutting, and it must be removed for subsequent coating processes or welding.
Pefect scotch brushed finishing
A combination of finishing with abrasive belt station and polishing pad station
Pefect hairline finishing
A combination of finishing with abrasive belt and roller brush.

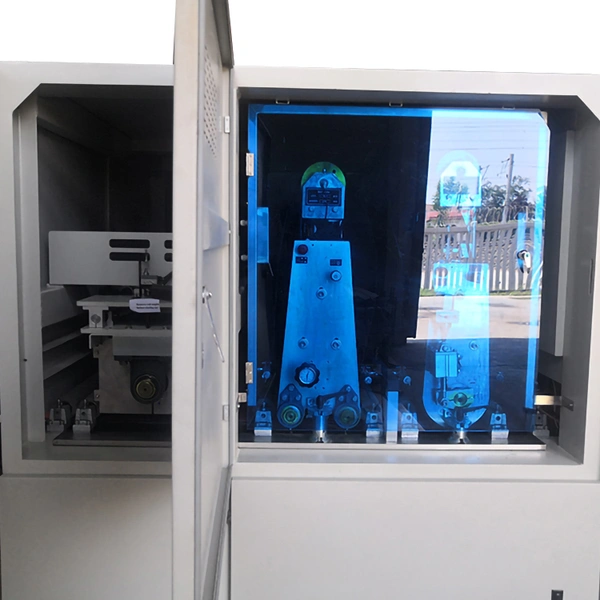

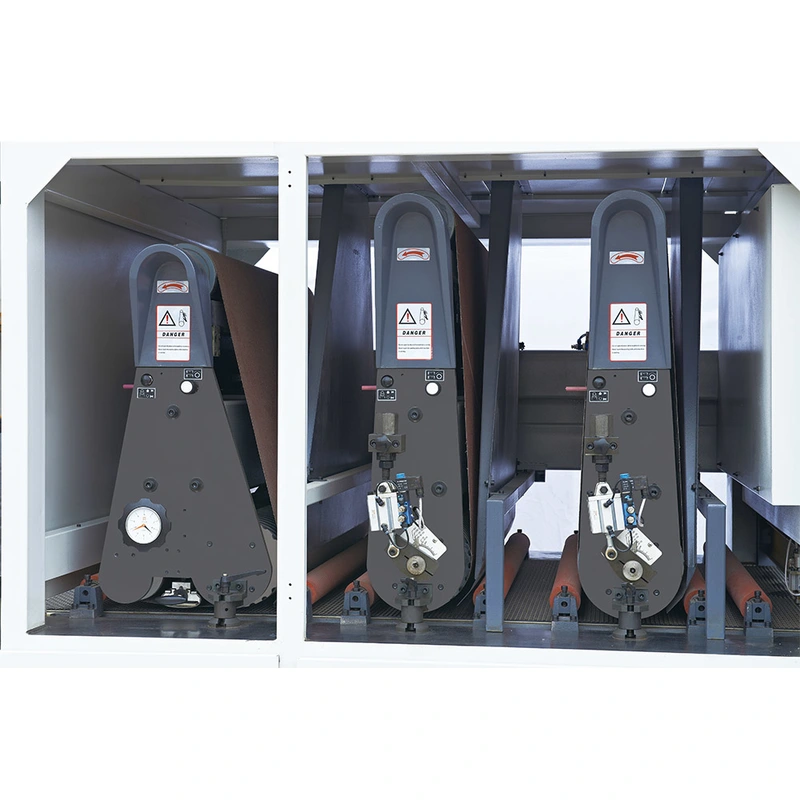

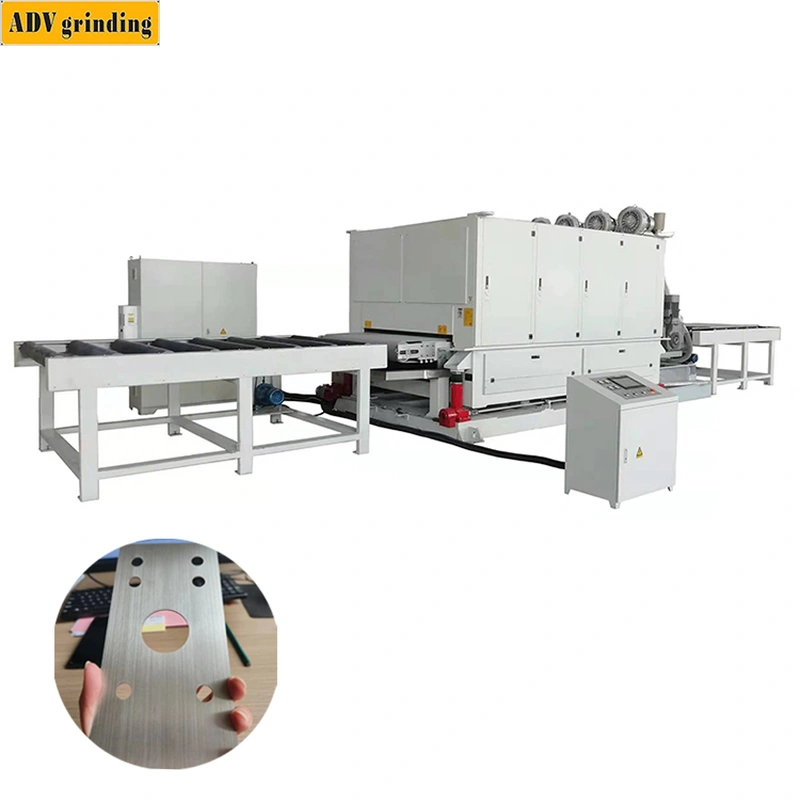

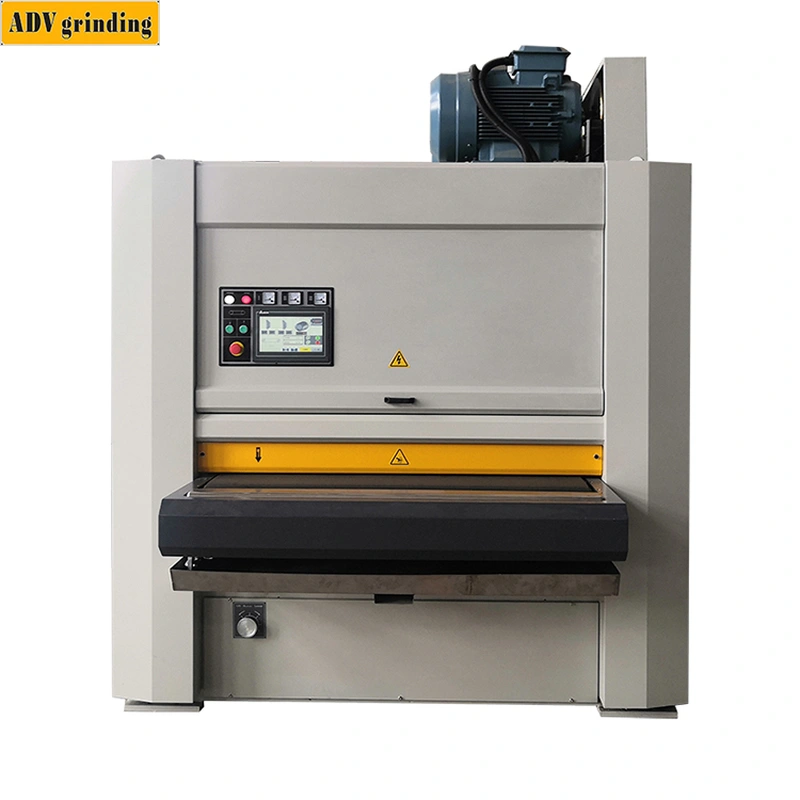

Machine Photos
After deburring and brushed
FINISHING OF SHEET METAL PRODUCTS
This machine can be built to produce a variety of sheet metal finishes. Metal finishing is the last step in the manufacturing,that adds to the protection and aesthetics of the products. The most common finishes are decorative finishes as for instance a straight-line or a grain finish.These can be accomplished in finishing processes that use abrasive belts, polishing pad, roller brushes.
