Why Choose Modern Pipe Polishing Systems?
Pipe polishing machines have become indispensable in workshops for processing straight and bent tubes. These systems enable efficient defect removal, surface finishing, and weld seam elimination while reducing costs and storage risks. Unlike pre-finished materials, modern machines allow workshops to use affordable raw stock and apply custom finishes on demand.
Key Advantages of Planetary Tube Polishing Machines
Versatility: Process round, oval, or irregular-section tubes (10-110mm diameter) made of aluminum, stainless steel, or carbon steel.
Safety: Non-spinning operation minimizes worker risk compared to traditional methods.
Adaptability: Swap abrasive belts (60 grit to Scotch-Brite) for rust removal, satin finishes, or mirror polishing.
Efficiency: Automatic feeding systems achieve speeds of 0.7-4 m/min with consistent quality.

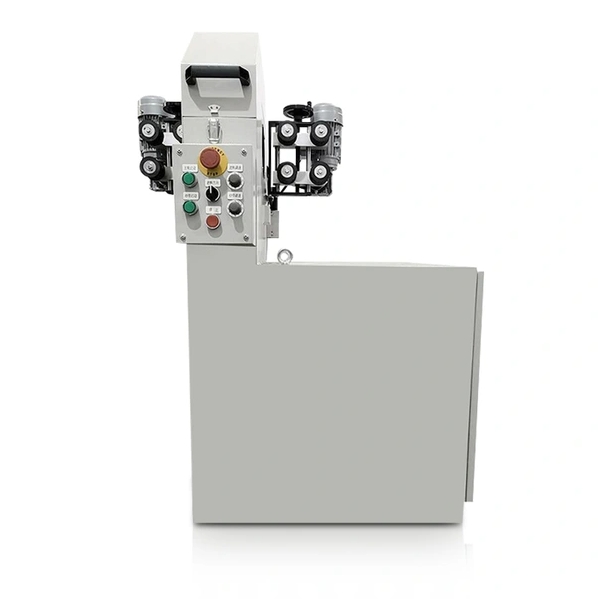

ADV 108 Planetary Tube Polisher: Technical Specifications
| Feature | Specification |
|---|
| Motor Power | 3.94 kW (Total) |
| Abrasive Belt Speed | 7.8-18 m/s |
| Belt Size | 2 x 940 x 50 mm |
| Voltage | 208/230V |
| Max Tube Diameter | 110mm (4" OD) |
Applications Across Industries
The ADV 108 bent tube polishing machine excels in multiple scenarios:
Removing bender marks while maintaining finish consistency
Creating uniform satin/mirror finishes on handrails
Processing curved architectural elements (7-day delivery available)
High-gloss polishing for medical or food-grade tubing

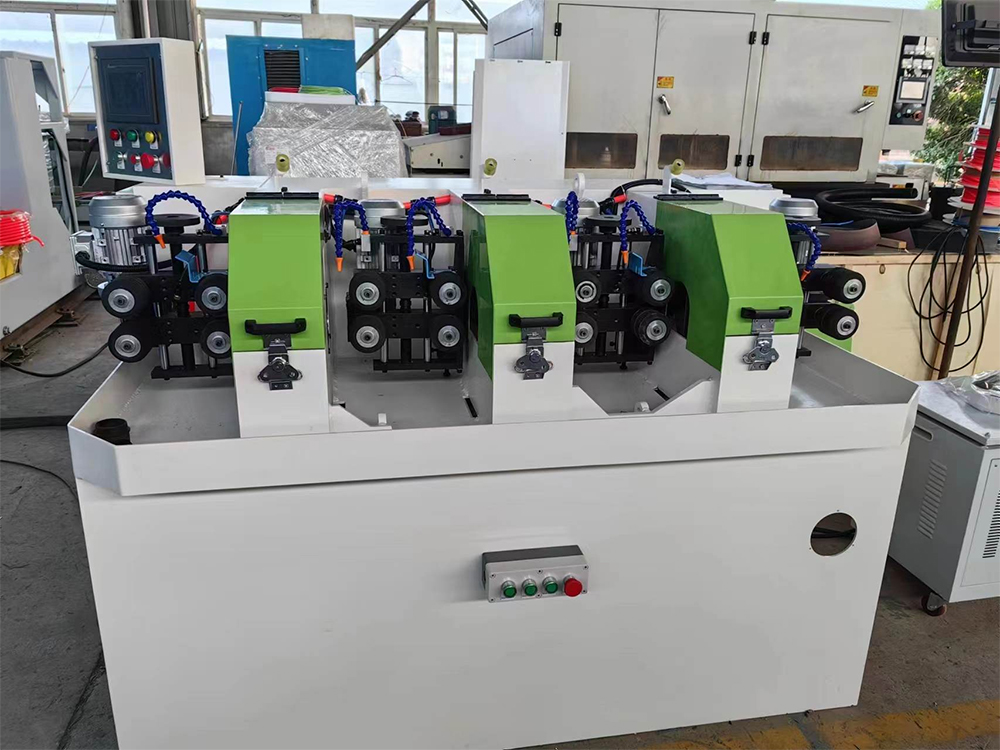

108 Series Multi-head Automatic round pipe polishing machine with planetary
The belt opening is commanded by a foot pedal which enables the entering and exiting of the tube, increasing the durability of the abrasive belts.Completely adjustable automatic feeding. The adjustable speed and direction of the automatic feeding helps you achieving the desired results.Completely independent polishing unit. The pipe can be polished from a rough surface to a smooth and shiny surface in one operation.
Available tube diameter: 5–50 mm
Total motor power: 12 kW
Abrasive belt motor power: 2.2 kW*3
Transfer wheel motor power: 1.5 kW*3
Speed of abrasive belt: 7.8-18 m/s
Speed of feeding: 0.7-4 m/min
Size of abrasive belts: （2）940 x 50mm
