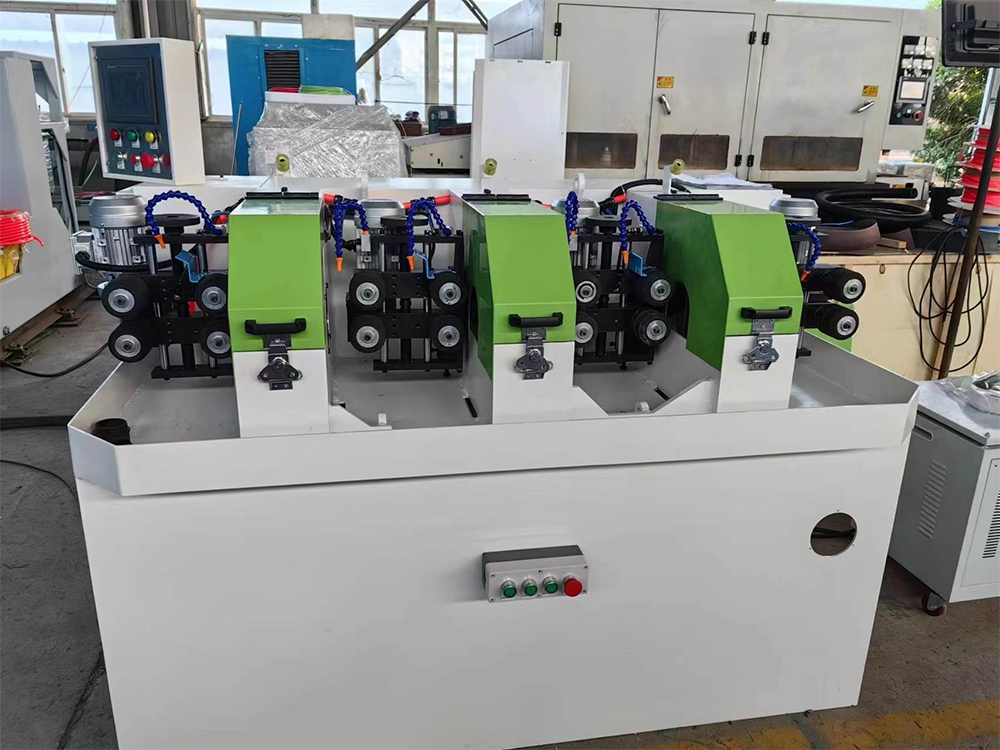

ADV 108-H3 Automatic round pipe polishing machine with planetary

ADV 108 Multi-head straight round tube polishing machine

1. The ADV 108-H3 Round tube polisher machine is the best choice for surface polishing and brushed straight tubes.

2. The unique belt planetary motion system can achieve the best finishing effect on the surface of the pipe.

3. A fully automatic feeding system can greatly improve the efficiency and quality of straight pipe polishing

4. Completely independent polishing unit. The pipe can be polished from a rough surface to a smooth and shiny surface in one operation.

tag: Round tube

ADV 108-H3 (2).jpg

Item:

Available tube diameter: 5–50 mm

Total motor power: 12 kW

Abrasive belt motor power: 2.2 kW*3

Transfer wheel motor power: 1.5 kW*3

Speed of abrasive belt: 7.8-18 m/s

Speed of feeding: 0.7-4 m/min

Size of abrasive belts: （2）940 x 50mm

Standard Configuration:

H911a6a54feb044478872dc48929326eeF (1).jpg

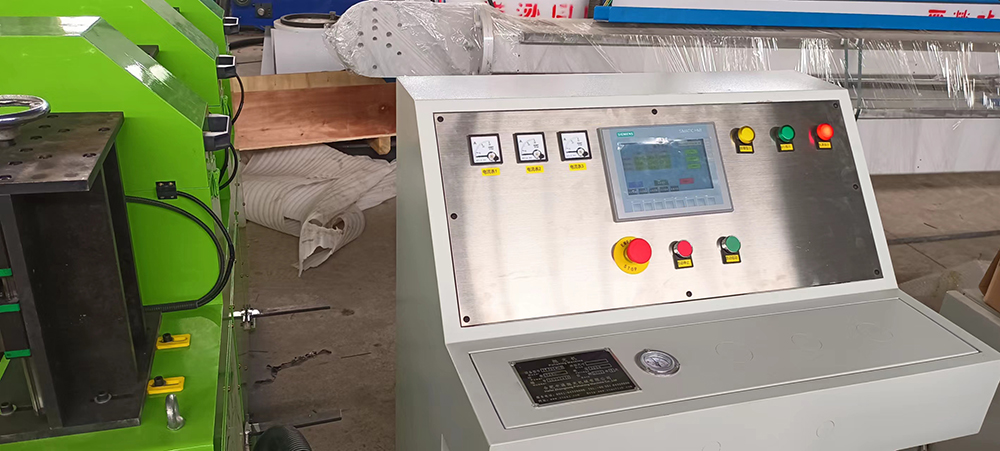

Siemens touch screen

Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel with an integrated touchscreen.

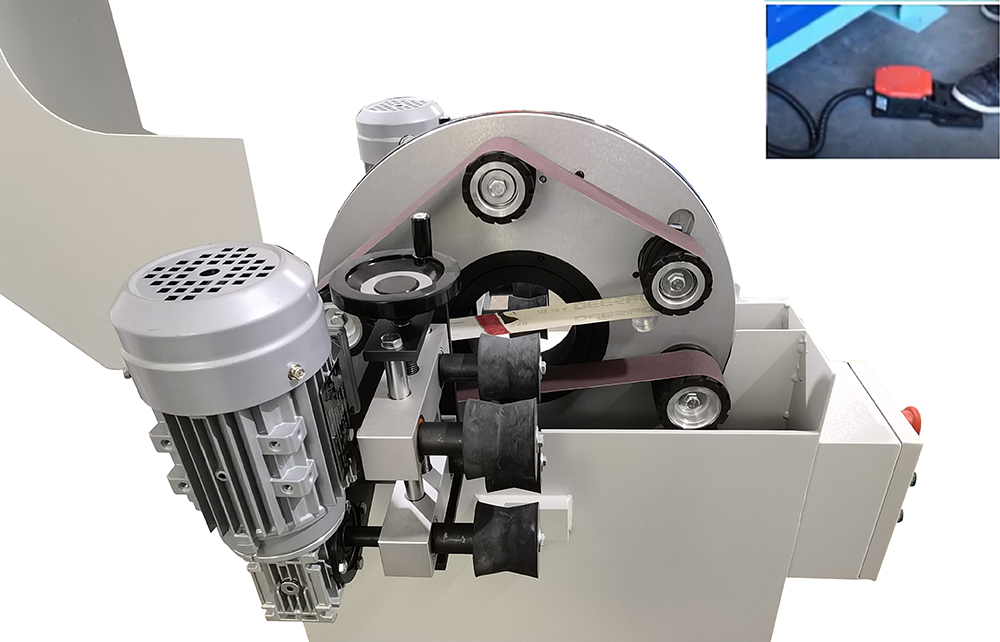

Belt expansion system

The belt opening is commanded by a foot pedal which enables the entering and exiting of the tube, increasing the durability of the abrasive belts

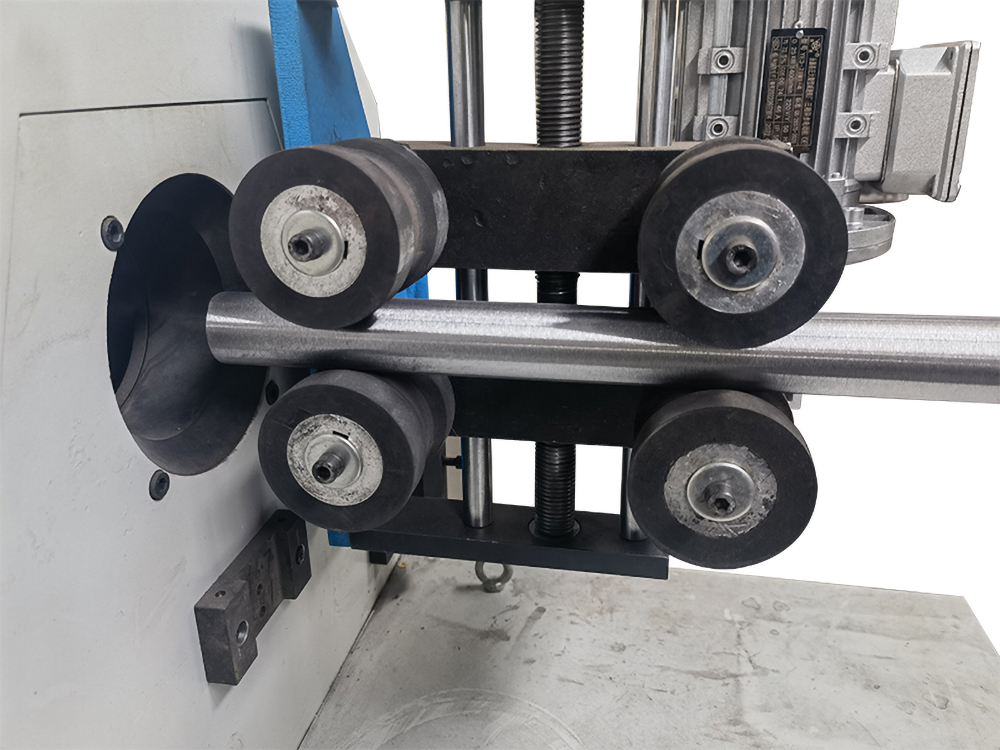

Automatic feeding system

Completely adjustable automatic feeding. The adjustable speed and direction of the automatic feeding helps you achieving the desired results
