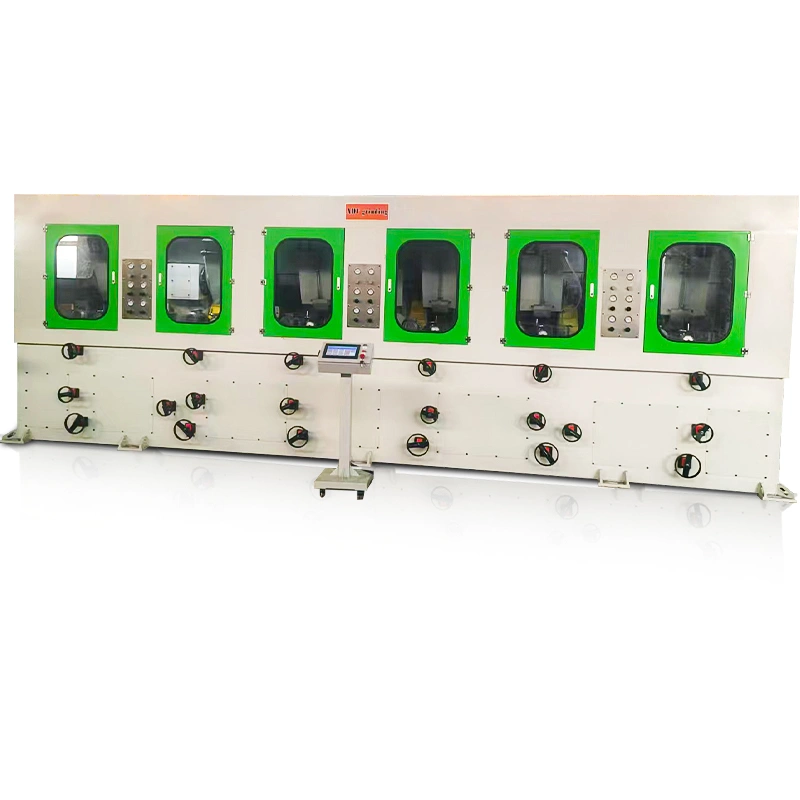

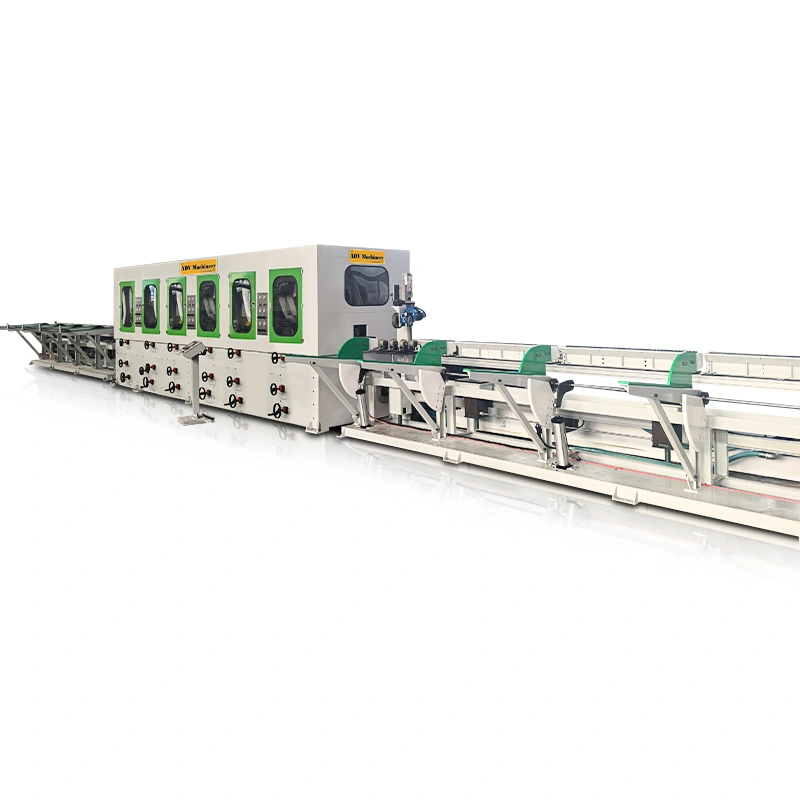

ADV 106-N Multi-station Round Pipe Centerless Polishing Machine
1. Used for grinding and polishing (matte, mirror) the outer surface of the round pipes with a diameter of 10-500 mm.
2. According to the diameters and weight of the pipes, the grinding head structure will be different. Also, automatic loader/unloader will be custmized for different sizes.
3. Per requirements for the surface roughness and brightness of the workpiece, different grid of abrasive belts or polishing wheels can be used.
4. It can also be used in combination with multiple sets of grinding heads with wet or dry polishing.
5. Highly customizable
Specifications:
Model: ADV 106-N
Effectively polished diameter: 20-500 mm
Belt size: 2000*150 mm or custmized
Polishing wheel size: 300*50 mm or custimized
Feeding Speed: 0.5-5 m/min, or custimized
Wet /Dry polishing both available.

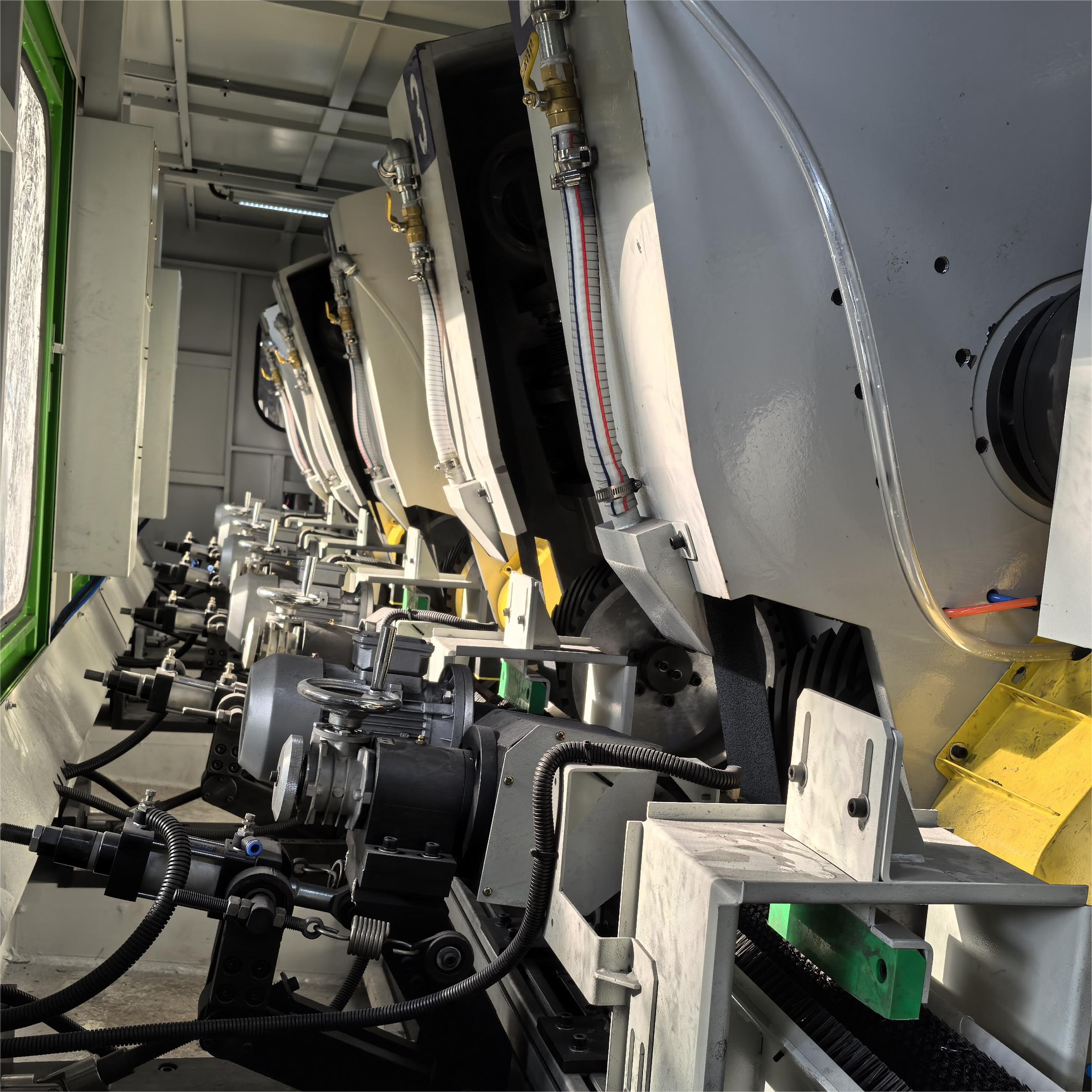

Internal View of Machine:

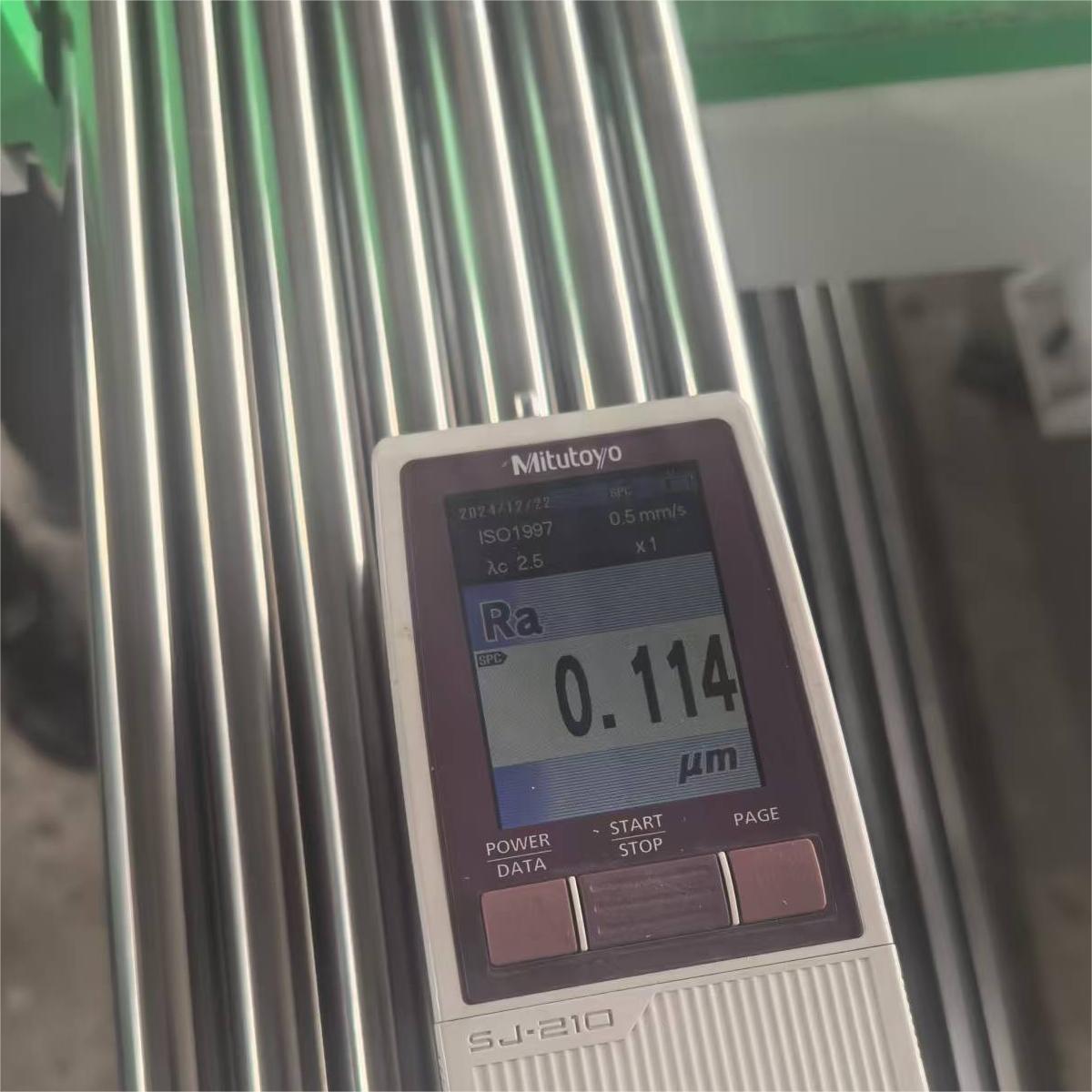

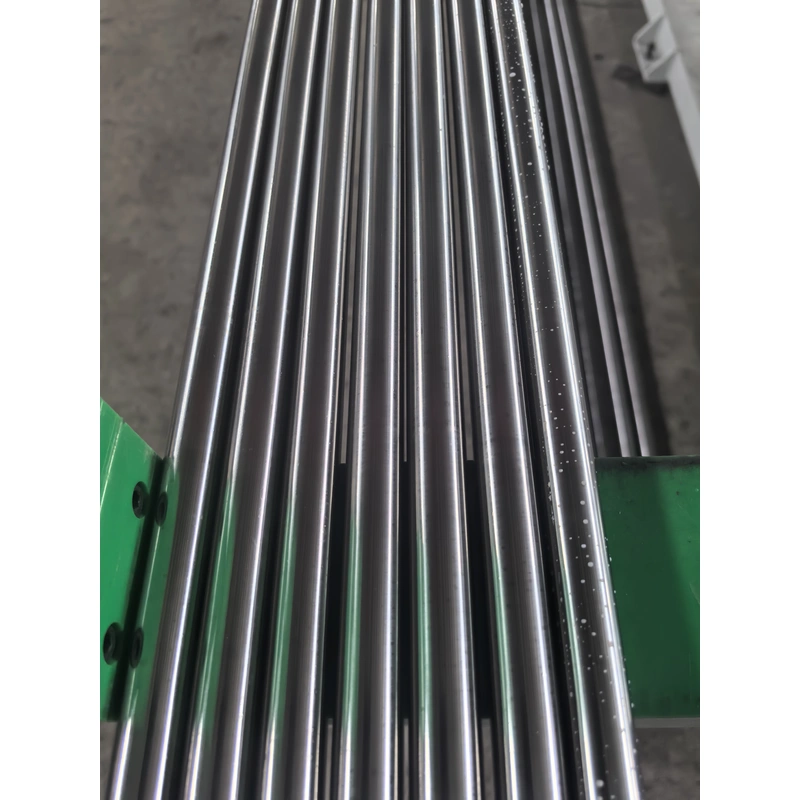

Surface Roughness after Polishing (for Reference):
