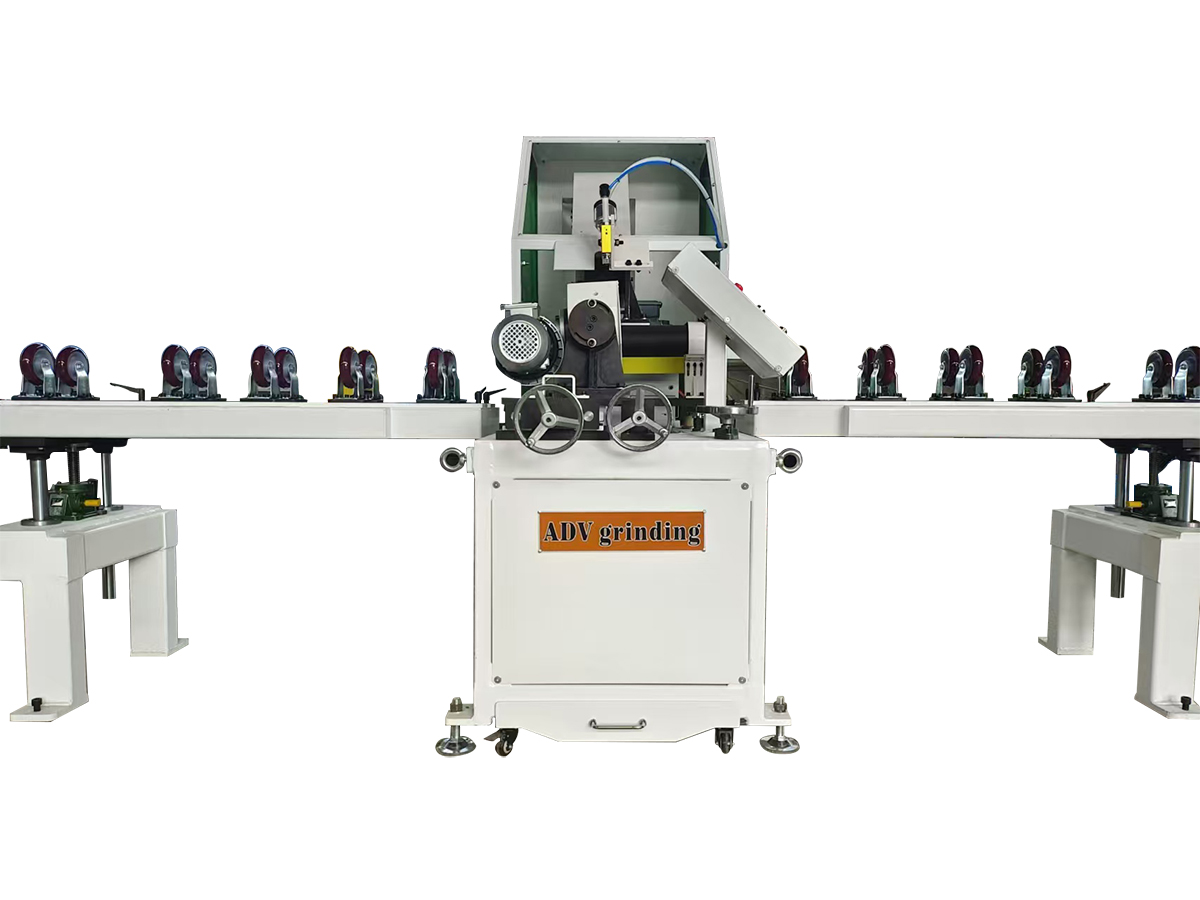

Efficient and precise: ADV 106 Centerless polishing machine is your first choice solution for polishing the outer surface of metal tubes. It is equipped with a 7.5 kW grinding head motor with frequency conversion and an adjustable feed speed of 1-5 m/min, which can effectively remove rust and scratches and effectively reduce the surface roughness of the tube.
Versatile design: The machine can accommodate tubes with diameters from 38mm to 165mm and lengths from 600 to 6000mm, suitable for a variety of applications. It uses a 100 x 2000mm sanding belt or a 50x 300mm polishing wheel, and the surface of the round tube can be polished to a brushed or mirror effect.
Compact and reliable: The device measures 1650 x 1000 x 2050 mm and weighs 500 kg (excluding the rack), with a compact and sturdy structure. Its solid construction ensures durability and minimizes maintenance.
1. This equipment is used for grinding and polishing (matte, bright) the outer surface of the round tube with a diameter of 38-165mm.
2. Maximum working length without support 1500 mm (If the length is greater than 1.5m, additional tube feeding racks are required).
3. According to the customer's requirements for the surface roughness and brightness of the workpiece, abrasive belts or polishing wheels can be used.
4. It can also be used in combination with multiple sets of grinding heads.
Item:
Model: ADV 106
Available tube diameter range: 38-165 mm
Grinding head motor power: 7.5 kW
Grinding head motor speed: 0-30m/s
Feeding motor power: 0.75 kW
Feeding speed: 1-5 m/min
Abrasive belt size: 100*2000 mm
Polishing wheel size: 50*300 mm
Machine dimension: 1650*1000*2050 mm
Available abrasives: Abrasive belt, flap wheel, Nylon, Hemp wheel and cloth wheel
Description of the round tube polishing process: manually put the workpiece on the workpiece feed rack and place it at the grinding head position. The grinding head rotates and the workpiece rotates in the opposite direction, and the motor drives the workpiece to rotate and move axially, and the grinding head realizes the grinding and polishing of the workpiece surface. The control panel has an emergency stop switch.
