Multi-station planetary round pipe polishing machine

The multi-station planetary tube polishing machine is a device used for polishing the surface of tubes. Its multi-station design allows the tube to be polished from rough to fine at one time, improving production efficiency. The planetary design allows the abrasive belt to rotate around the workpiece, thereby achieving uniform polishing.

tag: Round tube

Description

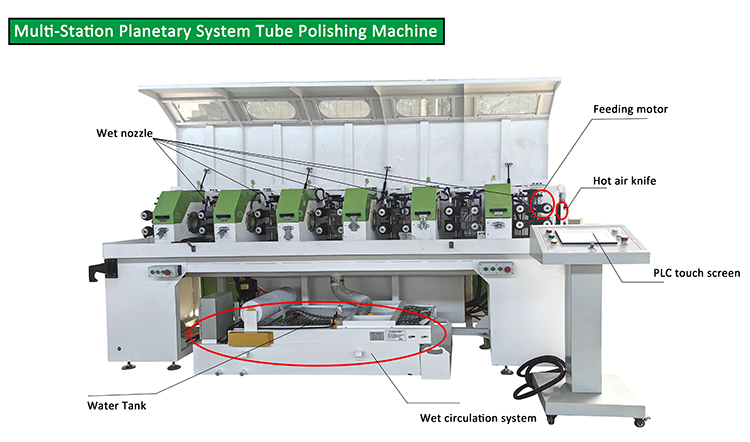

tube polishing machine.jpg

Machine parameters:


No
Item
Specification
1
Model
ADV 108-6
2
Available diameter
5-100 mm
3
Total motor power
26 kw
4
Abrasive belt motor power
2.2 kw*6
5
Speed of abrasive belt
7.8-18 m/s
6
Rotary brush motor power
1.5 kw*6
7
Feeding system motor power
0.37 kw*7
8
Speed of feeding
0.7-4 m/min
9
Size of abrasive belt
940*50 mm

Product description:

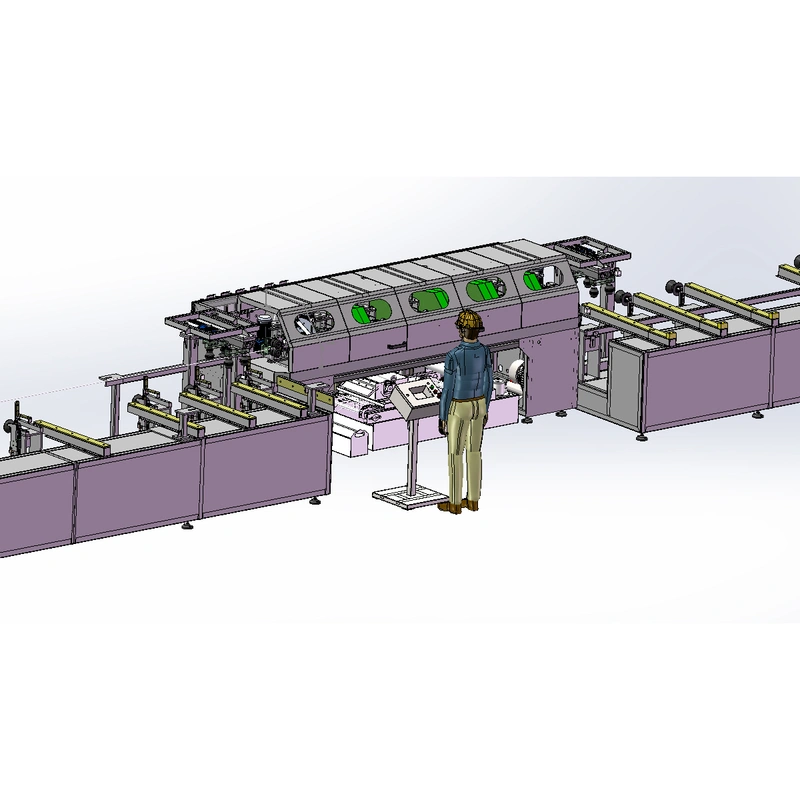

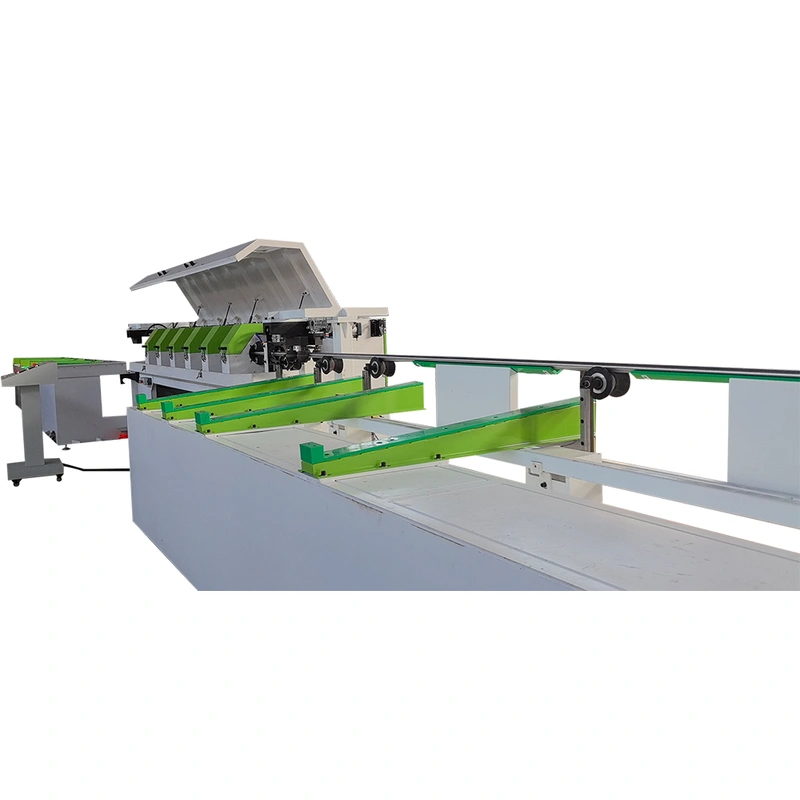

The multi-station round tube polishing machine is mainly suitable for the surface polishing and brushing of various circular cross-section metal pipes. The complete set of production line equipment mainly consists of three parts: polishing machine, feed rack and discharge rack.
