Planetary systems also do not require perfectly round tubes and instead can process tubes that are oval or have irregular shapes. Most significantly, it can grind bent tubes.
Machine Parameters:
No
Item
Specification
1
Available tube diameter
10–110 mm
2
Total motor power
3.94 kW
3
Abrasive Belt Motor power
2.2 kW
4
Rotating speed of the main motor
1200-3300 rpm
5
Speed of abrasive belt
7.8-18 m/s
6
Transfer wheel motor power
1.5 kW
7
Feeding system motor power
2 x 0.18 kW
8
Speed of feeding
0.7-4 m/min
9
Size of abrasive belts
(2)940 x 50 mm
Product Description:
Including machine part, electric control part, pneumatic part
1. The machine part consists of 1 set of polishing systems and a workpiece rotation system. The polishing system consists of a regulation system and a grinding head. The feeding system and rotation system consist of a roller, feeder, and motor drive system, (The feeding system is for straight roundtubes.)
2. The electric control part consists of a control cabinet and a frequency changer.
3. The pneumatic part consists of an air cylinder and pneumatic control components.

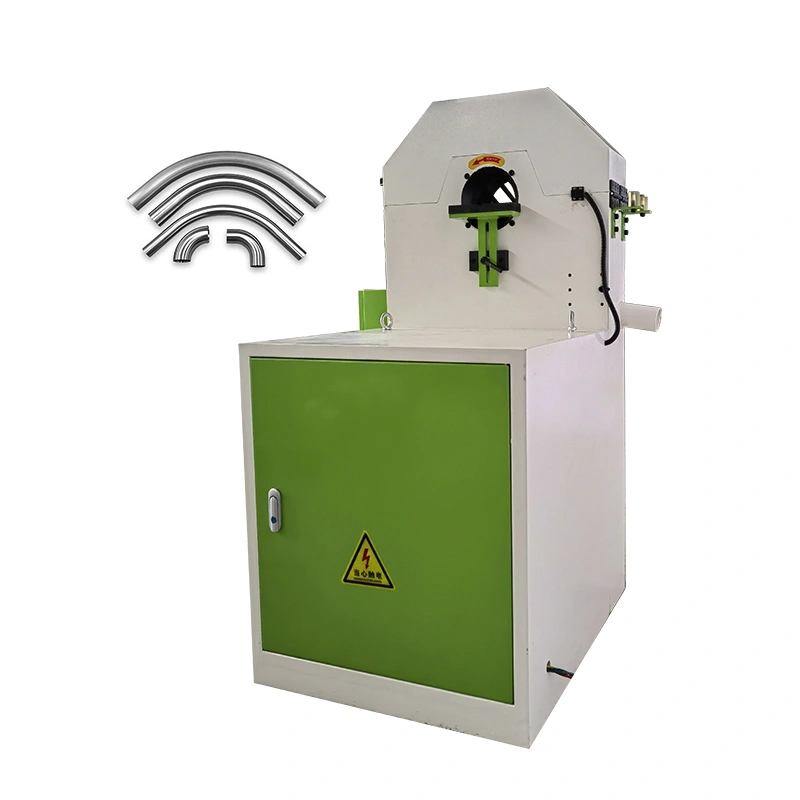

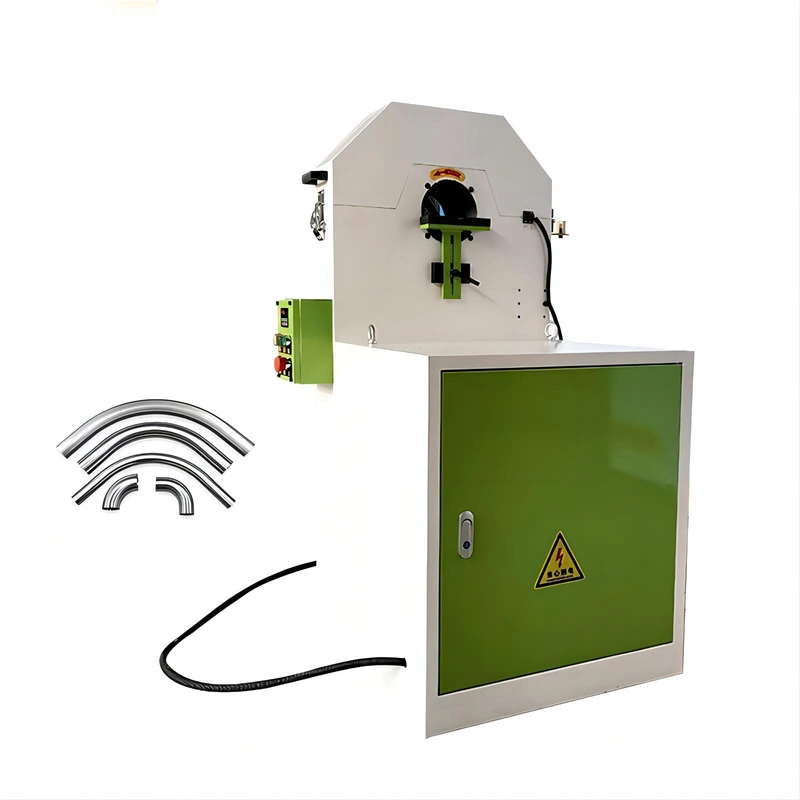

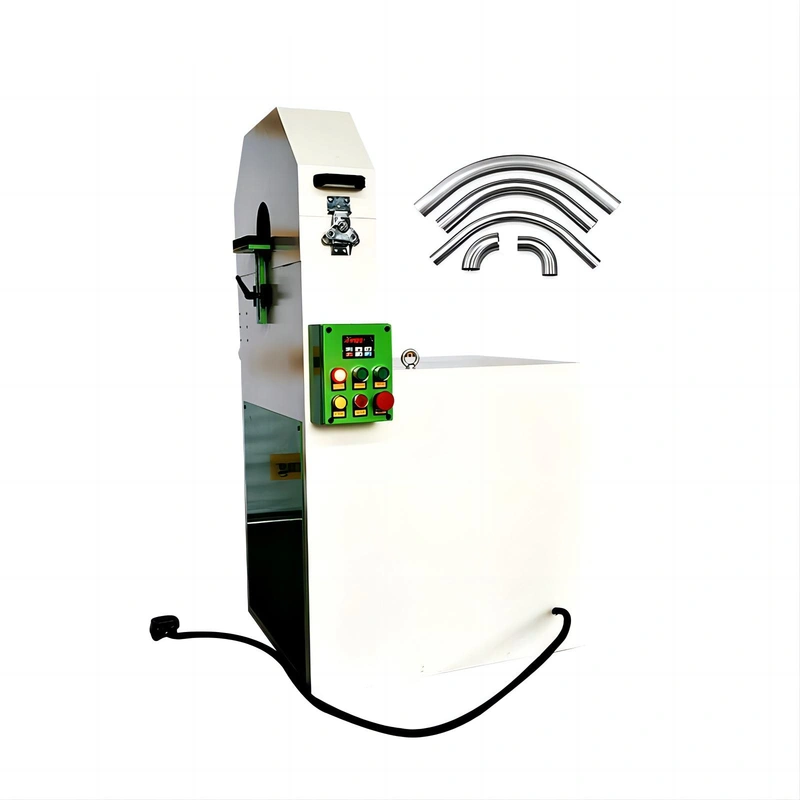

1. Planetary system
With the Planetary System, the abrasive belts rotate around the tube

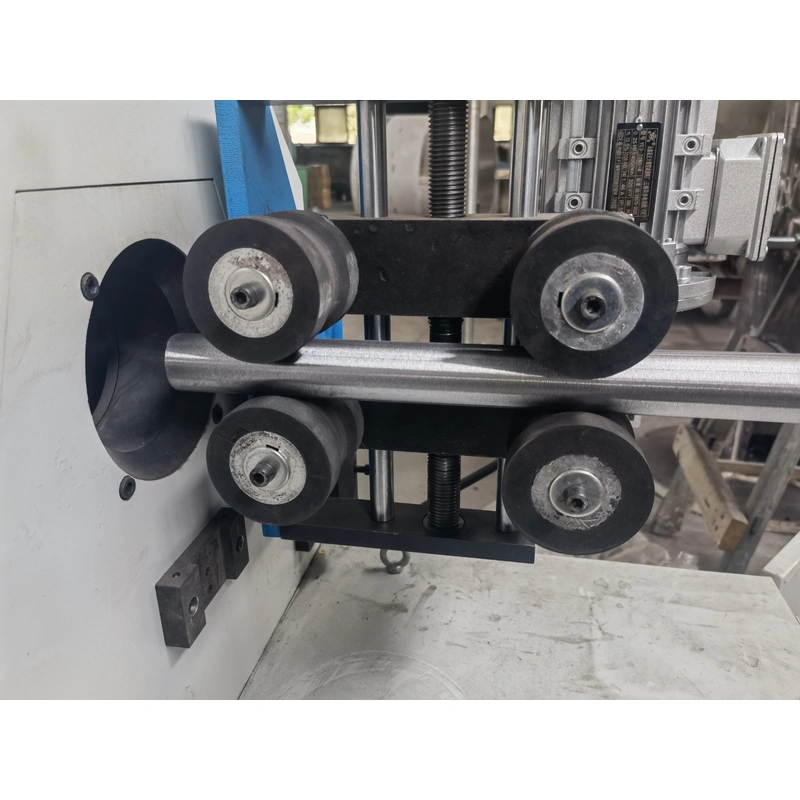

2. Auto feeding system
Automatic pipe polishing machine with feeding system.
3. Adjustable speed conveyor motor
An automatic feed with adjustable speed through inverter for straight tube
