High-pressure washing and high-temperature drying
Coating - Film spreader (Laminating for surface protection)
Key Features and Capabilities:
Process Types:
Dry Lines: Often (2-4)-head systems used for material preparation and removing defects.
Wet/Oil Lines: Use oil or liquid coolant for finer polishing, reducing heat distortion.
Finish Types: Capable of producing , #4 (brushed/satin - scrotch bright), hairline finishes.
Material Capabilities: Process stainless steel and aluminum.
Dimensions: Specialized lines can handle sheets up to 2100 wide and 12000mm long, including heavy plates.(Customized available)
Optional Features: Many lines include protective coating (PVC) application, high-pressure washing, and high-temperature drying.
Components of a Automatic Polishing Line:
Abrasive Belts/Brushes: wide belt (120-240-320 grit) for surface removal , hairline(decorative) finishing.
Control Panel: For adjusting speed, tension, and pressure.
Stacker(Handling Equipment): Conveyors for feeding, automatic loading/unloading systems, and removing sheets.
Dust/Residue Management: Systems to manage debris and ensure a clean, uniform finish.

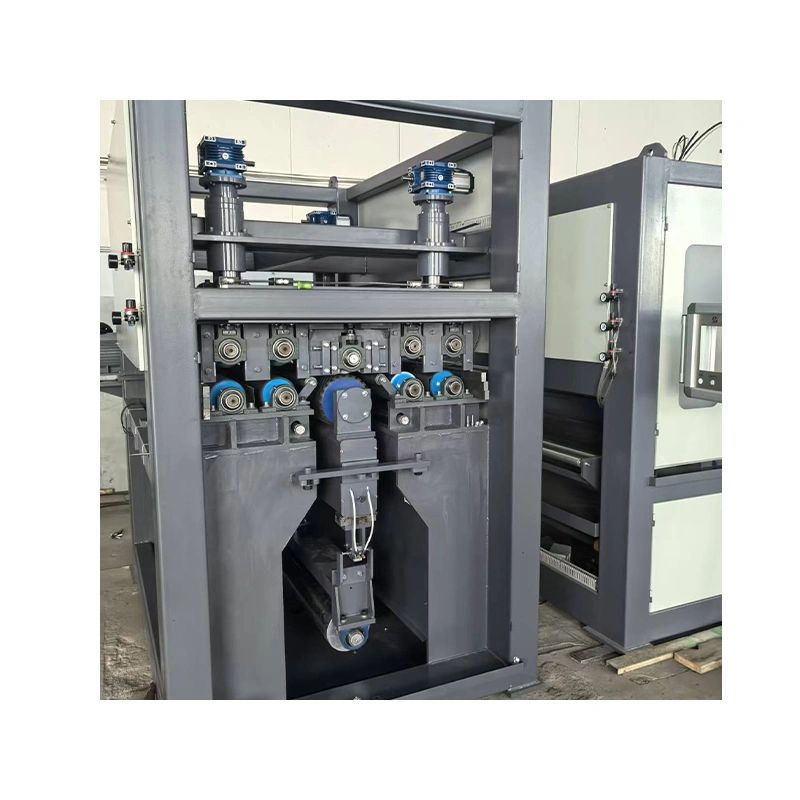

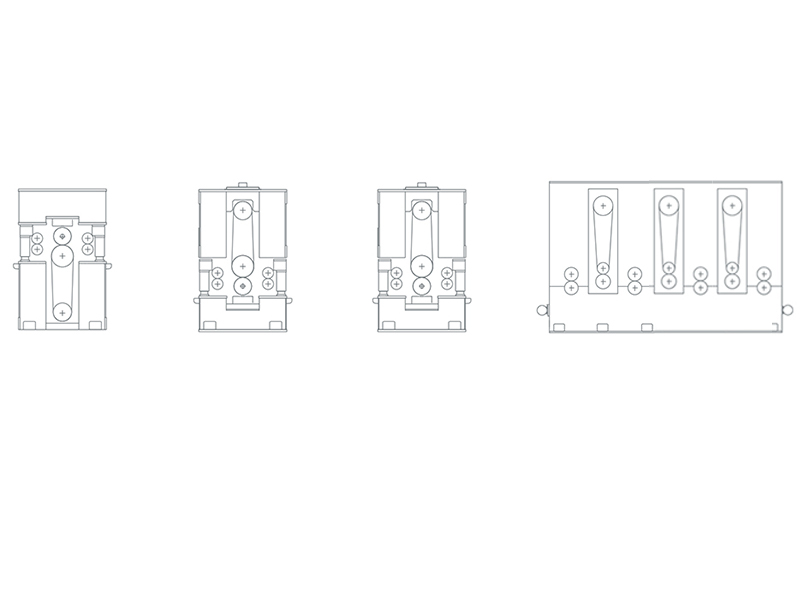

Wide Belt Station (For Grinding/Polishing):

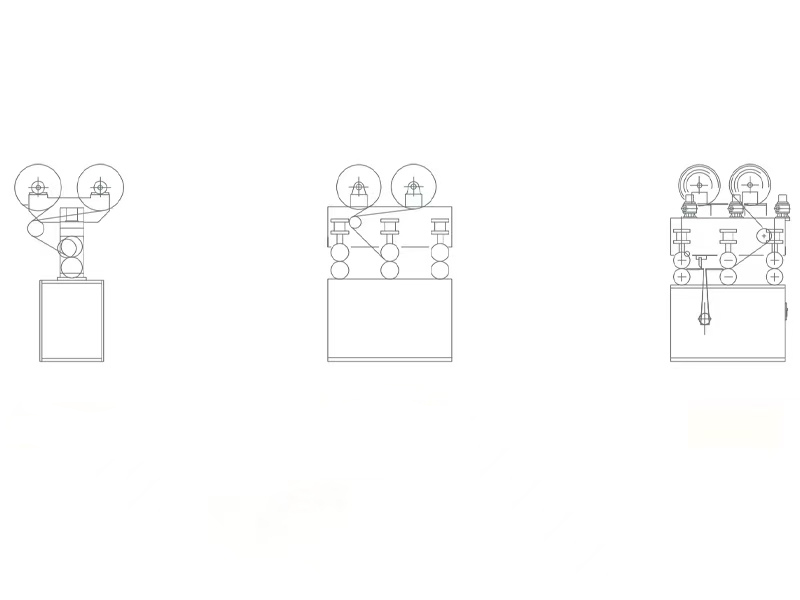

Laminating for surface protection :
Double-sided Automatic Film Laminating Machine
The frame is welded from national standard 125×125 H-beam steel.
The upper and lower conveying rubber rollers have a diameter of Φ125mm and are made of acid and alkali resistant nitrile butadiene rubber (NBR).
An independent control cabinet with a touch screen makes operation extremely simple; manual and automatic modes can be switched arbitrarily, offering flexibility and convenience.
A programmable PLC, controller, and infrared sensors precisely control the servo motor, planetary gearbox, and pneumatic components to automatically complete a series of actions such as panel position detection, feeding, film laminating, and film cutting.
Installed Power (kW)
Pneumatics
| Name | Model | Quantity |
|---|
| Air Source Triplet (FRL) | AC300-03 | 1 |
| Air Pressure Switch | SNS-110 | 1 |
| Pressure Reducing Valve | AR2000-02 | 1 |
| Solenoid Valve | 4V210-08 AC24V | 1 |
| Reversing Valve | TAC2-41P | 1 |
| Cylinder | SDA40×5 | 1 |
| Cylinder | SC125×50 | 1 |
| Pressure Gauge | m10×1 0-1 MPa | 1 |

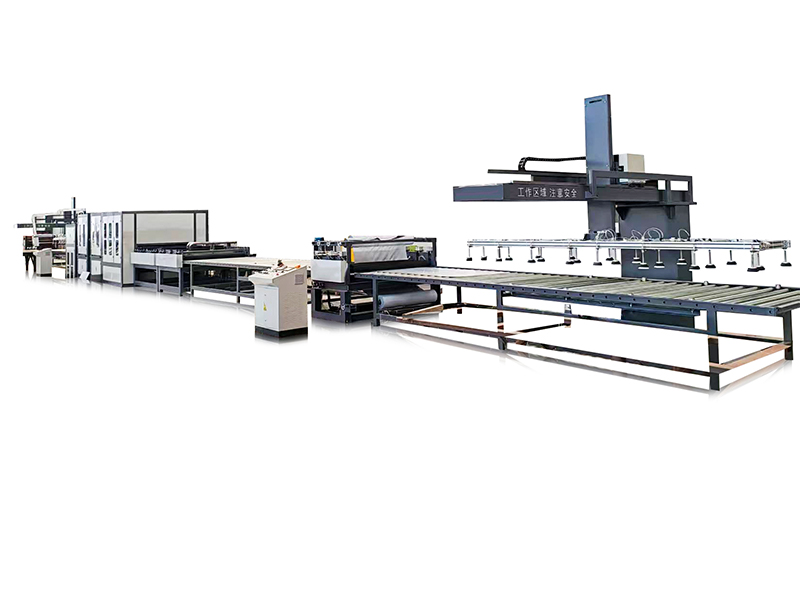

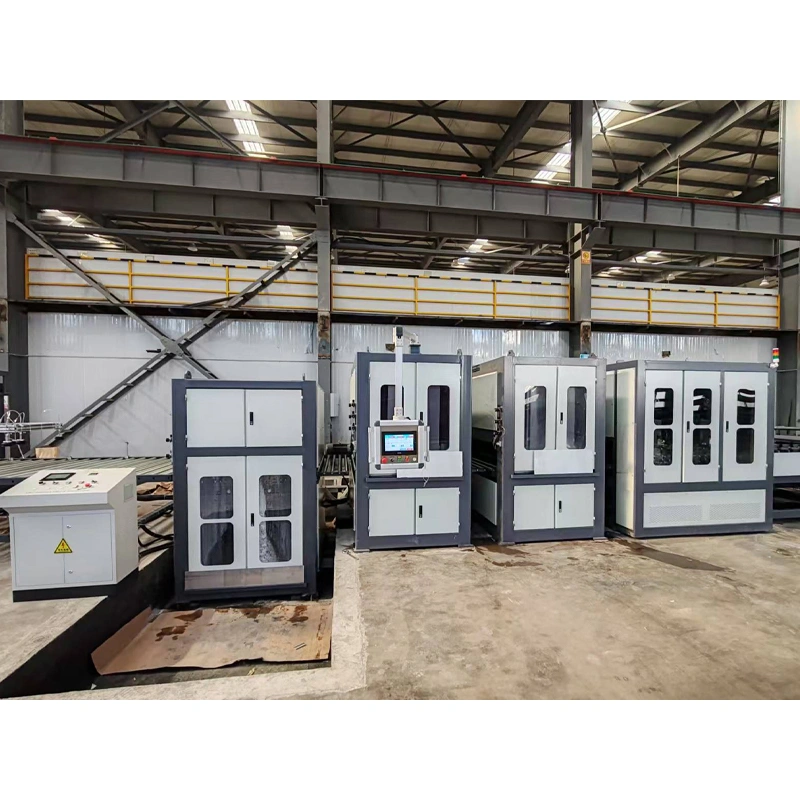

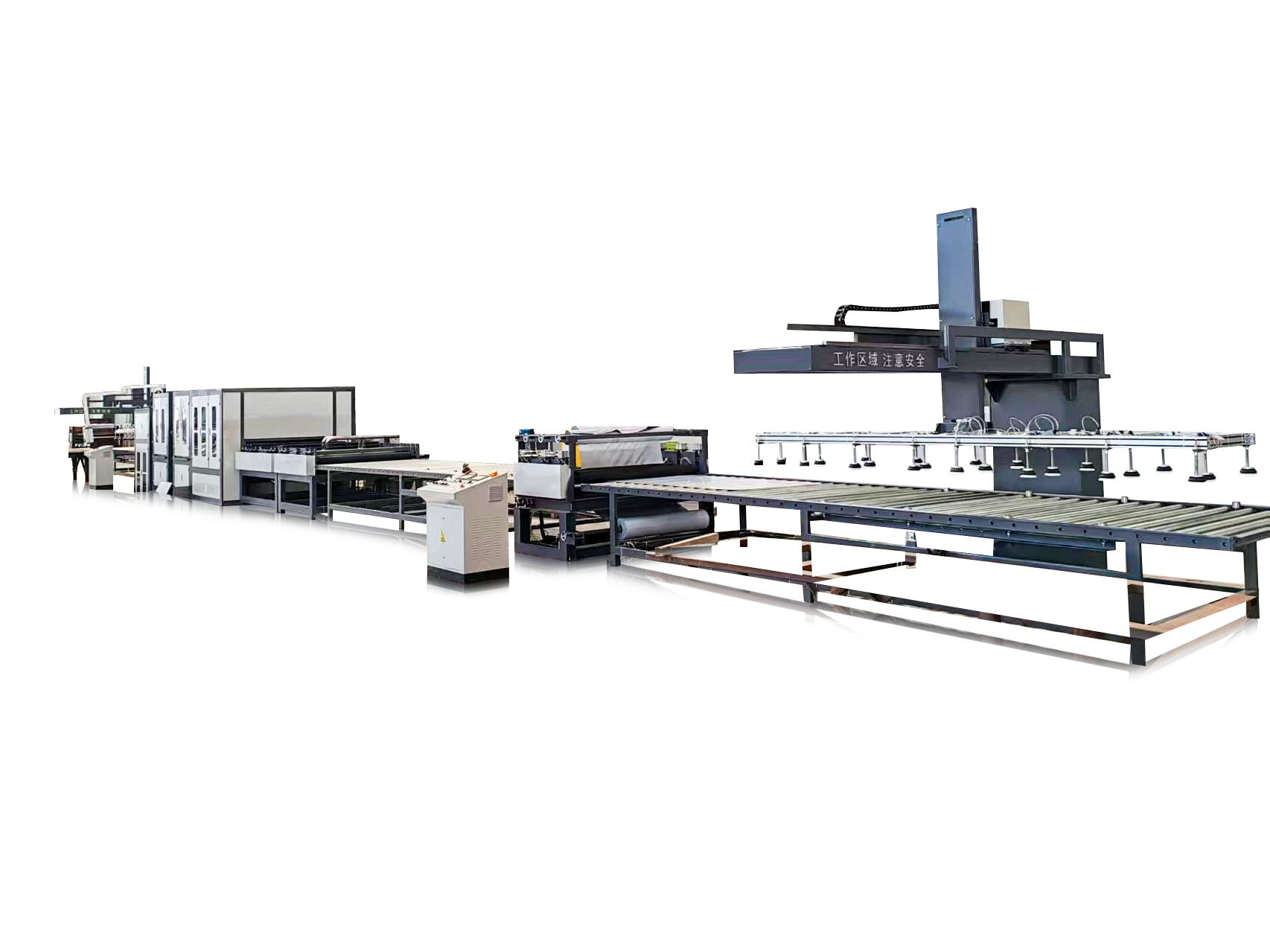

ADV sheet finishing line are designed for brushing aluminum, steel or other metal surfaces in production-intensive industrial environments. The high-speed running of wide belt abrasives and their automatic dressing enables them to maintain a uniform finish, reducing downtime and increasing overall line productivity. Each machine is prepared to be integrated with automatic loading/unloading systems and can be supplied with CNC control for real-time monitoring of process parameters.
If you would like to know the price of this machine or more about its features and specifications, please contact us now !
Custom Coil-To-Coil Wet Polishing Line (contact us)
ADV Grinding delivers advanced wet polish solutions for stainless steel coil polishing and aluminum. Our engineered coil polishing machines apply uniform surface finishes while enhancing corrosion resistance and dimensional integrity. Our wet polishing line ensures consistent, high-performance results with reduced rework and optimized downstream performance.
FAQ
Q: What are the links of the sheet metal production line?
A: The sheet metal production line consists of several key links that work together to create high-quality sheet metal products. The main links of the sheet metal production line include:
Stacker(Handling Equipment - loader/unloader)
Abrasive wide Belt Stations
Cleaning Section
Wet/Dry Operation
Film spreader for surface protection
Q: What is the polishing finish process?
A: Generally, polishing involves using an abrasive material to finish a metal surface. It aims to remove scratches and nicks from finished machined parts while improving their shine and luster. As a result of buffing, the polished surface achieves a hairline finish.
Q: What Our Stainless Steel Coil Polishing Line Delivers ?
A: Our wet polishing system enhances the appearance and durability of stainless steel and aluminum with uniform finishes tailored to your exact technical needs. Leveraging cutting-edge coil polishing machines, we deliver repeatable finishes that align with tight surface and dimensional tolerances—essential for end-use applications where visual quality and structural reliability matter.
Q: What is coil polishing and why is it important?
A: Coil polishing is a precision finishing process designed to improve the surface quality and appearance of metal coils, most commonly stainless steel or aluminum. It removes surface imperfections, enhances brightness, and produces a uniform, consistent finish across the entire coil width. This process plays a crucial role in boosting corrosion resistance, which extends the life of the material in challenging environments. It also contributes to increased product value by improving surface uniformity and reducing the need for additional processing. Coil polishing is essential for meeting stringent aesthetic and performance specifications across industries such as architecture, transportation, appliances, and food processing equipment.
