ADV 508-M300 series
Manual deburring machine with vacuum table
Deslagging
Deburring
Edge Rounding
Oxide layer removal
Polishing
Parameter:
Product name | Flexible swing arm manual deburring and edge rounding machine |
| 300*300 mm |
| 0.75 kw |
Number of heads | 2 |
Head types | Disc brush/polishing pad |
Dust extraction capacity required | 1000m3/h |
Swing arm span | 1500 mm*360° |
Maximum part dimension | 1200*750 mm |
Available thickness range | 1-150 mm |
Total power | 4.5 kw |

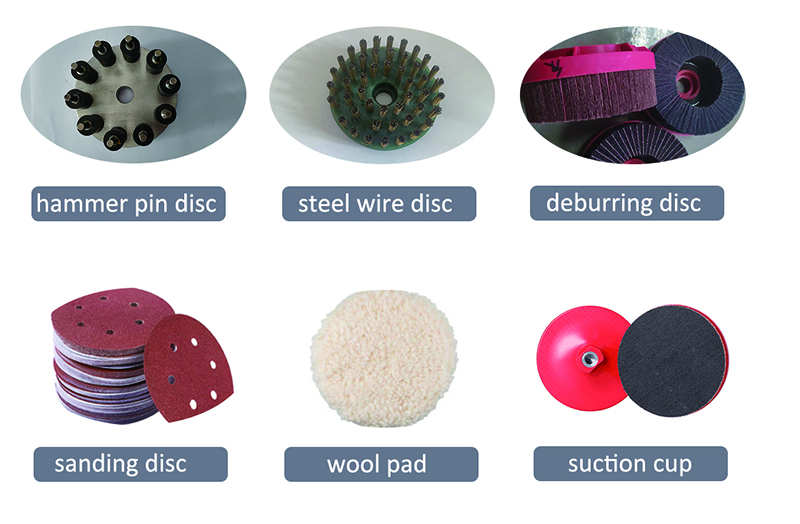

Available abrasives:
Hammer pin disc: remove heavy slag and dross from plasma or flame cut sheet metal parts.
Steel wire disc: remove the oxide layer on the cutting surface
Deburring disc: remove minor burrs and edge rounding
Sanding disc: remove rust and burrs on the metal surface
Wool pad: High gloss, mirror effect
Suction cup: Self-adhesive design allows for quicker and easier installation and removal of sandpaper and wool pads

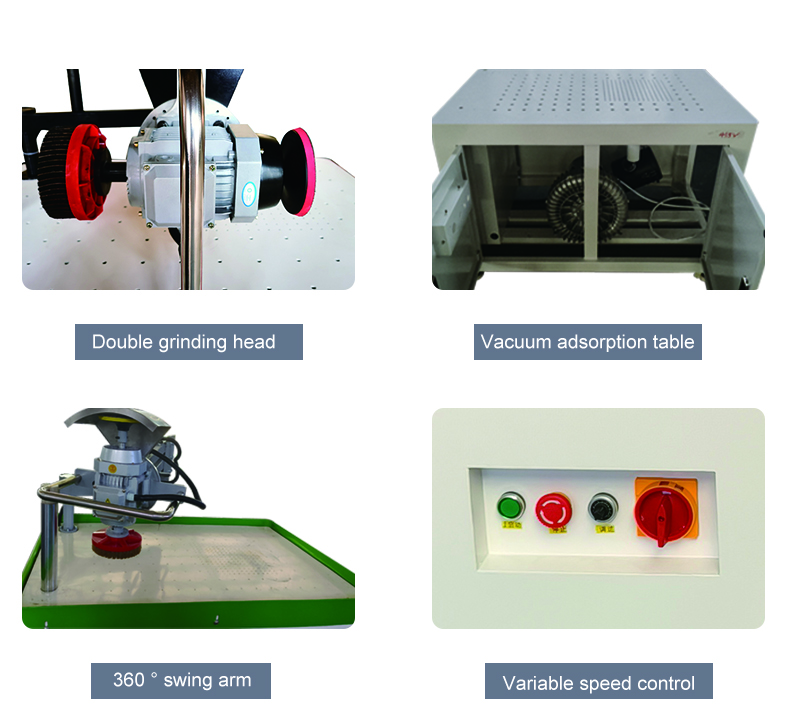

Function of ADV 508-M300 deburring machine
Manual M300 series with freely adjustable speed
Easy-to-use with swing arm and weight compensation
For laser-cut, plasma-cut and punched parts
Strong adsorptive force, satisfy smaller parts
Rotatable head with deburring and edge rounding tool
The grinding head can be tilted 180°
