Heavy slag removal machine for plasma, flame cutting parts
Deslagging
Deburring
Parameter:
Model
ADV 508-HR800
ADV 508-HR1100
ADV 508-HR1300
ADV 508-HR1500
Effective processing width (mm)
30-800
30-1100
30-1300
30-1500
Processing thickness (mm)
0.5-100
0.5-100
0.5-100
0.5-100
Minimum workpiece size
Magnetic suction 30*30 mm
Abrasive belt linear speed (m/s)
3-15
3-15
3-15
3-15
Abrasive belt size (mm)
2000*820
2200*1120
2200*1320
2200*1520
Conveying speed (m/s)
0.5-7
0.5-7
0.5-7
0.5-7
Hammerhead speed (r/s)
5-12
5-12
5-12
5-12
Hammerhead motor power
2.2 kw*2
4 kw*2
5.5 kw*2
7.5 kw*2
Abrasive belt motor power
15 kw
18.5 kw
22 kw
22 kw
Conveying motor power
2.2 kw
2.2 kw
2.2 kw
2.2 kw
Hammer pin size
Φ8*25*58mm
Φ8*25*58mm
Φ8*25*58mm
Φ8*25*58mm

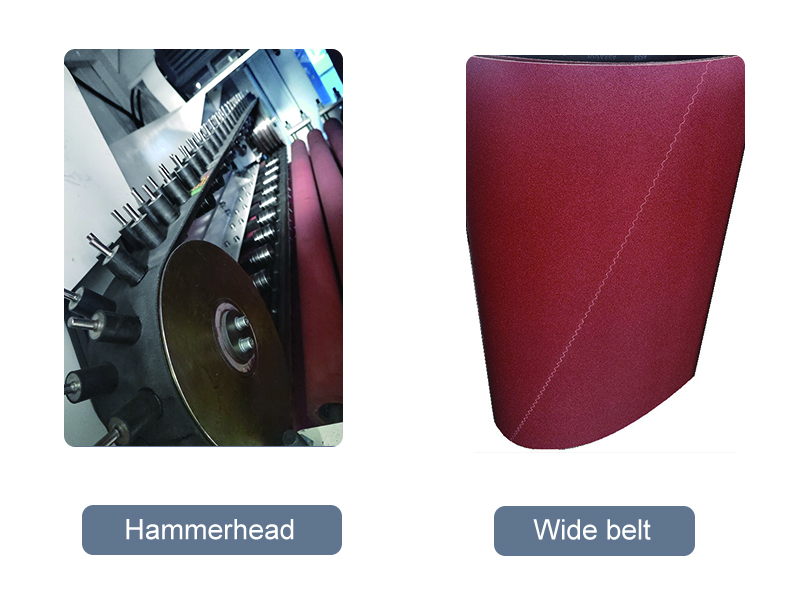

Available abrasives:
Hammerhead: The cleaning hammer rotates at high speed, knocks on the workpiece surface, cleans the workpiece surface and surrounding contours, and removes slag from the edge of the metal plate
Wide belt: Deburring and rust removal of large areas of metal parts surfaces
Function of ADV 508-HR deslagging machine
Efficient removal of heavy slag on the surface of parts
The surface of parts shall be polished after treatment
Blunt the inner and outer contour of the parts
Strong magnetic adsorption force, satisfy smaller parts
Automatic compensation for abrasive material
Abrasive replacement remind

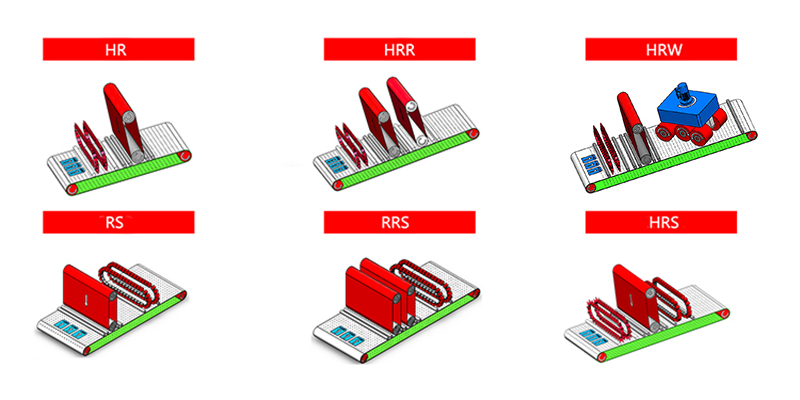

Available model:
This equipment is a combination of hammerhead and abrasive belt, mainly used for removing heavy slag and deburring. This equipment is equipped with 2 sets of hammerheads. The hammer pins rotate at high speed to remove the slag on the edge and inside the hole of the workpiece. Finally, the abrasive belt station removes burrs and other defects on the surface of the workpieces
