3-in-1 Industrial Deburring Edge Rounding Machine

ADV 508-RYW (Wide belt & Disc brush & Rotary brush)

ADV GRINDING offers automated multifunction deburring polishing machines, so you can streamline your production process and improve output quality. high flexibility, consistent process reliability and high part quality: this is how you save time and money with the right deburring technology.

Description

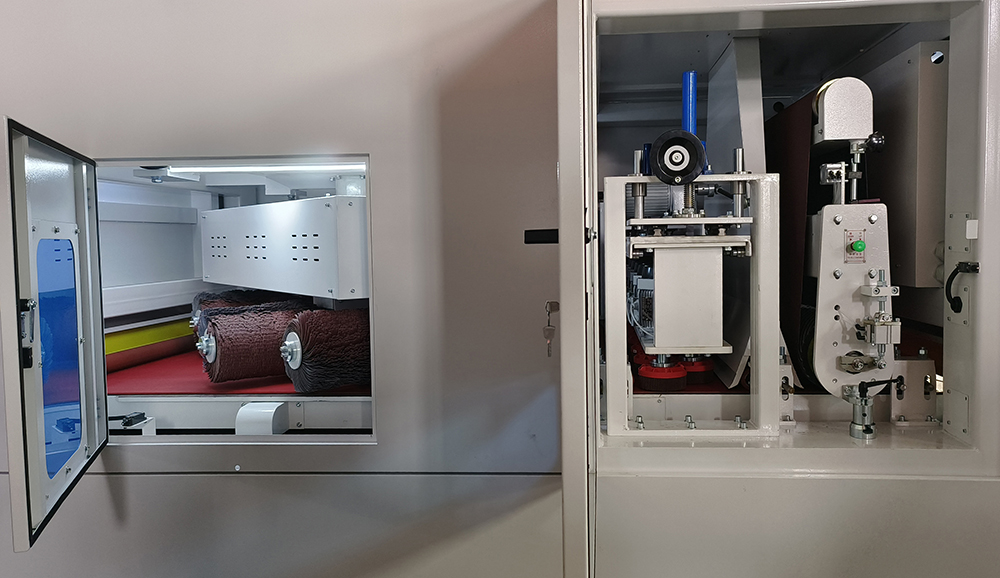

ADV 508-RYW 3-in-1 metal deburring polishing machine

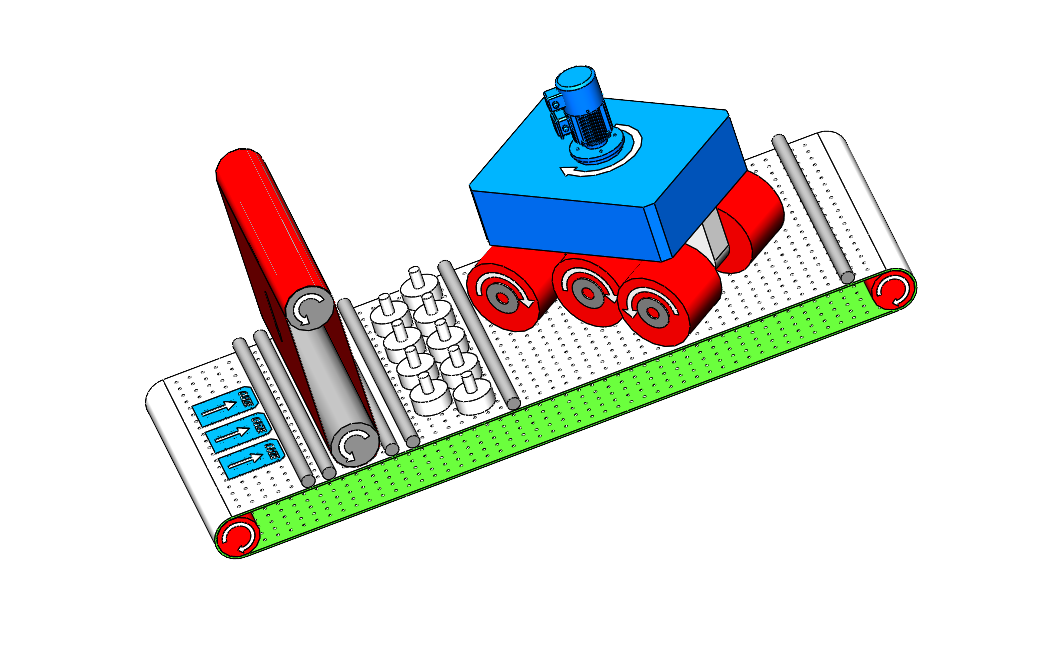

1. The main structure of the machine is a combination of an abrasive belt ,a group of 11 disc brushes and a group of 8pcs of rotary brushes for deburring and grinding. Each station can be used independently or in combination, suitable for variety products with variety processes needed by factories.

2.The ADV 508-RYW series is used for deburring, edge rounding, laser oxide removal and surface uniform random lines of various sheet metal parts

3. The standard available width is 630mm, 800mm, 1100mm, 1300mm, 1500mm, or customized.

4. The deburring machine can process parts with a minimum size of 50mm*50mm(with a vacuum table).

5. This cohesive solution not only simplifies the manufacturing process, but also when using multiple heads, it can remove deburr, edge round and surface finish in one pass

Parameters:

No	Item	Specification
1	Model	ADV 508-RYW1300
2	Available width	30-1300mm
3	Available thickness	0.5-100mm
4	Belt speed	1-16m/s Frequency control speed
5	Feed speed	0.5-8m/min Frequency speed
6	Belt size	2200*1320mm
7	Vac-sorb motor	15KW(8500-10000pa, Frequency control)
8	Belt motor power	22KW(Frequency control)
9	Disc brush motor power	11*1.5 kw(Frequency control)
10	Disc brush swing motor power	1.5 kw
11	Rotary brush motor power	4*4 kw(Frequency control)
12	Rotating brush rotating motor power	4 kw(Frequency control)
13	Feed motor power	4kw
14	Total motor power	80 kw
15	Machine size	430022002300mm
