The ADV 508-RWR series is used for deburring, edge rounding, and hairline polishing of various sheet metal parts.
Parameters: No
Item
Specification
1
Model
ADV 508-RWR800
2
Available width
30-800mm
3
Available thickness
0.5-100mm
4
Feed speed
1-5m/min Frequency speed
5
Minimum processing size ≥30*30mm (magnet or vacuum adsorption) 6
Main motor of abrasive belt (R) No 1
15 Kw 7
Rotary brush motor power(W) No 2 2.2 Kw*2 8
Main motor of abrasive belt (R) No 3
15 Kw 9
Vacuum unit motor 15 kw 10
Abrasive belt size
1900*820 mm 11
Rotary brush size
300*300*40 mm 12 Total connecting power 53.9 Kw 13 Machine weight 3500 kg
The standard available width is 630mm, 800mm, 1000mm, 1100mm, 1300mm, 1400mm, or customized.
More Info

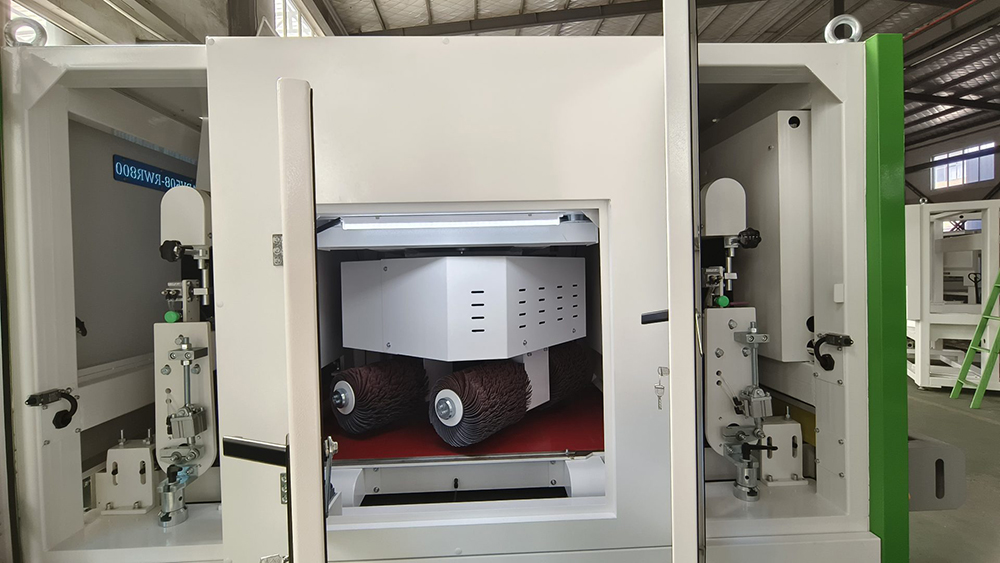

RWR internal station diagram:

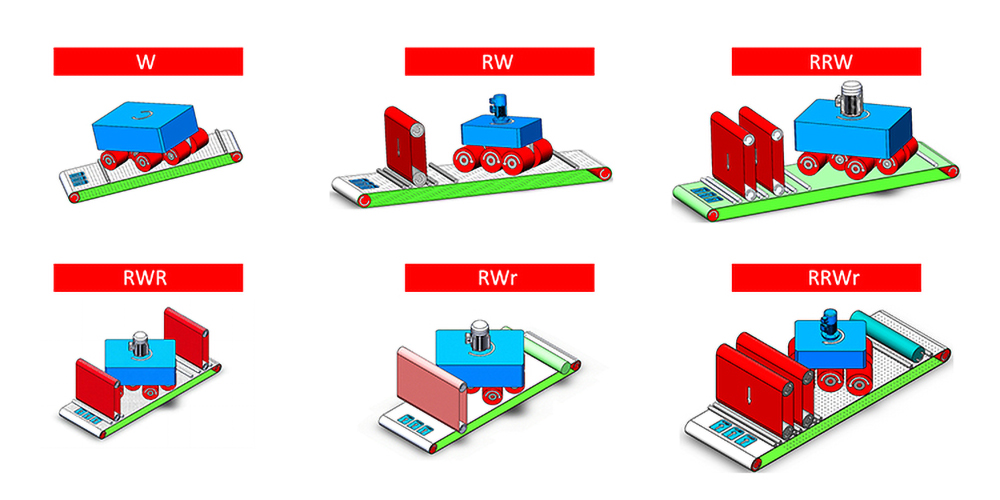

RW combinations that can be customized according to customer requirements
Function of RWR series equipment
Remove silhouette edge hard burr
Remove cutting slag
Edge rounding of outside and inside profile more uniforn
Strong adsorptive force, satisfy smaller parts
Automatic compensation for abrasive material
Abrasive replacement remind
Metal removal oxide layer, surface brushed, and line grain finish
