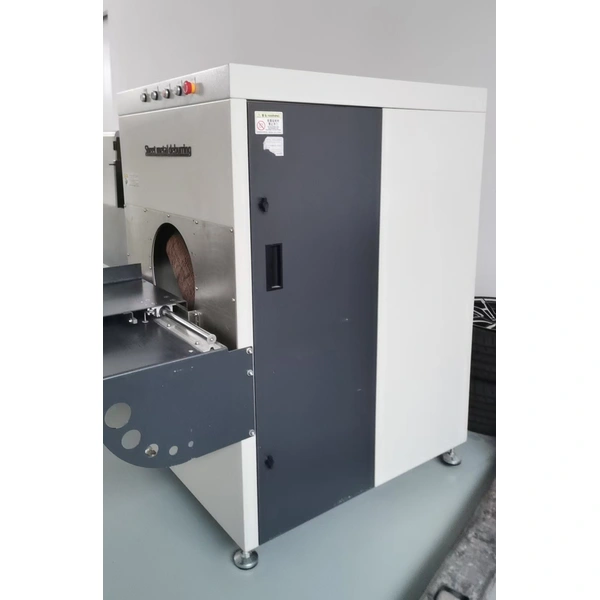

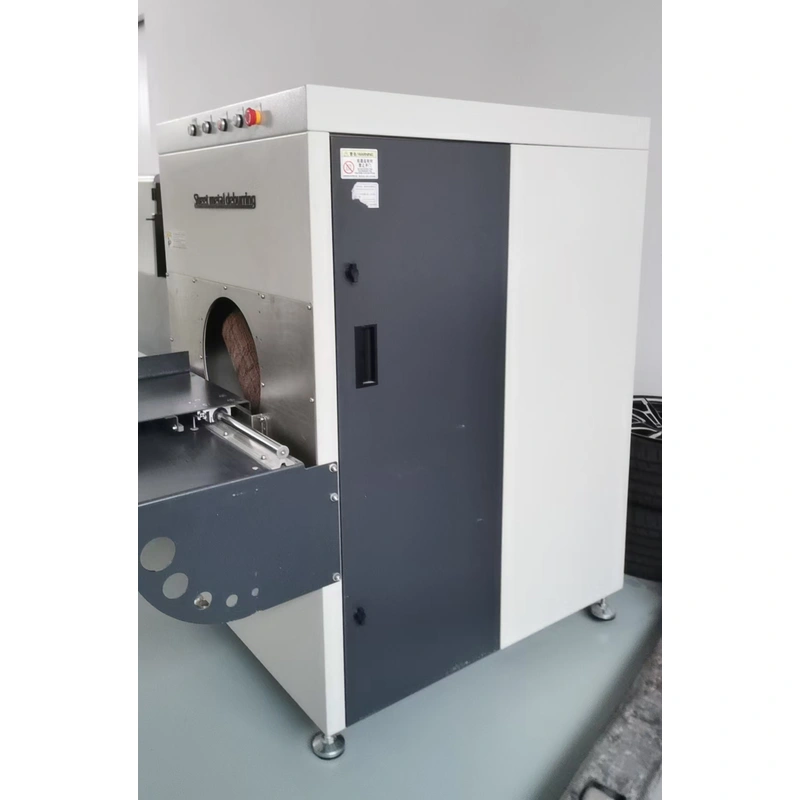

Metal profile tube ends deburring machine

After laser cutting or saw cutting, the cutting edges of tubes and profiles will leave sharp burrs. This equipment can remove burrs from inside and outside the tube at the same time. The unique single brush revolution and rotation structure can effectively remove the sharp edges of various profiles and make the contours round and smooth. It can also remove the laser oxide layer from the cutting surface, with simple operation and obvious effect.

Description

Pipe deburring machine | Profile


Applicable materials

Metal profiles, pipes

Workstation combination

Single-wheel rotation + revolution mechanism

Conveying and fixing

Pneumatic chuck, automatic feeding

Processing effect

Deburring and oxide removal of cutting end surface, smooth and rounded contour



Parameter:


Working range: Φ15-Φ200mm

Total power: 4kW (Dust collector not included)

Rated Voltage: 0.6-0.8Mpa

Wire brush speed: 28r/s

Weight 600kG


Sample before and after deburring:


The function of tube deburring machine


1. Metal profile cutting ends deburring

2. Remove the sharp edge of various profiles

3. Automatic clamping, feeding, grinding functions

4. Free setting of clamping tightness, feeding speed and grinding time

5. Grinding for profile with different cutting angle

6. Different abrasives available for different part materials
