PLC sheet metal deburring machine for laser cutting parts
1. In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of the workpiece, so it is particularly important to choose the correct deburring machine.
2. The ADV 508-RW series is used for deburring, edge rounding, and laser oxide removal of various sheet metal parts.(Abrasive belt+Rotary brush).
3. The standard available width is 630mm, 800mm, 1000mm, 1100mm, 1300mm, 1400mm, or customized.
4. The deburring machine can process parts with a minimum size of 30mm*30mm(with a vacuum table).
ADV 508-RW metal deburring machine with rotary brush
The RW series is the perfect dry type machine for deburring, edge rounding, finishing, and laser oxide removal of various sheet metal parts. Please tell us your material max width, then we can recommend the suitable size to you.
R station: Remove rust, deburr and fine surface grinding.
W station: Edges rounding function for workpieces such as laser cutting, shearing, stamping blanking, waterjet cutting, etc. The radius can be 2.0mm

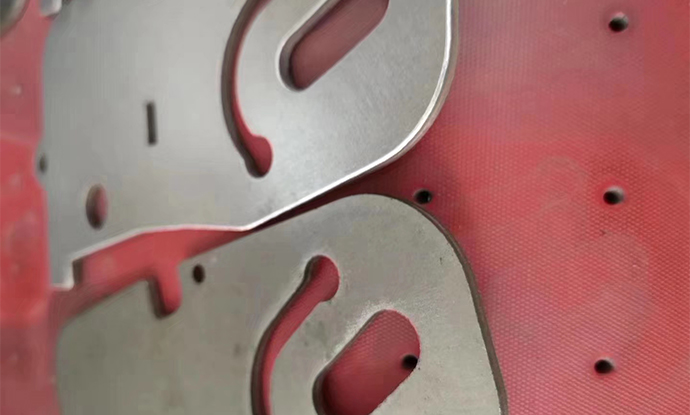

Machine Photos
Functions and advantages of deburring machine：
1. Pneumatically controlled eccentric sanding roller, which can be lifted and lowered independently. When equipment fails, all sanding rollers automatic lifting to protect the material from damage;
2. Special customized type tensioning cylinder with a large bore and high stability;
3. Independent bearing hanging plate, easy to adjust;
4. The automatic thickness measurement function, automatically locate the thickness of the plate;
5. Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
6. The deburring machine can be used in the wet process or dry process.
7. Convenient operation, touch screen operation panel, LED light source inside the equipment, easy to observe the processing status of the workpiece.
8. The automatic deburring machine has different combinations of grinding heads, which are for different requirements of workpieces.For laser cutting stamping parts，it can do deoxidizing, grinding, deburring, polishing and edge rounding.
