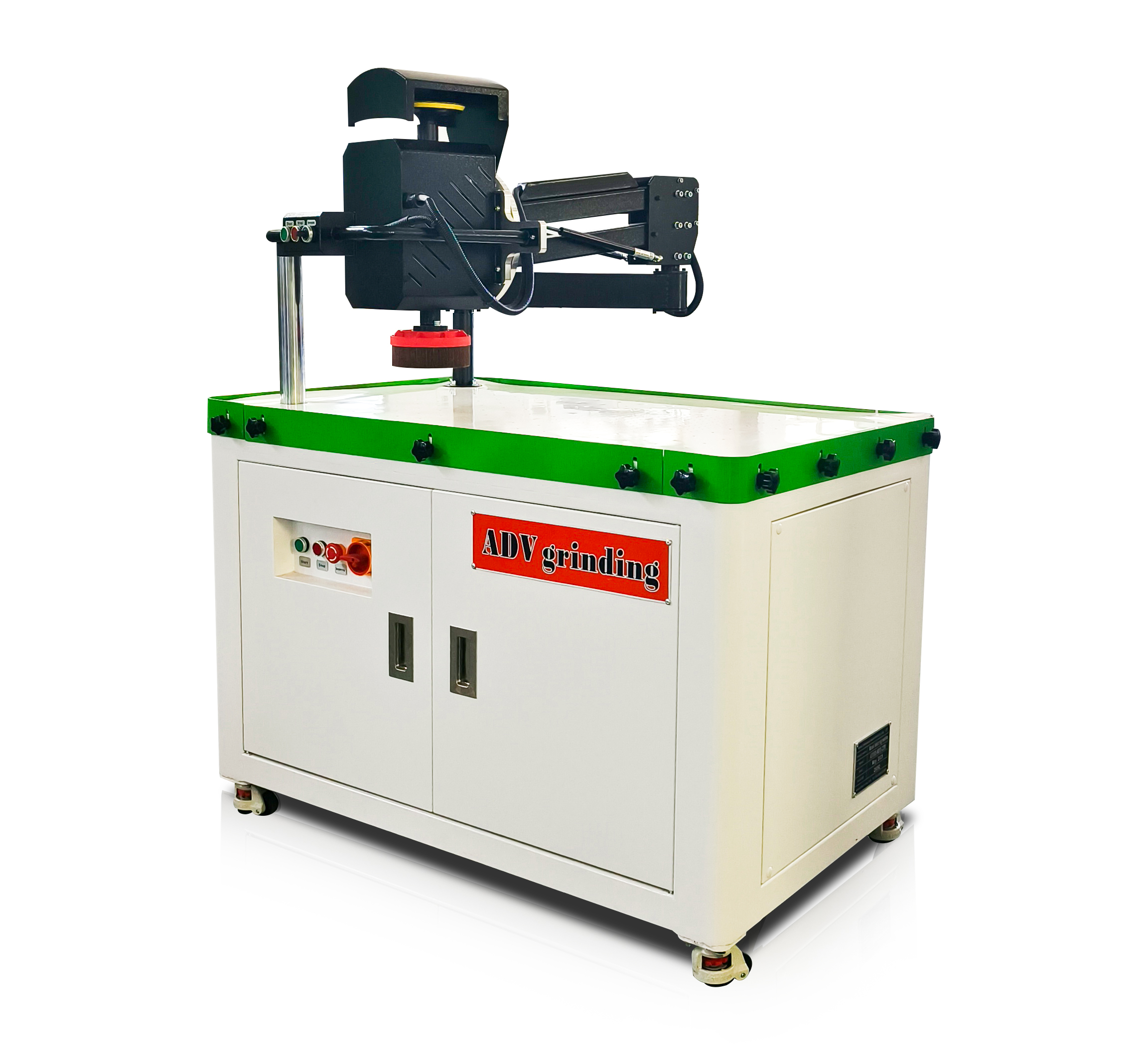

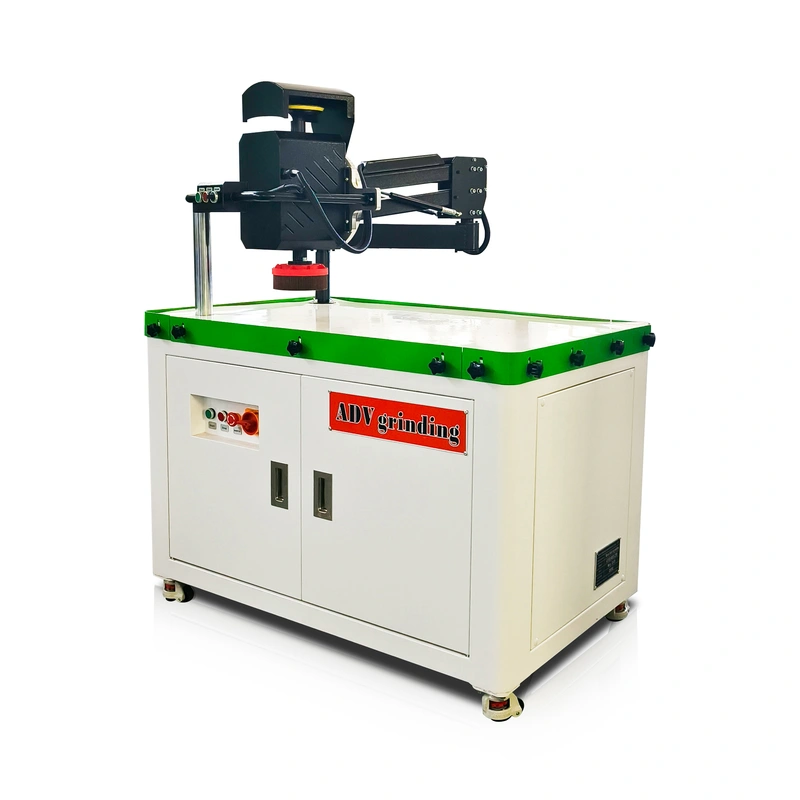

ADV M300 Deburring Machine - Provide You With A Range Of Deburring Solutions
Use this precision-crafted machine to grind, deburr, and polish metal pieces up to four times faster than by hand!

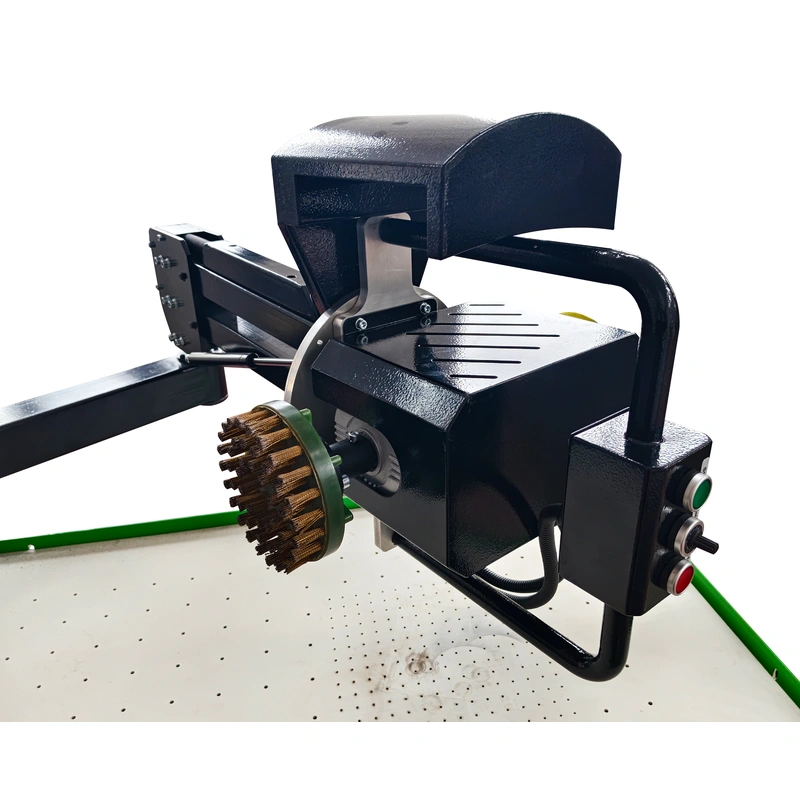

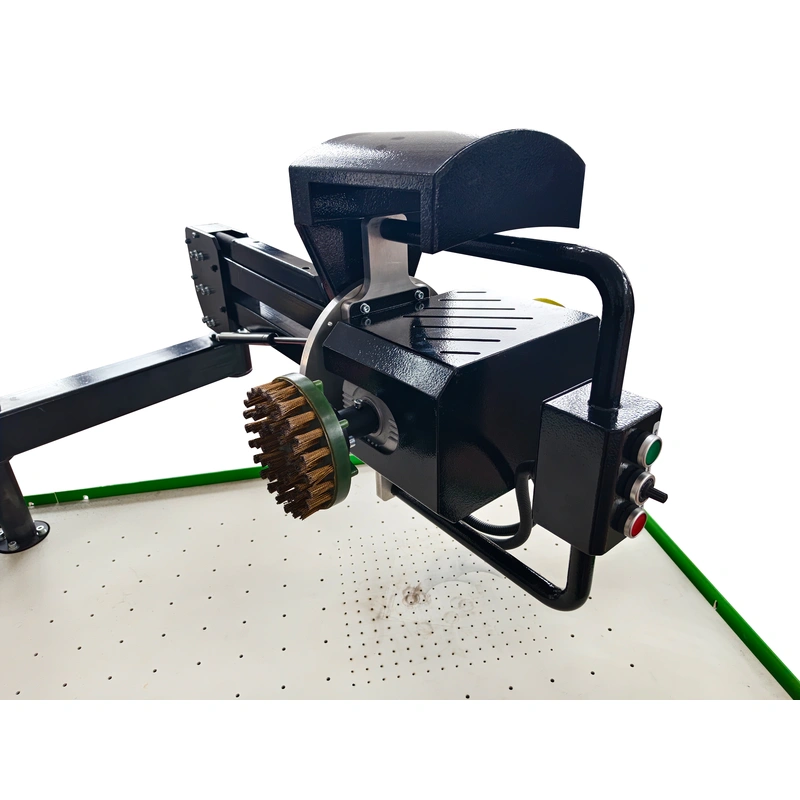

With the four-point articulating arm, the single grinding head allows for two different sanding accessories to be mounted at the same time. Rotate the head 180 degrees to quickly change between grinding metal parts and removing heavy burrs, with the other side brushing and rounding metal to a smooth finish.
Traditionally, deburring metal parts from laser, plasma, or punch operations meant choosing between time-consuming hand tools or investing in expensive through-feed systems. The ADV-M300 deburring machine steps in as a middle-ground option, offering a semi-automatic approach that speeds up your workflow without the high price tag.
Q: Why ADV M300 Deburring Machine make most users feel at ease ?

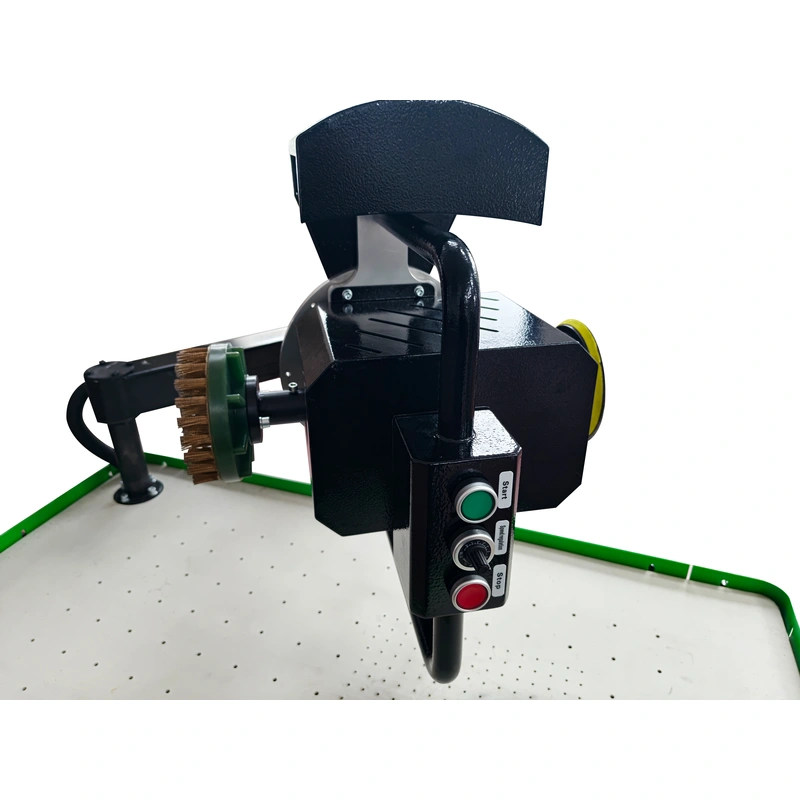

You’ll appreciate how effortlessly the pneumatic-floating grinding head glides over the workpiece—simply press down lightly, and the system delivers just the right grinding pressure. The vacuum-chuck worktable holds parts flat without any clamps, so you can focus on the grind instead of fixturing. Depending on your parts, you can configure the grinder with the optimal number of abrasive disks, and the dual-head setup—one coarse, one fine—swaps heads in just two seconds. Even if your component exceeds the table’s footprint, as long as it’s within the arm’s swing radius, you can still grind it with precision.

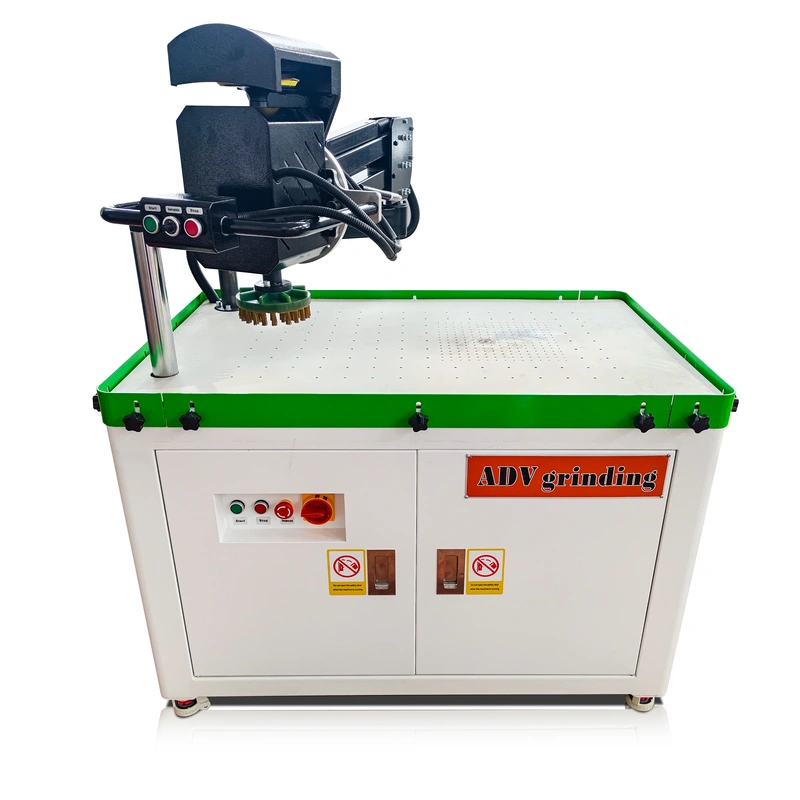

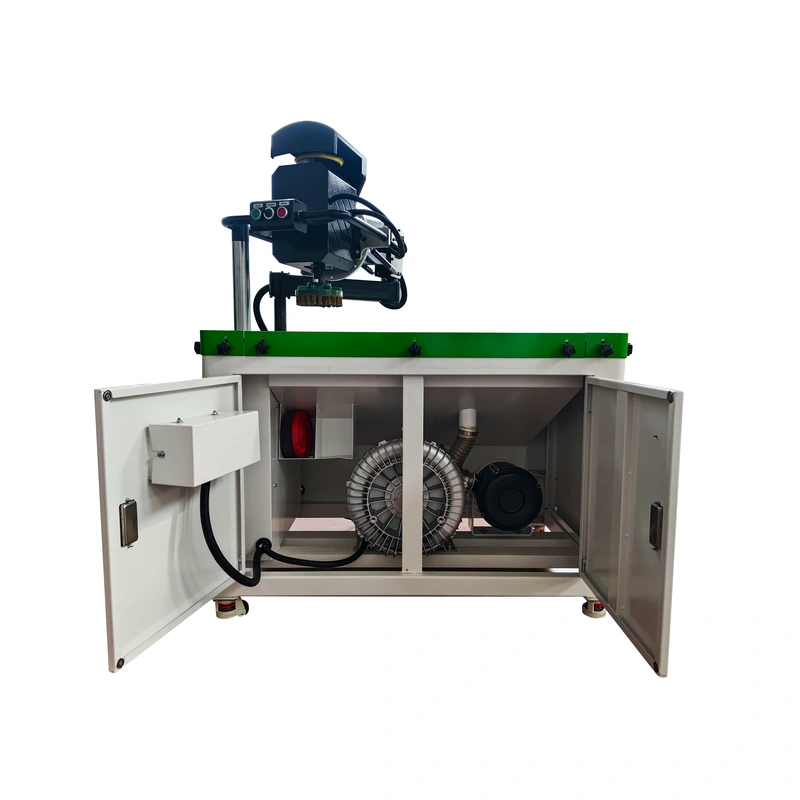

The high-friction table keeps larger parts in place as you work, and the vacuum hold-down prevents smaller items from moving during grinding, deburring, and polishing.
The 4" high adjustable table sides provide space for articulating arm movement and keep removed material in a concentrated area.

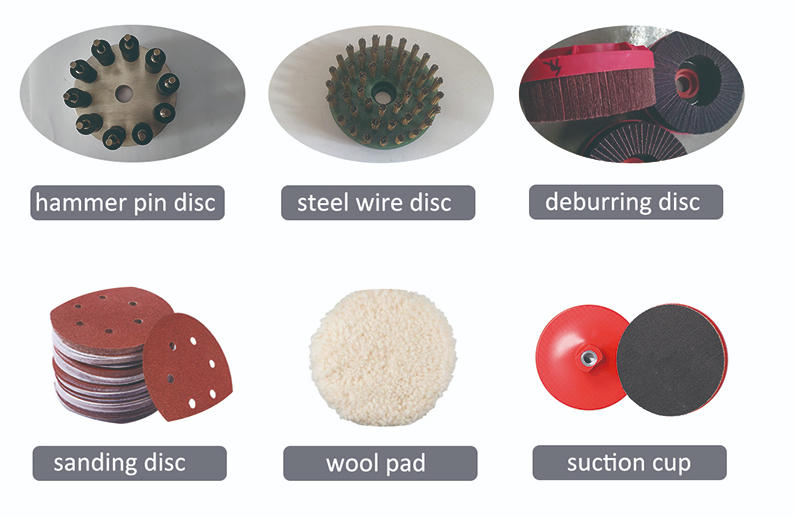

There are many discs, brushes, and fastener systems available.
The ADV M300 manual was written by our CHINA-based Technical Documentation Department and is packed with useful information.
Q: Can I adjust grinding speed and pressure to match different materials?
Absolutely. The M300-Pro Manual Deburring Machine comes with a servo-driven motor . You choose your desired RPM range—whether you’re working on tough stainless, mild steel, or soft aluminum—and the machine automatically maintains that speed under load. If you need lighter pressure for fragile parts, simply guide the pneumatic-floating head with a gentle touch; if you’re grinding heavy burrs, press down slightly more and the head compensates by delivering the right amount of torque. In other words, you get precise control over both speed and pressure for high-quality results on any metal.
M300 Deburring Machine SPECIFICATIONS:
Item
ADV508-M300
Available worktable
1200*750mm
Vacuum working area
300*300mm
Grindingheadmotor
1.1kw
Mechanicalpolishing arm
1200mm,360°
Discbrushhead
2
Available width
0.5-260mm
Vacuum Sorbpower
3kW
Discbrush size
Φ150mm
φ165mm
Totalmotorpower
4.1kw
Machine dimension
1300*900*1500mm
Machine weight
400kg
FEATURES:
Four-point articulating arm with weight compensation
